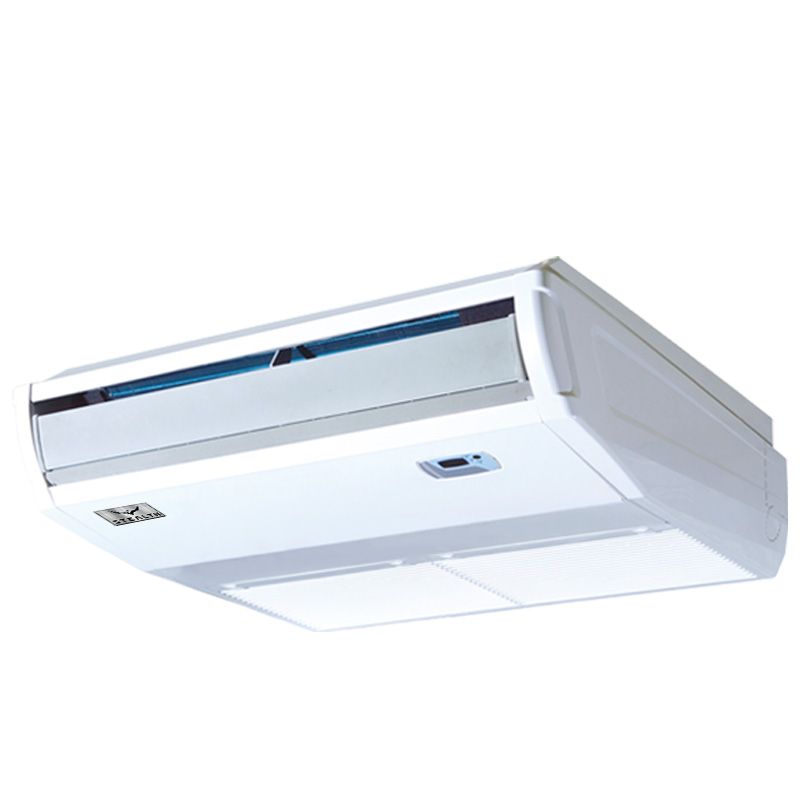

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.
Please note: This air handler must be connected to an outdoor condenser in order to function.
24,000 BTU Stealth Designer Floor/Ceiling Mount Single Zone Air Handler | |
---|---|
SKU | SC-24FM-UM |
Weight (in lbs) | 88.000000 |
Brand/Manufacturer | Stealth |
HSPF | 10 |
Cooling BTU | 23,800 |
Heating BTU | 27,200 |
Maximum CFM | 705 CFM |
Decibel Level (dBA) | 40 dB(A) |
Electric Heat | Heat Pump |
Energy Star | No |
Refrigerant | R410A |
EER | 10.7 |
Compressor Type | Rotary |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 40 |
Min. Breaker Size | 23.4 |
BTU/Tonnage | 24,000 BTU/2 Ton |
Mini-Split Type | Low Wall/Ceiling |
Min/Max Outdoor Temp for Heating | 0F - 75F |
Min/Max Outdoor Temp for Cooling | 0F - 118F |
Zone Compatibility | Single Zone |
Height | 27.5" |
Width | 48.0" |
Depth | 08.9" |
Warranty | 14 year compressor, 5 year parts with online registration |
