24,000 BTU Infinity Living DIYCOOL Platinum 22.7 SEER2 Single Zone Wall Mount Mini Split Heat Pump Condenser - R454B |230V

SAVE $1,733.84

Required Fields *

By

Infinity Living

In stock

Model

EZ-24ZPL-HP230B / EZ-24W-MB

ID

209664

Rating:
100% of 100
In Stock - Ready to Ship
Was $4,953.83
Your Low Price $3,219.99

Free Shipping
  • Do-It-Yourself EZ Connect Installation
  • Heating & Cooling
  • Quiet Operation
  • Perfect for one 1,000-1,500 sq ft Room/Zone
  • Platinum Includes 25' Pre-Charged Line Set & Higher Efficiency
  • Wi-Fi & Smartphone App Capabilities
Customize 24,000 BTU Infinity Living DIYCOOL Platinum 22.7 SEER2 Single Zone Wall Mount Mini Split Heat Pump Condenser - R454B |230V
24,000 BTU Infinity Living Single Zone Condenser - R454B
24,000 BTU Infinity Living Single Zone Condenser - R454B
24,000 BTU Infinity Living Single Zone Condenser - R454B   + $2,279.99
24,000 BTU Infinity Living EZ Connect Wall Mount Air Handler - R454B
24,000 BTU Infinity Living EZ Connect Wall Mount Air Handler - R454B   + $940.00
Equipment Pad
Installation Kit for Condensers

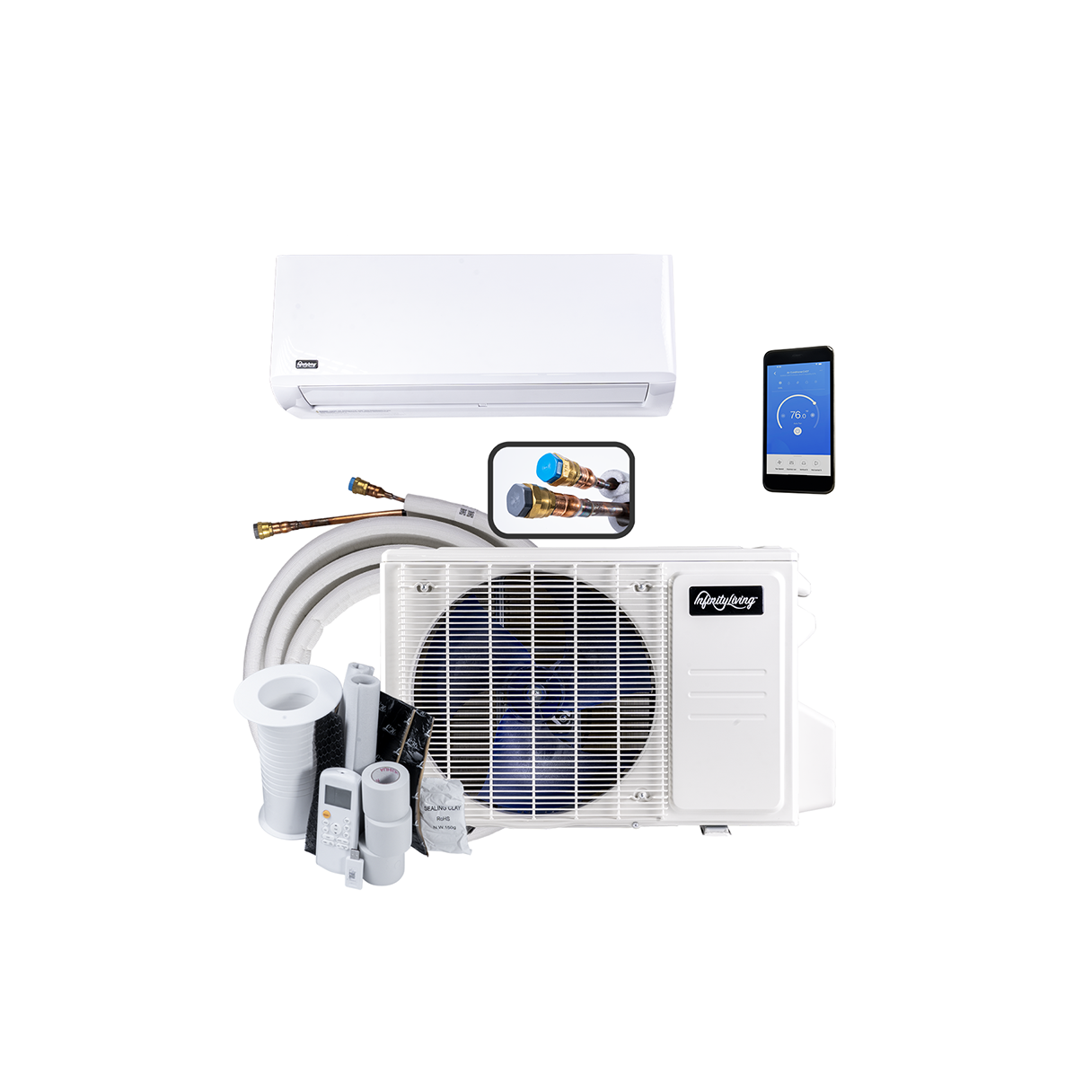

Infinity Living Platinum EZ Connect 24,000 BTU 20 SEER Ductless Mini Split AC and Heat Pump with Wi-FI | 25ft DIYCOOL Install Kit

$3,219.99

Infinity Living Platinum EZ Connect R454B 24K BTU 22 SEER Ductless Mini Split AC and Heat Pump with Wi-Fi
Effortlessly cool and heat your home with the Infinity Living Platinum EZ Connect 24,000 BTU Mini Split. Designed to cover approximately 1,000 to 1,500 square feet, this high-capacity system combines exceptional comfort with energy efficiency, making it a great choice for medium to large spaces. Featuring DIYCool technology and a 25ft lineset installation kit, this system is built for easy, DIY-friendly installation, saving you time and money. Experience advanced climate control with smart home compatibility and modern features.

Features

  • DIYCool technology with a 25ft lineset installation kit
  • Wireless-enabled smart controller
  • 24,000 BTU cooling and heating capacity
  • Covers approximately 1,000 to 1,500 square feet
  • R454B refrigerant
  • Efficient 22.7 SEER2 rating
  • 208/230V electrical requirement

Advantages

  • Simple DIY installation saves time and money
  • Powerful cooling and heating for medium to large spaces
  • Energy-efficient operation reduces utility bills
  • Smart home compatibility for added convenience

Note: The installation kit does not include the electrical whip and disconnect box. These items must be purchased separately.

Infinity Living Platinum 24,000 BTU Mini Split Heat Pump System – 22.7 SEER2, R454B, 230V | 25 ft Line Set

The Infinity Living Platinum 24,000 BTU Mini Split System delivers high-capacity heating and cooling for large spaces up to ~1,500 sq. ft. Boasting a 22.7 SEER2 rating and eco-friendly R454B refrigerant, this wall-mount single-zone system includes a generous 25 ft pre‑charged line set with EZ Connect fittings — built for performance, efficiency, and flexible installation.

Main Features

  • 24,000 BTU Capacity: Ideal for open floor plans, large living areas, or whole units/zones
  • 22.7 SEER2 Efficiency: High energy efficiency to save on utility costs while maintaining strong heating & cooling performance
  • R454B Refrigerant: Environmentally friendlier with lower global warming potential
  • 25 ft Pre‑Charged Line Set: Includes longer line set with EZ Connect fittings for greater install flexibility
  • Low Ambient Cooling: Capable of operating in cold outdoor temps (around 5°F) for extended seasonal use
  • Quiet Operation: Engineered to minimize noise indoors and out for maximum comfort
  • Smart Controls & WiFi‑Ready: Includes connectivity and controller for easy remote or app-based control

Why Choose the Platinum Series?

  • Extended 25 ft Line Set: Offers more placement flexibility without needing extra line kits — excellent for large homes or tricky installs.
  • Premium Efficiency (22.7 SEER2): Higher SEER2 rating means better long-term savings, especially in climates with heavy cooling loads.

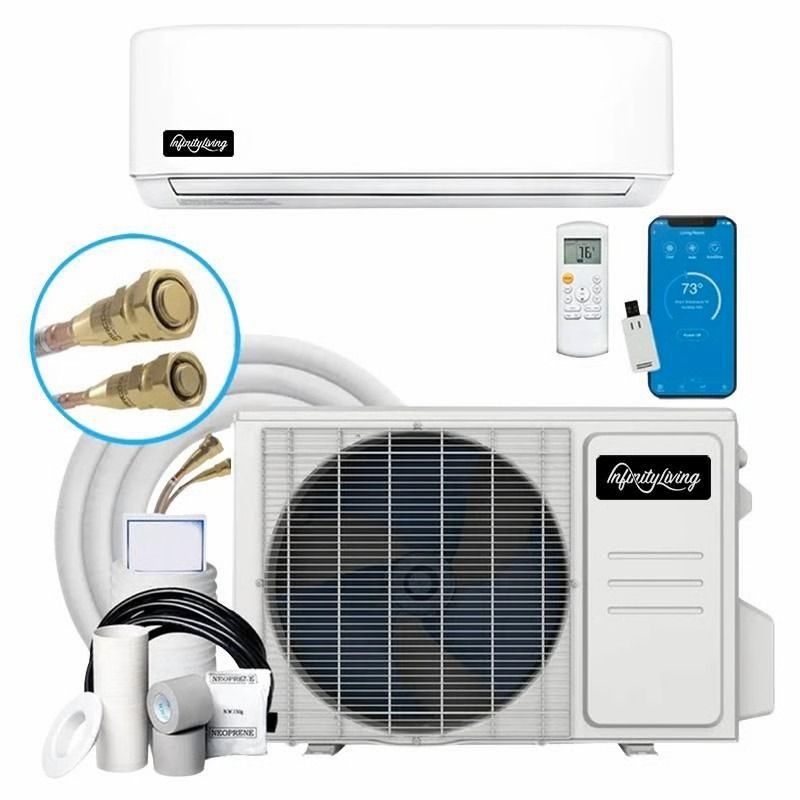

What’s Included

  • Indoor air handler & outdoor condenser units
  • 25 ft pre‑charged line set & control wiring
  • Mounting bracket and accessory kit
  • WiFi‑ready module and smart controller
  • LCD remote control

Warranty

  • Parts Warranty: 5 Years
  • Compressor Warranty: 7 Years

The Infinity Living Platinum 24,000 BTU Mini Split is engineered for homeowners who demand high output and efficiency. With its upgraded SEER2 rating, longer line set, and smart‑capable features, this unit delivers robust performance and install flexibility for larger spaces without sacrificing energy savings.

More Information
24,000 BTU Infinity Living DIYCOOL Platinum Single Zone Mini Split Heat Pump Condenser - R454B | 230V
SKUEZ-24ZPL-HP230B
Weight122.800000
ManufacturerInfinity Living
Product FeaturesQuick Connect, WiFi
HSPF2HSPF2-4 / HSPF2-5: 9.5 / 7.1
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM3800
RefrigerantR454B
SEER222.7
Liquid Line3/8"
Suction Line5/8"
Electrical208/230 V, 1 Phase, 60 Hz
Max Breaker Size25 A
Min. Breaker Size24 A
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height31.89"
Width37.24"
Depth16.14"
Warranty5 Years Parts and 7 Years Compressor Limited Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
24,000 BTU Infinity Living DIYCOOL Multi-Zone Wall Mounted Air Handler - R454B | 230V
SKUEZ-24W-MB
Weight35.930000
ManufacturerInfinity Living
Product FeaturesQuick Connect, WiFi
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
RefrigerantR454B
Liquid Line3/8"
Suction Line5/8"
Electrical230 V, 1 Phase, 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone, Multi Zone
Height13.19″
Width42.52″
Depth8.90″
Warranty5 Years Parts and 7 Years Compressor Limited Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
