Today's Hours 8am - 11pm est24,000 BTU Stealth DIYCOOL Platinum 22.7 SEER2 Single Zone Wall Mount Mini Split Heat Pump System w/ 25' Line Set– R454B | 230V
Required Fields *
Customer reviews
Out of stock
By
Stealth
Out of stock
Model
EZ-24ZPL-HP230B / EZ-24W-MB
ID
209664
Energy-efficient single-zone ductless comfort with DIY-friendly installation and powerful temperature control for larger spaces.
The Stealth DIYCOOL Platinum 24,000 BTU Single-Zone Mini Split System provides reliable heating and cooling with the flexibility of ductless installation. Designed with Quick Connect technology, this configuration includes one 24,000 BTU wall-mounted indoor air handler, ideal for rooms up to approximately 1,500 sq. ft.. This single-zone system is an excellent choice for large living rooms, open-concept areas, bedrooms, offices, basements, apartments, additions, and other residential spaces where efficient and individualized comfort control is important.
Why Choose the Stealth Platinum Series?
- DIY Quick Connect Installation — Pre-charged Quick Connect line sets simplify installation by reducing the need for specialized HVAC tools or refrigerant handling, helping make setup faster and more convenient.
- Personalized Single-Zone Comfort — The 24,000 BTU outdoor condenser is paired with a 24,000 BTU Platinum Series wall-mounted indoor air handler, allowing you to control the temperature of one dedicated area with customized comfort settings.
- High-Efficiency Inverter Technology — Advanced inverter technology automatically adjusts system performance based on demand to maintain consistent temperatures while improving efficiency and helping reduce energy consumption. The Platinum Series delivers up to 22.7 SEER2 efficiency for improved year-round performance.
- Quiet Indoor Operation — Low-noise operation makes this system ideal for living spaces, bedrooms, home offices, and other areas where quiet, comfortable performance matters.
Control Your Comfort from Anywhere
Built-in Wi-Fi connectivity allows you to manage your mini split system from a compatible smartphone or tablet. Adjust temperatures, switch operating modes, create schedules, and control your comfort settings whether you're home or away.
Reliable Year-Round Heating & Cooling
Designed for dependable performance in every season, this heat pump system utilizes advanced inverter technology to deliver efficient heating and cooling. Operating on 230V power and using R454B refrigerant, it provides reliable single-zone comfort while helping maximize energy efficiency.

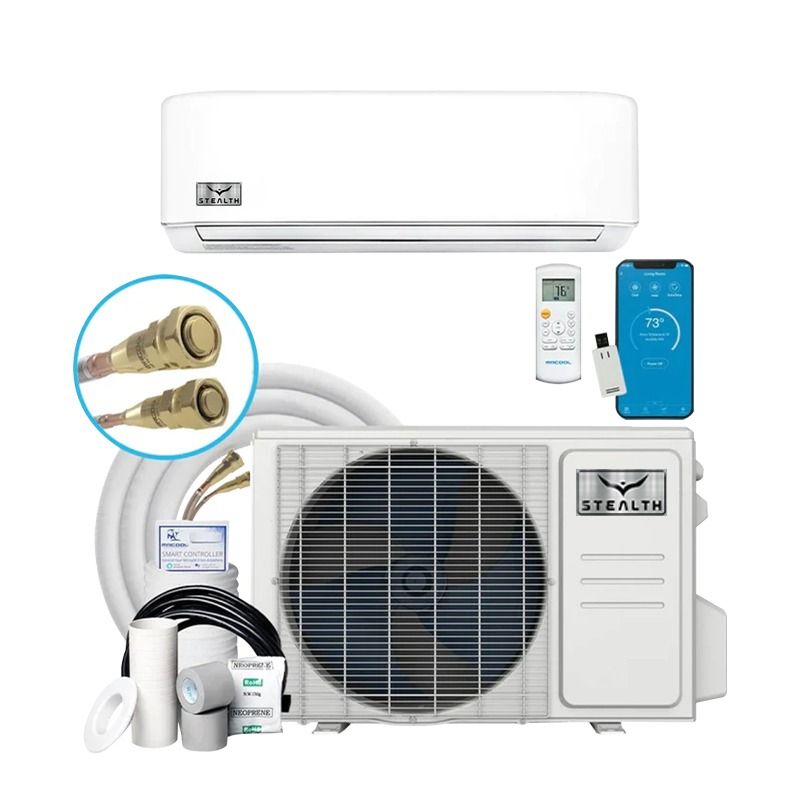

What's Included
- Stealth DIYCOOL Platinum 24,000 BTU Single-Zone Outdoor Condenser (EZ-24ZPL-HP230B)
- Stealth DIYCOOL Platinum 24,000 BTU Wall Mounted Indoor Air Handler (EZ-24W-MB)
- 25 ft Pre-Charged Line Set
- Wireless Remote Control
- Owner's Manual, Installation Guides, and Other Documentation
Recommended Accessories
- 21" Wall Mount Bracket for Mini Split Systems
- Cielo Breeze Max Mini Split Thermostat with WiFi, SKU: BM101WA
- Installation Kit
- 3/4" x 6' Electrical Whip – SKU: 84138 • 60A Non-Fused Disconnect – SKU: 83335 • Surge Protector – SKU: ICM517 • CPS Charging Adapter – SKU: 87-AD87 • Telescoping Wall Sleeve – SKU: NFP-75
- Additional Line Set Options • Coupler - DIYCOUPLER-3858K50 • 25 ft – EZ-25-3858-MB • 35 ft – EZ-35-3858-MB • 50 ft – EZ-50-3858-MB
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
24,000 BTU Stealth Single Zone Air Handler-R454B
Enjoy flexible, year-round comfort with a high-capacity multi-zone wall-mounted indoor air handler designed for efficient performance, quiet operation, and seamless integration with Stealth DIYCOOL Series heat pump systems.
The Stealth DIYCOOL Series 24,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 1,500 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed for compatibility with Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for larger bedrooms, living areas, offices, apartments, and other spaces requiring customized temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- Efficient Heating & Cooling — Provides 24,000 BTU of heating and cooling capacity to deliver dependable comfort for larger spaces and individual zones.
- Quiet Indoor Performance — Engineered for smooth, low-noise operation to help maintain a comfortable indoor environment.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration with quick-connect compatibility for easier installation with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes convenient features such as Wi-Fi capability, smartphone control, remote operation, and reliable system monitoring for enhanced comfort management.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
21" Wall Mount Bracket
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
- 21" Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Top reviews
- Great product and great priceMy wife and I installed this no problem. We opted to get some rubber riser feet from Amazon for the compressor. System is whisper quiet while running. The only thing I would recommend is paying attention to the colors of the 1/2/3 electrical lines in the air handler so you can connect in the same order on the compressor. The manual was not that helpful, but HVACDirect has a YouTube video that explains installation. I just wish it talked about the electrical connections. We are completely happy with our purchase.
