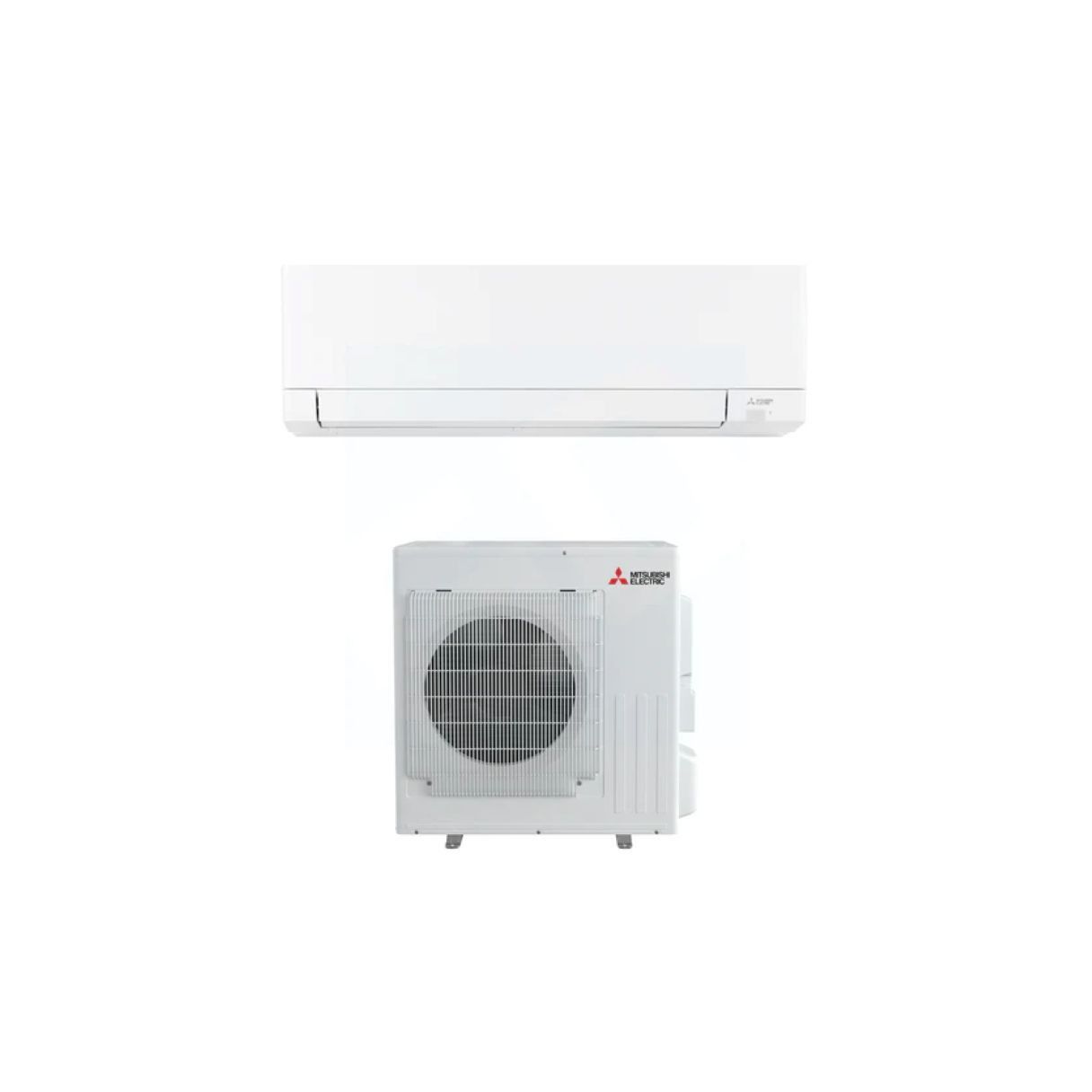

24,000 BTU Mitsubishi GX-Series 21.5 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | MUZ-GX24NL / MSZ-GX24NL
Required Fields *
By
Mitsubishi
In stock
Model
MUZ-GX24NL / MSZ-GX24NL
ID
199119
In Stock - Ready to Ship
Was $3,996.71
Your Low Price $3,197.37
Free Shipping
- days
- Hours
- Minutes
- Seconds
People that viewed this product purchased this instead:

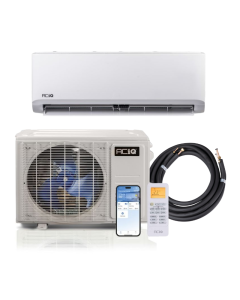

24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Rating:
97%
Was $2,092.29
Special Price $1,359.99
24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $2,092.29
Special Price $1,359.99
24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $2,107.67
Special Price $1,369.99
24,000 BTU ACiQ Standard 23.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Rating:
93%
Was $1,971.97
Special Price $1,516.90

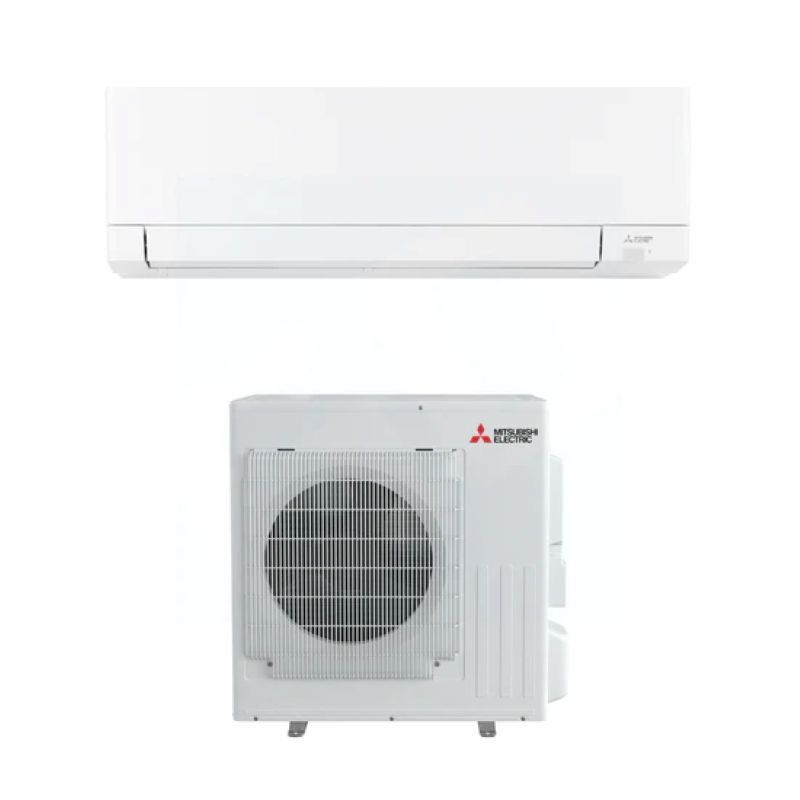

24,000 BTU Mitsubishi GX-Series 21.5 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | MUZ-GX24NL / MSZ-GX24NL
Upgrade your climate control with the 24,000 BTU Mitsubishi GX-Series Mini Split Heat Pump System. With a 21.5 SEER2 rating, this high-efficiency system ensures excellent cooling and heating performance while reducing energy consumption. Designed for reliable comfort in moderate climates, this system is perfect for larger spaces and delivers consistent year-round performance.
Key Features:- Heating and Cooling: Ideal for year-round comfort in most climates.
- 21.5 SEER2 Efficiency: Achieves a high SEER2 rating for excellent energy efficiency, ensuring lower operating costs without compromising performance.
- R454B Refrigerant: An eco-friendly refrigerant that provides high performance and energy efficiency while reducing the environmental impact with lower global warming potential.
- Inverter Technology: Automatically adjusts the compressor speed to provide optimized performance, ensuring comfort and energy savings throughout the year.
- Quiet Operation: Designed to minimize noise, providing a peaceful and comfortable environment without compromising on performance.
- Indoor Unit: MSZ-GX24NL Wall-Mounted Air Handler
- Outdoor Unit: MUZ-GX24NL Heat Pump Condenser
- Perfect for larger residential and commercial spaces, this system ensures consistent and reliable temperature control for enhanced comfort.
- Offers flexible remote control options, allowing you to easily manage temperature settings and operation from anywhere in the room.
- Durable and long-lasting performance, backed by Mitsubishi's reputation for quality engineering and innovation in climate control solutions.
The Mitsubishi GX-Series 24,000 BTU Mini Split Heat Pump System provides exceptional heating and cooling performance, making it the ideal choice for larger areas where efficiency, comfort, and reliability are required. Experience year-round comfort while reducing energy costs with this cutting-edge mini split system.
24,000 BTU Mitsubishi GX-Series Single Zone Mini Split Heat Pump Condenser - R454B - MUZ-GX24NL

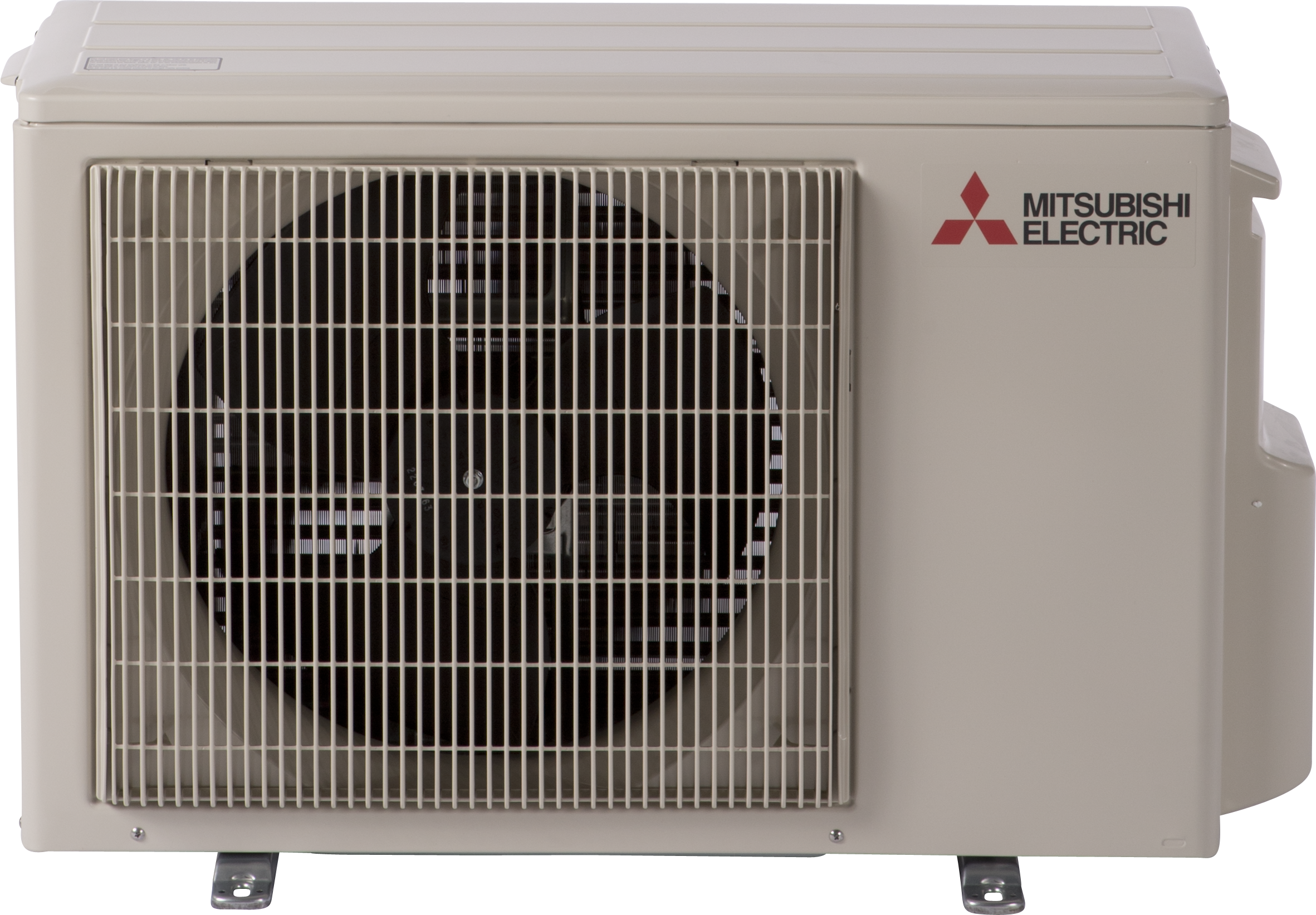

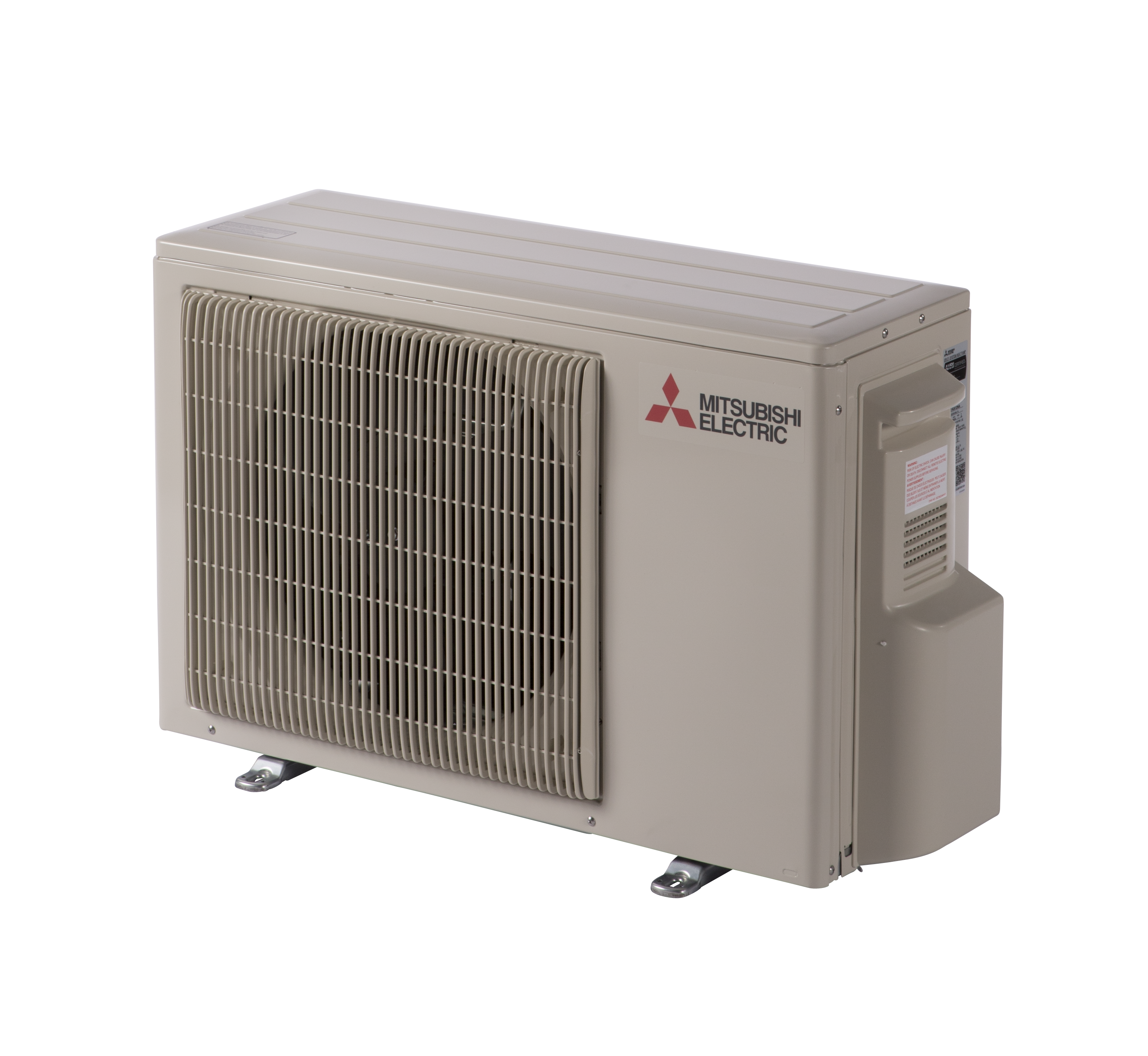

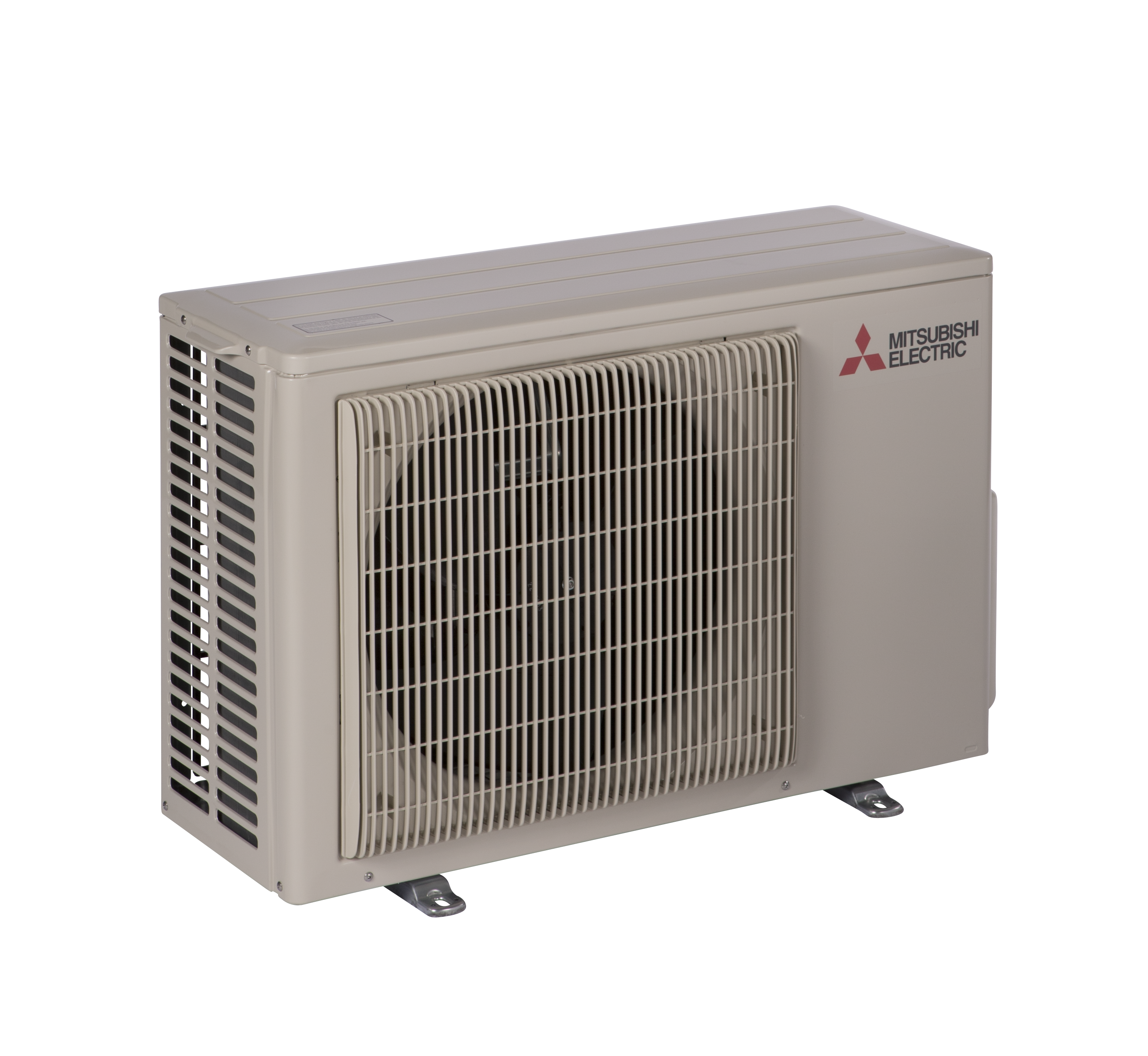

MUZ-GX24NL - Inverter Heat Pump Outdoor Unit
The MUZ-GX24NL is a powerful and energy-efficient outdoor unit designed for residential and light commercial applications. It features an inverter-driven compressor and is designed to operate in both heating and cooling modes. Paired with the MSZ-GX24NL indoor unit, it offers superior comfort and performance year-round. Below are the key features and specifications of this model:
Key Features:
- Blue Fin Coating: Protects the heat exchanger from corrosion, making it suitable for coastal or industrial environments where exposure to salt and contaminants is a concern.
- Inverter-Driven Compressor: The inverter-driven compressor ensures precise capacity control, optimizing energy use and providing consistent performance.
- Powered by Outdoor Unit: The outdoor unit powers the indoor unit, and in the event of a power outage, the system automatically restarts when power is restored.
- Quiet Operation: The unit operates at a sound pressure level of 55 dB(A) during both cooling and heating, ensuring minimal noise disruption in residential areas.
- Energy Efficient: The MUZ-GX24NL has an impressive SEER2 rating of 21.5, EER21 rating of 13, and HSPF2 of 10.3, ensuring reduced energy consumption and lower operating costs.
- Defrost Method: Features a reverse cycle defrost method to prevent ice buildup and maintain efficiency in colder weather conditions.
- Multiple Control Options: Includes a backlit remote controller, Comfort app integration, and compatibility with third-party interfaces for complete control over temperature, fan speeds, and modes.
- Smart Dry Mode: Improves humidity control without over-cooling the space, maintaining a comfortable environment.
Specifications:
- Cooling Capacity: Rated at 22,400 BTU/h with a maximum capacity of 27,000 BTU/h at 95°F outdoor temperature.
- Heating Capacity: Rated at 27,600 BTU/h at 47°F, with a maximum of 32,000 BTU/h. The unit is capable of maintaining heating performance even at -10°F outdoor temperature.
- Power Input: Rated at 1,720W in cooling mode and 2,340W in heating mode, providing efficient energy use.
- SEER2 Rating: 21.5, ensuring excellent energy efficiency for lower operating costs.
- Electrical Requirements: 208-230V, 1 phase, 60Hz, with a recommended fuse size of 25A and wire size of AWG 14 for proper installation.
- Dimensions: The outdoor unit measures 33-1/16 x 13 x 34-5/8 inches and weighs 88 lbs (40 kg).
- Airflow Rate: 2,202 CFM during cooling and 1,934 CFM during heating for optimal air circulation.
- Sound Pressure Level: 55 dB(A) in both cooling and heating modes, ensuring a quiet and comfortable environment.
The MUZ-GX24NL is ideal for applications requiring reliable, energy-efficient heating and cooling, even in extreme weather conditions. With advanced features and top-tier performance, this unit ensures year-round comfort while minimizing energy consumption.
24,000 BTU Mitsubishi GX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B
MSZ-GX24NL Air Handler Overview
The MSZ-GX24NL air handler is an energy-efficient HVAC solution designed for residential and light commercial use. When paired with the MUZ-GX24NL outdoor unit, it delivers dependable performance in both heating and cooling, providing year-round comfort. With features like inverter-driven technology and quiet operation, the MSZ-GX24NL offers reliable, cost-effective climate control while ensuring superior energy efficiency for your indoor space.
Key Features
- Energy Efficiency: Designed to deliver high energy efficiency, minimizing power consumption while providing consistent and effective heating and cooling. This helps reduce operational costs and supports environmental sustainability.
- Quiet Operation: Operates quietly, making it ideal for bedrooms, offices, or any living or working spaces where a peaceful environment is essential.
- Compact and Modern Design: Features a sleek and compact design that fits seamlessly into modern interiors, suitable for spaces with limited installation room without sacrificing performance.
- Improved Air Quality: Equipped with an advanced filtration system that reduces airborne pollutants such as dust and allergens, promoting a healthier indoor environment.
- Durability and Corrosion Resistance: Built to last with a corrosion-resistant coating for long-term durability, even in humid or coastal environments.
Specifications
- Cooling Capacity: 24,000 BTU/h
- Heating Capacity: 27,200 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
- Weight: 29 lbs
Advanced Features and Benefits
- Inverter Technology: Utilizes inverter-driven technology to dynamically adjust compressor speed based on real-time needs, improving energy efficiency and temperature consistency while extending system life.
- Remote Control: Includes a user-friendly remote for convenient control of temperature, fan speed, and operation modes.
- Auto Restart Function: Automatically resumes operation with previous settings after a power outage, minimizing disruption.
- Self-Diagnosis and Error Reporting: Built-in diagnostics display error codes for faster troubleshooting and service.
Installation and Maintenance
- Easy Installation: Compact size and flexible mounting options make installation simple and adaptable for various room layouts.
- Low Maintenance Requirements: Durable construction and washable filters make the unit easy to maintain and keep operating efficiently.
- Washable Filters: Easy-to-clean filters help maintain air quality and reduce the need for frequent replacements.
Applications
- Residential Use: Ideal for larger rooms in homes or apartments. Quiet operation and energy savings make it great for living rooms, bedrooms, or home offices.
- Commercial Use: Also well-suited for light commercial spaces like small offices or retail stores where energy efficiency and comfort are key.
In conclusion, the MSZ-GX24NL air handler offers efficient and reliable climate control for residential and light commercial applications. With inverter-driven performance, quiet operation, and modern design, it delivers year-round comfort and energy savings while maintaining a low-maintenance footprint.

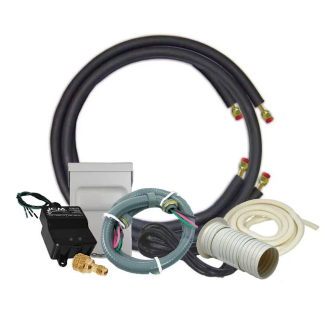

Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
| 24,000 BTU Mitsubishi GX-Series Single Zone Mini Split Heat Pump Condenser - R454B - MUZ-GX24NL | |
|---|---|
| SKU | MUZ-GX24NL |
| Weight (in lbs) | 116.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MUZ-GS24NA-U1 |
| Cooling BTU | 27000 |
| Heating BTU | 32000 |
| Decibel Level (dBA) | 55 |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 21.5 |
| Compressor Type | Twin Rotary |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 5/8 |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 |
| Min. Breaker Size | 23 |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Zone Compatibility | Single Zone |
| Height | 12.81" |
| Width | 43.31" |
| Depth | 10.12" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| 24,000 BTU Mitsubishi GX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B | |
| SKU | MSZ-GX24NL |
| Weight (in lbs) | 37.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MSZ-GS24NA-U1 |
| HSPF2 | 10.3 |
| Decibel Level (dBA) | C: 34-53 & H: 32-52 |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 12-13/16" |
| Width | 35-5/16" |
| Depth | 9-3/8" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Condensers 30" | |
| SKU | ACB-30 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 18" x 38" x 3" | |
| SKU | EL1838-3 |
| Weight (in lbs) | 16.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Condenser Risers - 4" x 18" - 2 Pack | |
| SKU | 87762 |
| Weight (in lbs) | 5.000000 |
| Brand/Manufacturer | Online Supply |
| E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
| SKU | 87762 / EL1838-3 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Cielo Breez Max Mini Split Thermostat with WiFi | |
| SKU | BM101WA |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | Cielo |
| Electrical | Micro USB with Standard Plug |
| Height | 4.25" |
| Width | 4.25" |
| Depth | 1" |
| Warranty | 1 Year Full Replacement |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet | |
| SKU | 218863 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet | |
| SKU | 219066 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet | |
| SKU | 366408 |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet | |
| SKU | 366406 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet | |
| SKU | 366407 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
