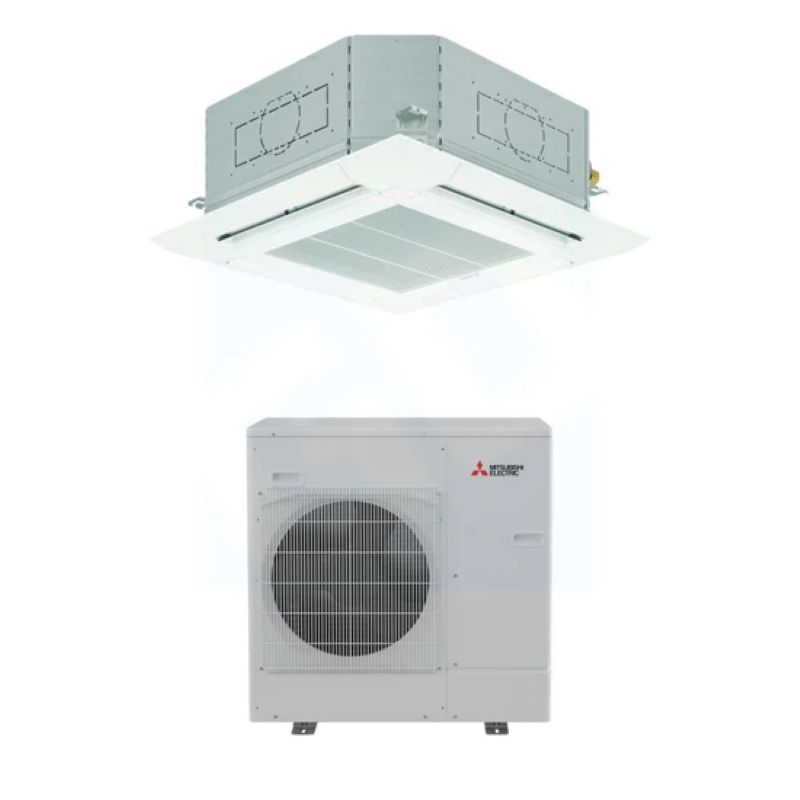

24,000 BTU Mitsubishi P-Series 22.6 SEER2 Single Ceiling Cassette Mini Split Heat Pump System - R454B | PUY-AH24NL / PLA-AE24NL

PUY-AH24NL - Outdoor Unit for Ceiling-Suspended Air Conditioning System

The PUY-AH24NL is a high-performance outdoor unit designed for use with ceiling-suspended air conditioning systems, offering excellent cooling and heating capabilities for larger spaces. It is ideal for commercial and residential applications that require efficient climate control across multiple zones. Below are the key features and specifications of this model:

Key Features:

• Blue Fin Coating: An anti-corrosion treatment applied to the heat exchanger's aluminum fins, protecting against corrosion from salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Continuous Operation: Capable of 24-hour continuous operation in cooling mode, providing consistent comfort around the clock.
• Fast Restart: Quickly resumes operation after power interruptions, minimizing downtime and maintaining comfort.
• High Pressure Protection: Equipped with high-pressure safeguards to protect the system from anomalies, ensuring reliability and safe operation.
• INVERTER-Driven Compressor: Adjusts the compressor speed according to cooling demand, enhancing energy efficiency and maintaining stable temperatures.
• Low Ambient Cooling: Supports cooling down to -40°F with the addition of wind baffles, making it suitable for a variety of climates.
• Pre-Charged Refrigerant: The unit is pre-charged with refrigerant for specific line lengths, simplifying installation and reducing setup time.
• Seacoast Protection: Features a robust anti-corrosion system, including a treated heat exchanger coil and coated external panels, rated for 2,000 hours under ASTM B117 testing, ensuring durability in coastal environments.
• Superior Energy and Operational Efficiency: Designed to deliver top-tier performance while minimizing energy consumption and reducing operational costs.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 24,000 BTU/h
  • Rated Capacity: 21,800 BTU/h
  • Minimum Capacity: 9,800 BTU/h
• Power Consumption:
  • Maximum Power Input: 2,120 W
  • Rated Power Input: 1,810 W
• Moisture Removal: 4 pints/h
• Energy Efficiency Ratings:
  • SEER2: 20.2
  • EER21: 12
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 25 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 37-13/32 x 14 x 37-1/8 inches (950 x 355 x 943 mm)
• Outdoor Unit Weight: 155 lbs (70 kg)

The PUY-AH24NL outdoor unit is designed to offer efficient and reliable cooling and heating for ceiling-suspended systems, delivering superior performance and durability for a wide range of applications.

PLA-AE24NL Air Handler Overview

The PLA-AE24NL is an advanced air handler unit designed for high efficiency, offering reliable cooling and heating performance for both residential and light commercial applications. This unit is paired with the PUY-AH24NL outdoor unit for optimal performance, ensuring consistent comfort throughout the year. With its compact size and innovative technology, the PLA-AE24NL provides efficient climate control, all while keeping energy consumption low.

Key Features

• Inverter Technology: The PLA-AE24NL incorporates inverter-driven technology that adjusts the compressor speed to match the required heating or cooling output. This results in enhanced energy efficiency and precise temperature control.
• Quiet Operation: Designed with advanced noise-reducing features, the PLA-AE24NL operates quietly, making it perfect for homes, offices, and other environments where noise reduction is important.
• Energy Efficiency: This air handler is engineered for maximum energy efficiency, reducing overall power consumption and lowering operating costs.
• Eco-Friendly Refrigerant: The PLA-AE24NL utilizes R410A refrigerant, which is an environmentally friendly option that offers superior performance without harming the ozone layer.
• Compact Design: With its space-saving design, the PLA-AE24NL is ideal for installations where space is limited, making it easy to incorporate into various environments.

Specifications

• Cooling Capacity: 24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 31-7/8" x 10-5/8" x 22-1/8”
• Weight: 39 lbs
• Refrigerant: R410A
• Airflow: 900 CFM

Benefits

• Comfortable Living Spaces: With precise temperature and humidity control, the PLA-AE24NL ensures a comfortable environment for residents and occupants, maintaining ideal conditions year-round.
• Low Operating Costs: The inverter technology and high-efficiency components of the PLA-AE24NL help reduce energy consumption, which translates into significant savings on energy bills.
• Reliability: Designed for durability, the PLA-AE24NL air handler offers consistent, reliable performance in a variety of environments, providing long-term peace of mind for users.
• Environmentally Responsible: The use of R410A refrigerant makes the PLA-AE24NL an eco-friendly choice, ensuring that it does not contribute to ozone depletion while still delivering top-notch performance.
• Easy Maintenance: With minimal maintenance requirements, the PLA-AE24NL is engineered to operate smoothly and efficiently, reducing the need for costly repairs and servicing.

Applications

• Residential Use: Ideal for homes, apartments, and townhouses, providing quiet, efficient cooling and heating in living spaces.
• Light Commercial Use: Suitable for small commercial spaces such as offices, retail stores, and cafes where efficient, quiet climate control is needed.

Maintenance

• Minimal Maintenance: The PLA-AE24NL is designed for easy upkeep, ensuring that it operates at peak efficiency with minimal attention required from the user.
• Long-Lasting Performance: Constructed from high-quality materials, this air handler is built to withstand years of use, delivering consistent performance with fewer repairs.

The PLA-AE24NL air handler offers outstanding value, combining energy-efficient technology with advanced performance features. Its compact size, eco-friendly refrigerant, and quiet operation make it an excellent choice for both residential and light commercial applications. Whether you're looking for energy savings, superior comfort, or easy maintenance, the PLA-AE24NL delivers exceptional performance, making it a reliable solution for all your heating and cooling needs.

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
