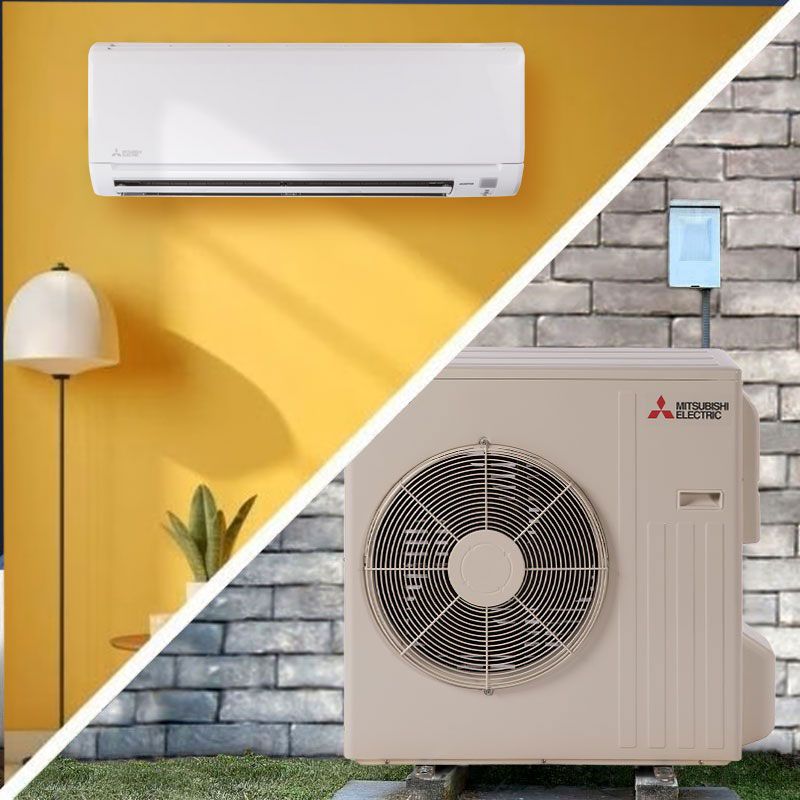

Mitsubishi 24,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

Required Fields *

By

Mitsubishi

In stock

Model

MUZ-WX24NL / MSZ-WX24NL

ID

199132

Rating:
93% of 100
ONLY 2 LEFT!
Was $2,762.67
Your Low Price $2,402.32

Free Shipping
Customize Mitsubishi 24,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
24,000 BTU Mitsubishi Single Zone Condenser - R454B
24,000 BTU Mitsubishi Single Zone Condenser - R454B   + $1,592.32
24,000 BTU Mitsubishi WX-Series Wall Mount Mini Split Air Handler - R454B
24,000 BTU Mitsubishi WX-Series Wall Mount Mini Split Air Handler - R454B   + $810.00
Installation Kit for Condensers
Equipment Pad
Mitsubishi MHK2 Wireless Remote Controller
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Mitsubishi 24,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

$2,402.32

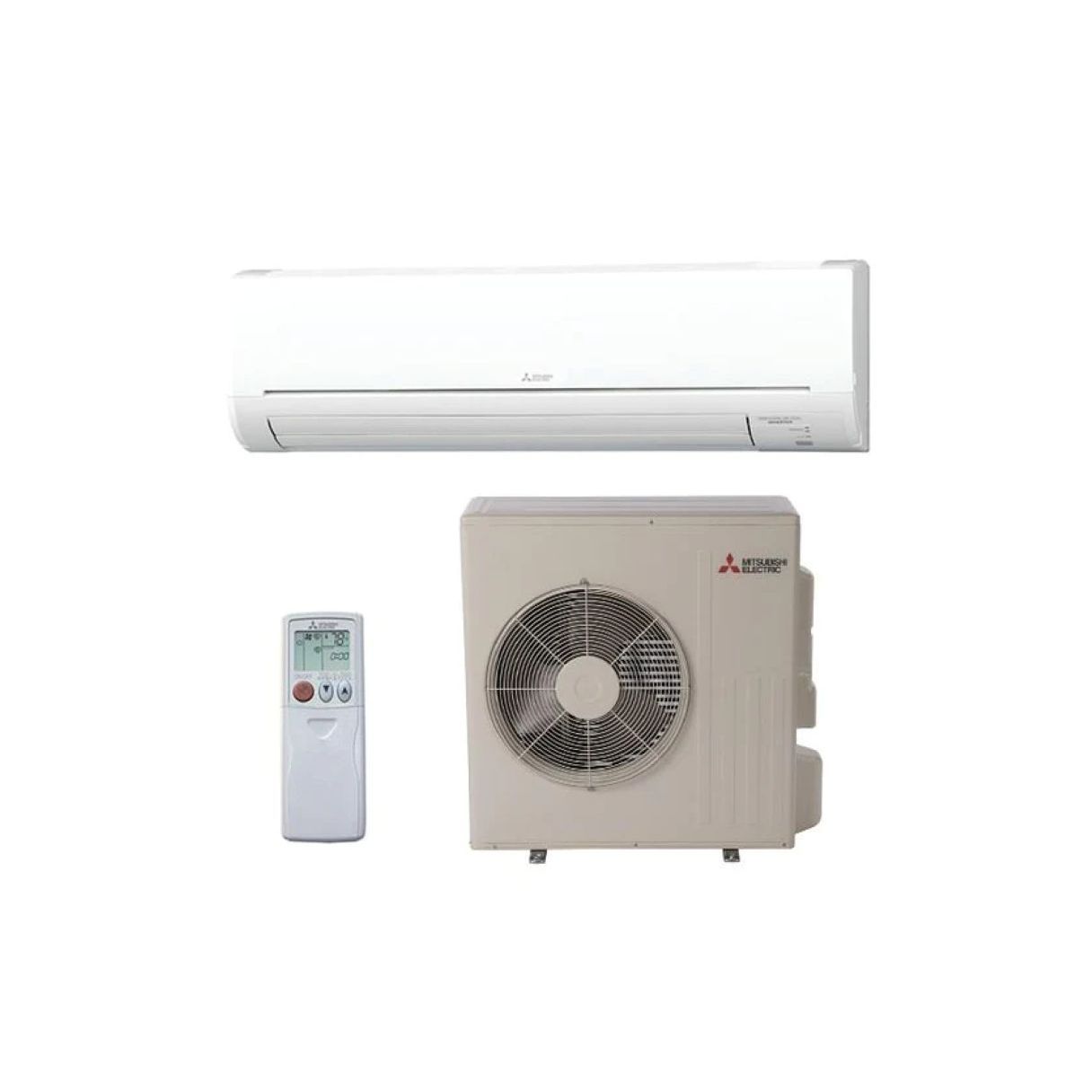

24,000 BTU Mitsubishi WX-Series 18 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | MUZ-WX24NL / MSZ-WX24NL

The 24,000 BTU Mitsubishi WX-Series Mini Split Heat Pump System is engineered to provide superior heating and cooling efficiency while minimizing energy consumption. With an impressive 18 SEER2 rating, this system ensures excellent energy savings without compromising on performance. It utilizes the advanced R454B refrigerant, which is eco-friendly and has a significantly lower global warming potential than traditional refrigerants. Ideal for medium to large-sized rooms, this system delivers both powerful climate control and a quieter, more comfortable environment.

Key Features:
  • Exceptional Energy Efficiency: Achieving an 18 SEER2 rating, this system provides outstanding cooling and heating performance with minimal energy consumption.
  • Eco-Friendly Refrigerant: The system uses the sustainable R454B refrigerant, reducing the environmental impact with a low global warming potential.
  • Inverter Technology: The built-in inverter technology adjusts the compressor speed to maintain your desired temperature efficiently while reducing energy waste.
  • Quiet Operation: The WX-Series operates quietly, making it ideal for bedrooms, offices, or any space where noise reduction is a priority.
  • Compact Wall-Mounted Design: The sleek, wall-mounted unit saves floor space and provides an elegant, modern look that fits seamlessly into any room's decor.
System Components:
  • Indoor Unit: MSZ-WX24NL Wall-Mounted Air Handler
  • Outdoor Unit: MUZ-WX24NL Heat Pump Condenser
Additional Benefits:
  • Energy-efficient heating and cooling, offering year-round comfort and reducing monthly utility bills.
  • Advanced filtration system helps to improve air quality by trapping dust, allergens, and other particles, creating a healthier living space.
  • Space-saving design that fits into any room without taking up unnecessary floor space, making it ideal for homes or offices with limited room.

The Mitsubishi WX-Series 24,000 BTU Mini Split Heat Pump System provides efficient, eco-friendly climate control for larger spaces. Whether you need reliable cooling during the summer or effective heating during the winter, this system offers a versatile solution for maintaining comfort all year long while being mindful of your energy usage and environmental impact.

Mitsubishi 24,000 BTU WX-Series Single Zone Mini Split Heat Pump Condenser – R454B | 230V

MUZ-WX24NL - 22,400 BTU/H Heat Pump Outdoor Unit

The MUZ-WX24NL is the outdoor unit of Mitsubishi's advanced heat pump system, designed to provide reliable and efficient climate control. With a 22,400 BTU/H cooling and heating capacity, this outdoor unit is built for high performance and energy efficiency in both residential and commercial applications.

Outdoor Unit Features (MUZ-WX24NL):

  • Blue Fin Coating: A protective coating on the heat exchanger fins helps to prevent corrosion, making the unit ideal for use in harsh or coastal environments.
  • Inverter-Driven Compressor: The inverter-driven compressor ensures precise capacity control, adjusting to meet the temperature needs of the space efficiently and maintaining consistent comfort levels.
  • Outdoor Unit Powered System: The outdoor unit powers the entire system, including the indoor unit, and it automatically restarts after a power interruption for added convenience.

Specifications:

  • Cooling Capacity: 22,400 BTU/h
  • Heating Capacity at 47°F: 26,000 BTU/h
  • Power Input: 2,800 W (cooling), 2,680 W (heating at 47°F)
  • Moisture Removal: 6.1 pints/h
  • Energy Efficiency: SEER2 = 18, HSPF2 = 8.5
  • Operating Temperature Range: Cooling intake air temperature ranges from 67°F to 90°F.
  • Dimensions: 36-5/16" x 10-5/16" x 12" (indoor unit)
  • Weight: 32 lbs (packaged weight)

The MUZ-WX24NL outdoor unit is engineered to provide optimal performance with energy-saving features, ensuring both durability and comfort throughout the year.

Mitsubishi 24,000 BTU WX-Series Single Zone Wall Mounted Mini Split Air Handler – R454B | 230V

MSZ-WX24NL Air Handler Overview

The MSZ-WX24NL air handler provides efficient heating and cooling for medium to large residential and light commercial spaces. Paired with the MUZ-WX24NL outdoor unit, it features advanced Inverter technology, Hyper Heating, and a compact, modern design. With quiet operation and high-performance filtration, it ensures consistent comfort and healthier indoor air year-round.

Key Features

  • Energy Efficiency: Inverter technology adjusts compressor speed to match real-time demand, reducing energy consumption while maintaining optimal comfort.
  • Quiet Operation: Low-noise performance creates a peaceful environment in bedrooms, offices, or living spaces.
  • Compact and Modern Design: Sleek design and small footprint allow flexible installation in homes and small businesses.
  • Improved Air Quality: High-performance filtration captures dust, pollen, and airborne particles for healthier indoor air.
  • Durability: Constructed with corrosion-resistant, high-quality materials for reliable, long-term performance.

Specifications

  • Cooling Capacity: 24,000 BTU/h
  • Heating Capacity: 27,000 BTU/h
  • Power Supply: 208-230V, 60Hz, 1-phase
  • Dimensions: 35-1/2" W x 11-7/8" H x 25-5/8" D
  • Weight: 26.4 lbs

Advanced Features

  • Inverter Technology: Compressor adjusts speed to match heating or cooling needs for energy-efficient operation.
  • Hyper Heating: Maintains efficient heating even in extremely low outdoor temperatures.
  • Quiet Mode: Reduces sound levels for noise-sensitive areas.
  • Auto Restart: Automatically restores previous settings after power outages.
  • Remote Control: Easily adjust temperature, fan speed, and mode from anywhere in the room.

Installation and Maintenance

  • Flexible Installation: Compact and lightweight design allows installation in various spaces.
  • Low Maintenance: Minimal upkeep with routine filter cleaning and inspections.
  • Washable Filters: Easy-to-clean filters reduce replacement costs and maintain better air quality.

Applications

  • Residential Use: Ideal for medium to large homes, delivering year-round comfort in living rooms, bedrooms, kitchens, and home offices.
  • Light Commercial Use: Suitable for small offices, retail shops, cafes, and restaurants, providing quiet, efficient, and reliable climate control.

Overall, the MSZ-WX24NL air handler offers energy-efficient heating and cooling, quiet operation, and advanced features for improved air quality. Its compact design, easy installation, and low-maintenance requirements make it a durable, reliable solution for residential and light commercial applications.

Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

All-in-One Kit: Includes key accessories for a professional-grade installation.
Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

Mitsubishi MHK2 Wireless Remote Controller

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

  • Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
  • Backlit display
  • Can sense temperature at indoor unit (default) or at controller
  • Fahrenheit °F / Celsius °C
  • No batteries required
  • Single zone compatible
  • Multi zone compatible
  • English, French, Spanish

Compatible Indoor Units:

Wall Mounted

  • GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
  • FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
  • EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
  • JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
  • WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
  • D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
  • P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

  • KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
  • P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

  • KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
  • KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
  • P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

  • MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

  • KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
  • P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

  • P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
More Information
Mitsubishi 24,000 BTU WX-Series Single Zone Mini Split Heat Pump Condenser – R454B | 230V
SKUMUZ-WX24NL
Weight28.000000
ManufacturerMitsubishi
ReplacesMUZ-WR24NA-U1
Cooling BTU22400
Heating BTU26000
Decibel Level (dBA)57
RefrigerantR454B
SEER218
Compressor TypeTwin Rotary
Liquid Valve Size 1/4
Suction Valve Size 1/2
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size29
Min. Breaker Size16
BTU/Tonnage24,000 BTU/2 Ton
Zone CompatibilitySingle Zone
Height28.8"
Width31.5"
Depth11.14"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Mitsubishi 24,000 BTU WX-Series Single Zone Wall Mounted Mini Split Air Handler – R454B | 230V
SKUMSZ-WX24NL
Weight28.000000
ManufacturerMitsubishi
ReplacesMSZ-WR24NA-U1
HSPF28.5
Decibel Level (dBA)32-50
RefrigerantR454B
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12"
Width36-5/16"
Depth9-13/16"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
SKU201814
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
SKU216741
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
SKU366402
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
SKU366400
Weight25.000000
ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
SKU366401
Weight35.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
SKUMHK2
Weight2.000000
ManufacturerMitsubishi
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Mitsubishi 24,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
