Today's Hours 8am - 11pm estMRCOOL 27,000 BTU DIY 5th Gen 23 SEER2 2 Zone Ceiling Cassette Mini Split Heat Pump System R454B | 230V 9 + 9
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI4-27HP / DIYCASSETTE09HP-230-2
ID
207124
Was $5,412.00
Your Low Price $4,920.00
Product Features
- 27,000 BTU Comfort For 1000 Sq Ft
- Comfort Coverage Up To 1000 Sq Ft
- Efficient Comfort Rated 23 SEER2
- Great For Remodels And Retrofits
- Reliable Year-Round Comfort
- Reliable Cooling Up To 122°F

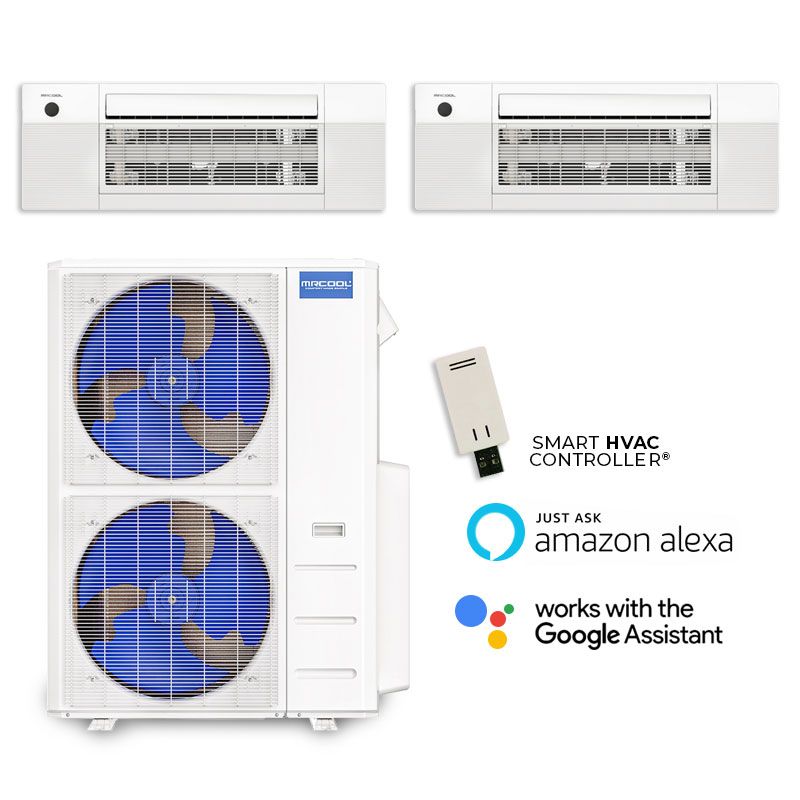

27,000 BTU MRCOOL DIY 5th Gen 2 Zone Ceiling Cassette Mini Split Heat Pump System 9 + 9
The MRCOOL DIY 5th Gen 27,000 BTU 2 Zone Ceiling Cassette Mini Split Heat Pump System provides efficient, powerful comfort control for two mid sized rooms. This setup features two 9,000 BTU ceiling cassette indoor units connected to a 27,000 BTU outdoor condenser, offering independent temperature control across multiple zones. With up to 23 SEER2 energy efficiency and eco conscious R 454B refrigerant, this system delivers reliable, quiet performance and flexible smart home integration.
Key Features
- 2 Zone Design: Two 9,000 BTU ceiling cassette units offer balanced comfort in rooms such as bedrooms, offices, or living areas.
- High Efficiency: Rated up to 23 SEER2 and 10.5 HSPF2, helping reduce energy bills while maintaining consistent indoor temperatures.
- Smart Functionality: Built in Wi Fi control via the SmartHVAC app, plus voice control support with Amazon Alexa and Google Assistant.
- Ceiling Cassette Format: Flush mounted units distribute air in four directions for uniform coverage and a clean, unobtrusive appearance.
- Eco Friendly Refrigerant: Uses R 454B refrigerant, which features a lower Global Warming Potential (GWP) compared to older refrigerants.
- Quiet Operation: Low sound levels from both indoor and outdoor units ensure a peaceful environment in any room.
- Comfort Features: Sleep Mode, Follow Me, Auto Restart, and a 24 hour timer offer tailored, energy conscious control options.
- Air Filtration: Built in filters improve indoor air quality by reducing dust, allergens, and other airborne particles.
System Components
- Outdoor Unit: 27,000 BTU condenser pre charged with R 454B refrigerant, designed for 2 Zone operation.
- Indoor Units:
- 9,000 BTU Ceiling Cassette
- 9,000 BTU Ceiling Cassette
- Remote & Smart Controls: Each indoor unit includes a remote control and supports full Wi Fi connectivity for smart device control.
Ideal Applications
This configuration is perfect for homeowners who need equal comfort in two mid sized roomssuch as matching bedrooms, a home office and den, or a living area and playroom. With modern ceiling mounted design, smart home compatibility, whisper quiet performance, and unmatched DIY convenience, the MRCOOL 9 + 9 2 Zone ceiling cassette system offers advanced comfort tailored to todays lifestyle. These bundles require the purchase of a Pre-Charged Line Set, these are not included.
27,000 BTU MRCOOL 4 Zone Condenser - R454B
MRCOOL 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
The MRCOOL® DIY-MULTI4-27HP230D-O is a high-efficiency 5th Generation Multi-Zone Mini-Split Condenser that empowers homeowners to install a powerful ductless HVAC system without professional assistance. Designed for use with MRCOOL DIY indoor air handlers, this 27,000 BTU multi-zone condenser supports up to four zones for customizable comfort throughout the home.
Key Features
- Multi-Zone Flexibility: Supports up to four indoor air handlers of varying BTU capacities, allowing tailored climate control in each zone.
- Energy Efficiency: High SEER2 and HSPF2 ratings ensure optimal performance while keeping utility bills low.
- Smart Home Integration: Wi-Fi compatibility allows control via the SmartHVAC app, Amazon Alexa, or Google Assistant.
- Durable and Weather-Resistant: Engineered with Gold Fin corrosion-resistant coatings and designed to withstand a wide range of ambient temperatures.
Performance Specifications
- Model: DIY-MULTI4-27HP230D-O
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 27,000 BTU
- Heating Capacity: 28,000 BTU
- SEER2: Up to 23
- HSPF2: Up to 8.8
Additional Features
- Auto Restart: Automatically resumes operation after power outage
- Quiet Operation: Operates at low decibel levels for noise-sensitive environments
- Low Ambient Cooling: Operates in outdoor temperatures as low as 5°F for cooling and -13°F for heating
- Multiple Fan Speeds: Customizable airflow for maximum comfort
The MRCOOL 27k DIY 5th Generation Multi-Zone Condenser offers unmatched ease of installation and energy-saving technology. Whether retrofitting an existing system or building new, it delivers outstanding performance, smart convenience, and personalized comfort throughout your home.
MRCOOL 9,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V
MRCOOL® DIY® Series 5th Gen OuttaSight® 9K BTU 230V One-Way Ceiling Cassette
The MRCOOL® DIY® Series 5th Generation OuttaSight® 9K BTU One-Way Ceiling Cassette is a sleek and efficient cooling and heating solution for compact spaces. Designed for ceiling-mounted installation, this cassette provides discreet comfort while maintaining valuable wall and floor space. It’s ideal for bedrooms, offices, or smaller living areas requiring zoned climate control.
Key Features:
- Compact One-Way Ceiling Design: Blends into any décor with a clean, ceiling-flush appearance for a modern, unobtrusive finish.
- 9,000 BTU Capacity: Perfect for small to mid-sized rooms where effective temperature regulation is needed.
- DIY® Quick Connect® Installation: Allows for fast, tool-free setup with pre-charged line sets, saving time and installation costs.
- Smart Home Integration: Compatible with the MRCOOL® SmartHVAC app, Amazon Alexa, and Google Assistant for hands-free control.
- Quiet and Reliable Operation: Engineered for minimal noise output, making it an excellent option for bedrooms and quiet zones.
- Directional Airflow Control: One-way airflow provides targeted comfort exactly where it's needed.
- Energy-Efficient Performance: Inverter technology optimizes energy use while maintaining consistent indoor temperatures.
- Built to Last: Features durable construction with corrosion-resistant components for long-term dependability.
Specifications:
- Model: DIYCASSETTE09HP-230D25-O
- BTU Rating: 9,000 BTU
- Voltage: 230V
- Mounting Style: One-Way Ceiling Cassette
- Refrigerant:R-454B
- Compatible Line Sets: MRCOOL® Pre-charged Quick Connect® line sets
Offering the perfect balance of aesthetics, functionality, and ease of use, the MRCOOL® OuttaSight® 9K BTU One-Way Ceiling Cassette is a smart choice for energy-conscious homeowners seeking seamless climate control.
16ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY16-1438-O is a pre-charged 16-foot line set designed specifically for MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. It is engineered to simplify installation for homeowners and HVAC professionals alike, while maintaining efficiency and refrigerant integrity without the need for vacuuming or charging.
This lineset offers a flexible, durable, and easy-to-connect solution that supports the revolutionary MRCOOL DIY ductless mini-split systems. The Quick Connect® fittings provide a secure and tight seal, ensuring a hassle-free installation and long-term reliability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with environmentally friendly R-454B
- Compatibility: Designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for fast, tool-free installation
- Insulation: High-quality insulation for efficient thermal performance and reduced energy loss
- Corrosion Resistance: Durable construction resists environmental wear and corrosion
This lineset is ideal for both first-time installations and replacements, ensuring optimal performance and easy integration with compatible MRCOOL® systems. With a 100% DIY approach, this component allows users to complete professional-level installations without special tools or equipment.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
25ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY25-1438-O 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY25-1438-O is a 25-foot pre-charged line set engineered for easy installation with MRCOOL DIY 6K, 9K, and 12K indoor units that utilize R-454B refrigerant. This lineset offers an efficient, mess-free solution for both homeowners and professionals who want a clean and secure HVAC connection without the need for vacuum pumps or refrigerant handling.
Equipped with Quick Connect fittings, this lineset simplifies the installation process by providing a tight, reliable seal—eliminating the need for special tools. The pre-charged refrigerant lines and durable insulation deliver excellent performance and energy efficiency in a wide range of settings.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Works with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation for optimized thermal performance and protection
- Construction: Built with corrosion-resistant materials for long-term durability
Perfect for extending the installation distance or replacing an existing lineset, the DIY25-1438-O provides a flexible and user-friendly option for MRCOOL® mini-split systems. Its DIY design ensures users can achieve a professional-grade setup with minimal effort and maximum confidence.
35ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY35-1438C-O 35ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY35-1438C-O is a 35-foot pre-charged lineset with an integrated DIY Pro Cable, engineered for compatibility with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This advanced installation component simplifies setup while delivering excellent durability, refrigerant integrity, and safety.
Equipped with patented Quick Connect fittings, this lineset allows for a hassle-free, tool-free connection between indoor and outdoor units. The added DIY Pro Cable enhances reliability and safety during installation, offering pre-attached wiring in a single bundled solution. It's the ideal choice for extended installations requiring both performance and convenience.
Key Features:
- Length: 35 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with R-454B refrigerant for environmentally responsible performance
- Compatibility: Designed for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy and secure installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and increased safety
- Insulation: High-quality insulation ensures efficiency and protection from condensation
- Durability: Built with corrosion-resistant materials for long-term use
The DIY35-1438C-O is the perfect solution for users seeking an extended lineset with built-in power and communication cabling. Its all-in-one design streamlines setup and supports reliable performance in MRCOOL® DIY mini-split systems.
50ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY50-1438C-O 50ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY50-1438C-O is a 50-foot pre-charged lineset with an integrated DIY Pro Cable, designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This extended-length lineset offers a convenient, all-in-one solution for efficient and reliable HVAC installations.
Featuring patented Quick Connect fittings, this lineset enables a quick and secure connection between indoor and outdoor units without specialized tools. The integrated DIY Pro Cable streamlines wiring and enhances installation safety, making it ideal for professional-quality DIY projects.
Key Features:
- Length: 50 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Suitable for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy, tool-free installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
- Insulation: High-quality insulation to improve energy efficiency and prevent condensation
- Durability: Constructed with corrosion-resistant materials for lasting performance
This 50-foot lineset with integrated Pro Cable is perfect for installations requiring longer reach and professional-grade convenience. It ensures reliable operation and an efficient setup for MRCOOL® DIY mini-split systems.
Top reviews
- Great product, install level medium.Installed a 2 zone system in my beach cottage and it was fairly straight forward install, definitely took longer than I expected but taking the extra time to double and triple check measurements and location of the units was well worth it. The equipment itself is well made and I really like the design except for one thing. The USB port access for the smart HVAC dongle has a very stubborn cover that is difficult to remove without cracking the plastic lock tab. I broke it on one and got lucky with the second one. This could definitely be made a little bit better. It didn’t affect the function of it and I was able to close it back up ok, but hated that I cracked off a piece of a brand new machine. I have been able to test both the heat and AC function and so far so good. Love that I can control it from the app when I’m not at the house since I live 2 hours away. Overall a great product and price and HVAC direct was very easy to deal with and answered quickly when I had questions about separate shipping of some of the components. Thanks!
Posted on
Customer Questions
Why Choose MRCOOL?
MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
