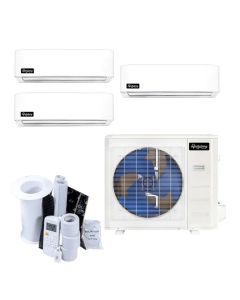

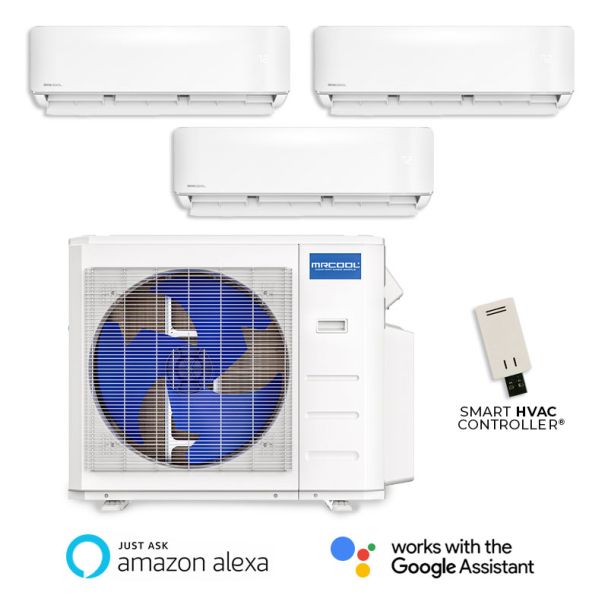

27,000 BTU MRCOOL DIY 5th Gen 23 SEER2 Tri Zone Wall Mount Mini Split Heat Pump System - R454B | 230V - 9 + 12 + 12

MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler 230v

The MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler offers powerful, energy-efficient heating and cooling for small to mid-sized spaces. Engineered with the do-it-yourself homeowner in mind, this 230-volt unit combines superior performance with simplified installation and smart home compatibility. It is part of the advanced 5th Generation MRCOOL® DIY lineup, bringing comfort, control, and convenience to your fingertips.

Key Features:

• High Efficiency: Delivers a strong balance of comfort and energy savings with high SEER2 performance ratings.
• Easy DIY Installation
• Smart Home Ready: Works with the MRCOOL® SmartHVAC app and is compatible with Amazon Alexa and Google Assistant.
• Quiet Operation: Minimizes indoor noise for enhanced comfort and relaxation.
• Auto Restart: Automatically resumes operation after a power outage with previous settings restored.
• Multiple Modes: Offers heating, cooling, dehumidification, and fan-only modes to adapt to varying climate needs.
• Compact Wall-Mount Design: Saves space while delivering effective room-wide air circulation.

Specifications:

• Model Number: DIY-09-HP-WMAH-230D25-O
• Voltage: 230V
• Cooling/Heating Capacity: 9,000 BTU
• Refrigerant Type: R-454B
• Mounting: Wall-mounted

Whether you're upgrading your comfort system or outfitting a new area, the MRCOOL 9k DIY Mini-Split Air Handler provides reliable performance, energy efficiency, and easy installation. It’s the perfect choice for those looking for comfort without the hassle of traditional HVAC setups.

MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler 230v

The MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler is an efficient, user-friendly solution for heating and cooling medium-sized spaces. With a capacity of 12,000 BTU and a 230-volt configuration, this air handler is part of the innovative MRCOOL® DIY series, designed for fast installation without specialized HVAC tools or training. Ideal for homeowners looking to upgrade their comfort without added labor costs, it combines smart technology with dependable performance.

Key Features:

• DIY-Friendly Installation
• Efficient Performance: High SEER2 efficiency helps reduce energy bills while maintaining reliable comfort all year long.
• Smart Controls: Compatible with the MRCOOL® SmartHVAC app, as well as Alexa and Google Assistant, for remote operation and scheduling.
• Low Noise Operation: Engineered for quiet performance, making it perfect for bedrooms, offices, and other quiet zones.
• Versatile Functionality: Supports cooling, heating, fan-only, and dehumidification modes to suit any seasonal need.
• Auto Restart and Sleep Mode: Automatically resumes with previous settings after power outages and adjusts temperatures overnight for energy savings.
• Wall-Mounted Design: Sleek and compact unit fits easily into most interior layouts without taking up valuable floor space.

Specifications:

• Model Number: DIY-12-HP-WMAH-230D25-O
• Voltage: 230V
• Cooling/Heating Capacity: 12,000 BTU
• Refrigerant: R-454B
• Mounting Style: Wall-mounted

The MRCOOL® 12k DIY Air Handler delivers the performance and features you need to efficiently control your home’s climate without the complexity of traditional HVAC systems. Ideal for bedrooms, living rooms, and other medium-sized spaces, this unit blends technology, convenience, and cost-saving efficiency into one smart package.

MRCOOL 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v

The MRCOOL® DIY-MULTI4-27HP230D-O is a high-efficiency 5th Generation Multi-Zone Mini-Split Condenser that empowers homeowners to install a powerful ductless HVAC system without professional assistance. Designed for use with MRCOOL DIY indoor air handlers, this 27,000 BTU multi-zone condenser supports up to four zones for customizable comfort throughout the home.

Key Features

• Multi-Zone Flexibility: Supports up to four indoor air handlers of varying BTU capacities, allowing tailored climate control in each zone.
• Energy Efficiency: High SEER2 and HSPF2 ratings ensure optimal performance while keeping utility bills low.
• Smart Home Integration: Wi-Fi compatibility allows control via the SmartHVAC app, Amazon Alexa, or Google Assistant.
• Durable and Weather-Resistant: Engineered with Gold Fin corrosion-resistant coatings and designed to withstand a wide range of ambient temperatures.

Performance Specifications

• Model: DIY-MULTI4-27HP230D-O
• Power Supply: 208/230V, 60Hz, 1Ph
• Cooling Capacity: 27,000 BTU
• Heating Capacity: 28,000 BTU
• SEER2: Up to 20.5
• HSPF2: Up to 8.8

Additional Features

• Auto Restart: Automatically resumes operation after power outage
• Quiet Operation: Operates at low decibel levels for noise-sensitive environments
• Low Ambient Cooling: Operates in outdoor temperatures as low as 5°F for cooling and -13°F for heating
• Multiple Fan Speeds: Customizable airflow for maximum comfort

The MRCOOL 27k DIY 5th Generation Multi-Zone Condenser offers unmatched ease of installation and energy-saving technology. Whether retrofitting an existing system or building new, it delivers outstanding performance, smart convenience, and personalized comfort throughout your home.

DIY25-1412-O 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - R454B

The MRCOOL® DIY25-1412-O is a 25-foot pre-charged lineset designed for MRCOOL DIY 9K, 12K, and 18K indoor units using R-454B refrigerant. This lineset offers a convenient and reliable solution that eliminates the need for vacuum pumps or refrigerant charging during installation.

Featuring Quick Connect fittings, it enables quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing ensure optimal thermal efficiency and long-lasting performance.

Key Features:

• Length: 25 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
• Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
• Compatibility: Compatible with MRCOOL DIY 9K, 12K, and 18K indoor units
• Connection Type: Quick Connect fittings for easy installation
• Insulation: High-quality insulation to prevent condensation and improve energy efficiency
• Durability: Built with corrosion-resistant materials for extended lifespan

This lineset is an excellent choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing hassle-free installation and dependable operation.

DIY16-1412-O 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - R454B

The MRCOOL DIY16-1412-O is a 16-foot pre-charged lineset designed for MRCOOL® DIY 9K, 12K, and 18K indoor units using R-454B refrigerant. This lineset offers an easy-to-install, reliable solution that eliminates the need for vacuum pumps or refrigerant charging.

Featuring Quick Connect fittings, it allows for quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing provide excellent thermal performance and long-lasting durability.

Key Features:

• Length: 16 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
• Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
• Compatibility: Compatible with MRCOOL DIY 9K, 12K, and 18K indoor units
• Connection Type: Quick Connect fittings for tool-free installation
• Insulation: High-quality insulation to prevent condensation and improve energy efficiency
• Durability: Built with corrosion-resistant materials for extended service life

This lineset is an ideal choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing an efficient and hassle-free installation.

DIY50-1438C-O 50ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B

The MRCOOL® DIY50-1438C-O is a 50-foot pre-charged lineset with an integrated DIY Pro Cable, designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This extended-length lineset offers a convenient, all-in-one solution for efficient and reliable HVAC installations.

Featuring patented Quick Connect fittings, this lineset enables a quick and secure connection between indoor and outdoor units without specialized tools. The integrated DIY Pro Cable streamlines wiring and enhances installation safety, making it ideal for professional-quality DIY projects.

Key Features:

• Length: 50 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
• Compatibility: Suitable for MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for easy, tool-free installation
• Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
• Insulation: High-quality insulation to improve energy efficiency and prevent condensation
• Durability: Constructed with corrosion-resistant materials for lasting performance

This 50-foot lineset with integrated Pro Cable is perfect for installations requiring longer reach and professional-grade convenience. It ensures reliable operation and an efficient setup for MRCOOL® DIY mini-split systems.

DIY35-1438C-O 35ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B

The MRCOOL® DIY35-1438C-O is a 35-foot pre-charged lineset with an integrated DIY Pro Cable, engineered for compatibility with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This advanced installation component simplifies setup while delivering excellent durability, refrigerant integrity, and safety.

Equipped with patented Quick Connect fittings, this lineset allows for a hassle-free, tool-free connection between indoor and outdoor units. The added DIY Pro Cable enhances reliability and safety during installation, offering pre-attached wiring in a single bundled solution. It's the ideal choice for extended installations requiring both performance and convenience.

Key Features:

• Length: 35 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with R-454B refrigerant for environmentally responsible performance
• Compatibility: Designed for MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for easy and secure installation
• Pro Cable: Integrated DIY Pro Cable for simplified wiring and increased safety
• Insulation: High-quality insulation ensures efficiency and protection from condensation
• Durability: Built with corrosion-resistant materials for long-term use

The DIY35-1438C-O is the perfect solution for users seeking an extended lineset with built-in power and communication cabling. Its all-in-one design streamlines setup and supports reliable performance in MRCOOL® DIY mini-split systems.

DIY25-1438-O 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B

The MRCOOL DIY25-1438-O is a 25-foot pre-charged line set engineered for easy installation with MRCOOL DIY 6K, 9K, and 12K indoor units that utilize R-454B refrigerant. This lineset offers an efficient, mess-free solution for both homeowners and professionals who want a clean and secure HVAC connection without the need for vacuum pumps or refrigerant handling.

Equipped with Quick Connect fittings, this lineset simplifies the installation process by providing a tight, reliable seal—eliminating the need for special tools. The pre-charged refrigerant lines and durable insulation deliver excellent performance and energy efficiency in a wide range of settings.

Key Features:

• Length: 25 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
• Compatibility: Works with MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for tool-free installation
• Insulation: High-quality insulation for optimized thermal performance and protection
• Construction: Built with corrosion-resistant materials for long-term durability

Perfect for extending the installation distance or replacing an existing lineset, the DIY25-1438-O provides a flexible and user-friendly option for MRCOOL® mini-split systems. Its DIY design ensures users can achieve a professional-grade setup with minimal effort and maximum confidence.

DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B

The MRCOOL DIY16-1438-O is a pre-charged 16-foot line set designed specifically for MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. It is engineered to simplify installation for homeowners and HVAC professionals alike, while maintaining efficiency and refrigerant integrity without the need for vacuuming or charging.

This lineset offers a flexible, durable, and easy-to-connect solution that supports the revolutionary MRCOOL DIY ductless mini-split systems. The Quick Connect® fittings provide a secure and tight seal, ensuring a hassle-free installation and long-term reliability.

Key Features:

• Length: 16 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with environmentally friendly R-454B
• Compatibility: Designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for fast, tool-free installation
• Insulation: High-quality insulation for efficient thermal performance and reduced energy loss
• Corrosion Resistance: Durable construction resists environmental wear and corrosion

This lineset is ideal for both first-time installations and replacements, ensuring optimal performance and easy integration with compatible MRCOOL® systems. With a 100% DIY approach, this component allows users to complete professional-level installations without special tools or equipment.
