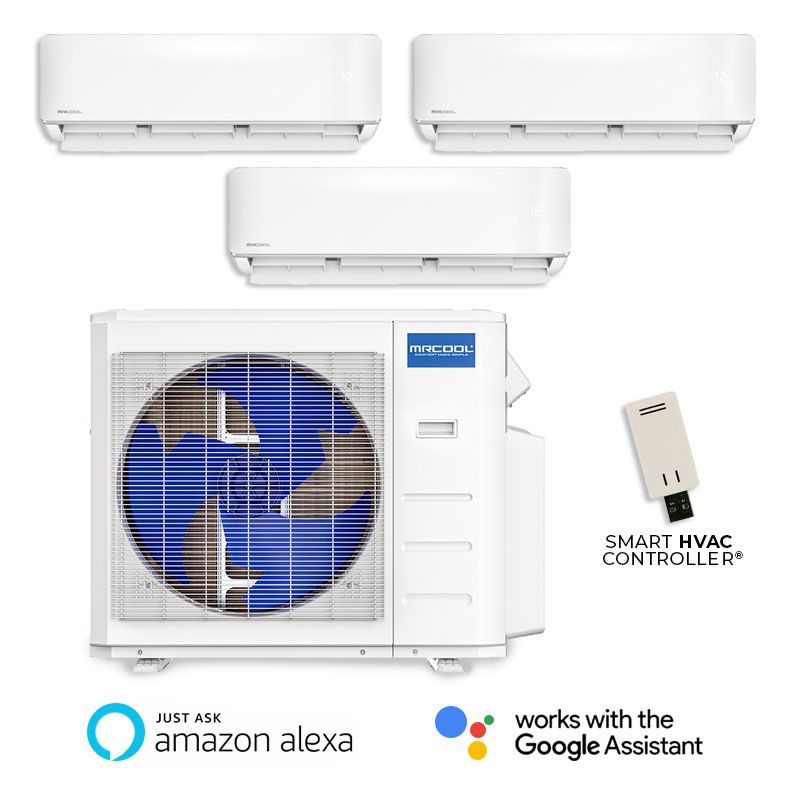

27,000 BTU MRCOOL DIY 5th Gen 23 SEER2 Tri Zone Wall Mount Mini Split Heat Pump System – R454B | 230V – 6 + 6 + 24

MRCOOL® 6k DIY 5th Generation Mini-Split Air Handler 230v

The MRCOOL® 6k DIY 5th Generation Mini-Split Air Handler is a compact, energy-efficient solution designed for single-zone comfort. Ideal for smaller spaces, this 230-volt unit delivers reliable heating and cooling performance while supporting the full functionality of the MRCOOL® DIY series. With a focus on flexibility and user-friendly installation, it's perfect for homeowners looking for a cost-effective and convenient HVAC upgrade.

Key Features:

• Energy Efficiency: High SEER2 ratings ensure lower energy consumption and long-term cost savings.
• DIY Installation: Designed to be installed without the need for professional HVAC labor, thanks to the pre-charged line sets and easy-to-follow setup.
• Quiet Operation: Operates at low sound levels to maintain a peaceful indoor environment.
• Wi-Fi Compatibility: Integrates with the MRCOOL® SmartHVAC app for remote control through your smartphone or smart home system.
• Compact Design: Small footprint makes it ideal for rooms with limited wall space while still delivering efficient comfort.
• Auto Restart and Timer Functions: Built-in convenience features enhance usability and system responsiveness.
• Multi-Speed Fan: Offers adjustable airflow settings to suit your comfort needs year-round.

Specifications:

• Model Number: DIY-06-HP-WMAH-230D25-O
• Voltage: 230V
• Cooling Capacity: 6,000 BTU
• Refrigerant Type: R-454B
• Mounting Type: Wall-mounted

This air handler is part of the MRCOOL® 5th Generation DIY system, offering high efficiency, ease of use, and superior performance. Whether you're outfitting a new room or replacing an older unit, the 6k Mini-Split Air Handler brings reliable, modern climate control within reach of any homeowner.

MRCOOL 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v

The MRCOOL® DIY-MULTI4-27HP230D-O is a high-efficiency 5th Generation Multi-Zone Mini-Split Condenser that empowers homeowners to install a powerful ductless HVAC system without professional assistance. Designed for use with MRCOOL DIY indoor air handlers, this 27,000 BTU multi-zone condenser supports up to four zones for customizable comfort throughout the home.

Key Features

• Multi-Zone Flexibility: Supports up to four indoor air handlers of varying BTU capacities, allowing tailored climate control in each zone.
• Energy Efficiency: High SEER2 and HSPF2 ratings ensure optimal performance while keeping utility bills low.
• Smart Home Integration: Wi-Fi compatibility allows control via the SmartHVAC app, Amazon Alexa, or Google Assistant.
• Durable and Weather-Resistant: Engineered with Gold Fin corrosion-resistant coatings and designed to withstand a wide range of ambient temperatures.

Performance Specifications

• Model: DIY-MULTI4-27HP230D-O
• Power Supply: 208/230V, 60Hz, 1Ph
• Cooling Capacity: 27,000 BTU
• Heating Capacity: 28,000 BTU
• SEER2: Up to 20.5
• HSPF2: Up to 8.8

Additional Features

• Auto Restart: Automatically resumes operation after power outage
• Quiet Operation: Operates at low decibel levels for noise-sensitive environments
• Low Ambient Cooling: Operates in outdoor temperatures as low as 5°F for cooling and -13°F for heating
• Multiple Fan Speeds: Customizable airflow for maximum comfort

The MRCOOL 27k DIY 5th Generation Multi-Zone Condenser offers unmatched ease of installation and energy-saving technology. Whether retrofitting an existing system or building new, it delivers outstanding performance, smart convenience, and personalized comfort throughout your home.

MRCOOL 24k DIY 5th Generation Mini-Split Air Handler 230V

The MRCOOL DIY 24k BTU 5th Generation Mini-Split Air Handler delivers powerful, efficient climate control with the convenience of true DIY installation. Perfect for larger spaces, this 230V unit is designed for homeowners who want high performance and ease of use without relying on professional HVAC services.

Featuring MRCOOL’s innovative DIY Quick Connect line set technology, this air handler allows for fast, tool-free setup. Combined with smart functionality and quiet operation, it offers year-round comfort with intuitive control and minimal maintenance.

Key Features

• DIY Quick Connect Installation: No vacuuming or charging required—pre-charged linesets make setup fast, easy, and safe for homeowners.
• 24,000 BTU Capacity: Effectively heats and cools spaces up to 1,000 sq. ft. with powerful, efficient performance.
• Smart HVAC Integration: Control from anywhere using the MRCOOL SmartHVAC app, Amazon Alexa, or Google Assistant.
• Leakage Detection: Alerts you in the event of a refrigerant leak to protect your system and ensure safe operation.
• Auto Restart: Automatically resumes operation after power outages for continuous comfort.
• Low Ambient Cooling: Provides effective cooling even in outdoor temperatures as low as 5°F, ideal for all-season use.
• Quiet Performance: Operates at whisper-quiet levels for a peaceful indoor environment.
• Timer & Sleep Mode: Customizable features that enhance comfort and save energy during off-hours.

Technical Highlights

• Model: DIY-24-HP-WMAH-230D25-O
• Power Supply: 208/230V, 60Hz, 1 Phase
• Air Flow (H/M/L): 941/765/618 CFM
• Sound Levels (H/M/L): 51/46/41 dB(A)
• Mounting Type: Wall Mounted
• Coverage Area: Up to 1,000 sq. ft.

The MRCOOL DIY 5th Gen 24k Air Handler is a powerful, user-friendly HVAC solution that provides professional-level comfort and control—without the need for a professional installer. Ideal for larger rooms or open spaces, this unit delivers dependable heating and cooling with simple, smart operation.

DIY50-1438C-O 50ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B

The MRCOOL® DIY50-1438C-O is a 50-foot pre-charged lineset with an integrated DIY Pro Cable, designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This extended-length lineset offers a convenient, all-in-one solution for efficient and reliable HVAC installations.

Featuring patented Quick Connect fittings, this lineset enables a quick and secure connection between indoor and outdoor units without specialized tools. The integrated DIY Pro Cable streamlines wiring and enhances installation safety, making it ideal for professional-quality DIY projects.

Key Features:

• Length: 50 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
• Compatibility: Suitable for MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for easy, tool-free installation
• Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
• Insulation: High-quality insulation to improve energy efficiency and prevent condensation
• Durability: Constructed with corrosion-resistant materials for lasting performance

This 50-foot lineset with integrated Pro Cable is perfect for installations requiring longer reach and professional-grade convenience. It ensures reliable operation and an efficient setup for MRCOOL® DIY mini-split systems.

DIY35-1438C-O 35ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B

The MRCOOL® DIY35-1438C-O is a 35-foot pre-charged lineset with an integrated DIY Pro Cable, engineered for compatibility with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This advanced installation component simplifies setup while delivering excellent durability, refrigerant integrity, and safety.

Equipped with patented Quick Connect fittings, this lineset allows for a hassle-free, tool-free connection between indoor and outdoor units. The added DIY Pro Cable enhances reliability and safety during installation, offering pre-attached wiring in a single bundled solution. It's the ideal choice for extended installations requiring both performance and convenience.

Key Features:

• Length: 35 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with R-454B refrigerant for environmentally responsible performance
• Compatibility: Designed for MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for easy and secure installation
• Pro Cable: Integrated DIY Pro Cable for simplified wiring and increased safety
• Insulation: High-quality insulation ensures efficiency and protection from condensation
• Durability: Built with corrosion-resistant materials for long-term use

The DIY35-1438C-O is the perfect solution for users seeking an extended lineset with built-in power and communication cabling. Its all-in-one design streamlines setup and supports reliable performance in MRCOOL® DIY mini-split systems.

DIY25-1438-O 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B

The MRCOOL DIY25-1438-O is a 25-foot pre-charged line set engineered for easy installation with MRCOOL DIY 6K, 9K, and 12K indoor units that utilize R-454B refrigerant. This lineset offers an efficient, mess-free solution for both homeowners and professionals who want a clean and secure HVAC connection without the need for vacuum pumps or refrigerant handling.

Equipped with Quick Connect fittings, this lineset simplifies the installation process by providing a tight, reliable seal—eliminating the need for special tools. The pre-charged refrigerant lines and durable insulation deliver excellent performance and energy efficiency in a wide range of settings.

Key Features:

• Length: 25 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
• Compatibility: Works with MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for tool-free installation
• Insulation: High-quality insulation for optimized thermal performance and protection
• Construction: Built with corrosion-resistant materials for long-term durability

Perfect for extending the installation distance or replacing an existing lineset, the DIY25-1438-O provides a flexible and user-friendly option for MRCOOL® mini-split systems. Its DIY design ensures users can achieve a professional-grade setup with minimal effort and maximum confidence.

DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B

The MRCOOL DIY16-1438-O is a pre-charged 16-foot line set designed specifically for MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. It is engineered to simplify installation for homeowners and HVAC professionals alike, while maintaining efficiency and refrigerant integrity without the need for vacuuming or charging.

This lineset offers a flexible, durable, and easy-to-connect solution that supports the revolutionary MRCOOL DIY ductless mini-split systems. The Quick Connect® fittings provide a secure and tight seal, ensuring a hassle-free installation and long-term reliability.

Key Features:

• Length: 16 feet of pre-charged copper tubing
• Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
• Refrigerant: Pre-charged with environmentally friendly R-454B
• Compatibility: Designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units
• Connection Type: Quick Connect fittings for fast, tool-free installation
• Insulation: High-quality insulation for efficient thermal performance and reduced energy loss
• Corrosion Resistance: Durable construction resists environmental wear and corrosion

This lineset is ideal for both first-time installations and replacements, ensuring optimal performance and easy integration with compatible MRCOOL® systems. With a 100% DIY approach, this component allows users to complete professional-level installations without special tools or equipment.
