28,400 BTU Mitsubishi Multi-Zone Ductless H2i Hyper Heat Pump Condenser w/ Base Pan Heater-R410A

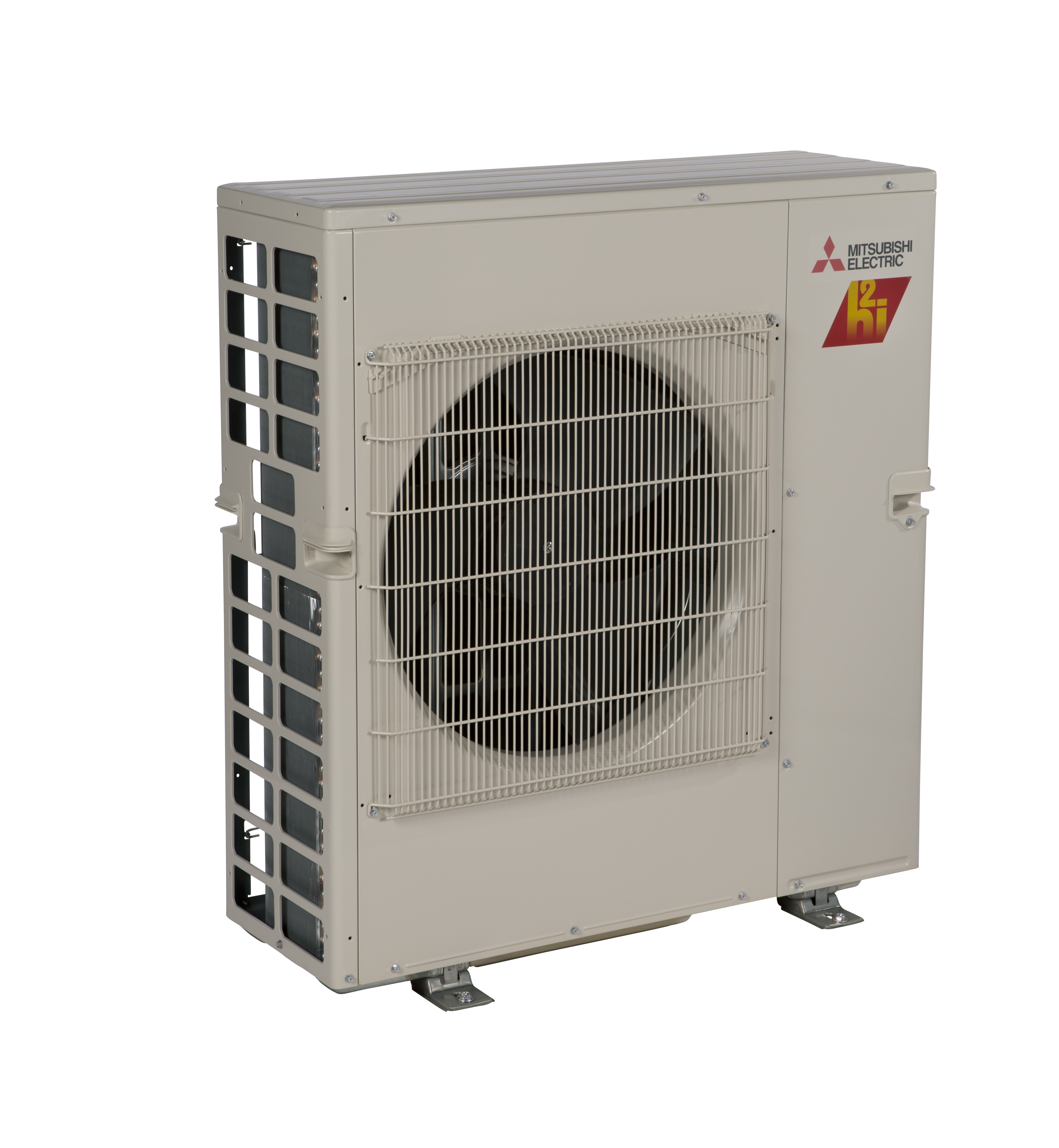

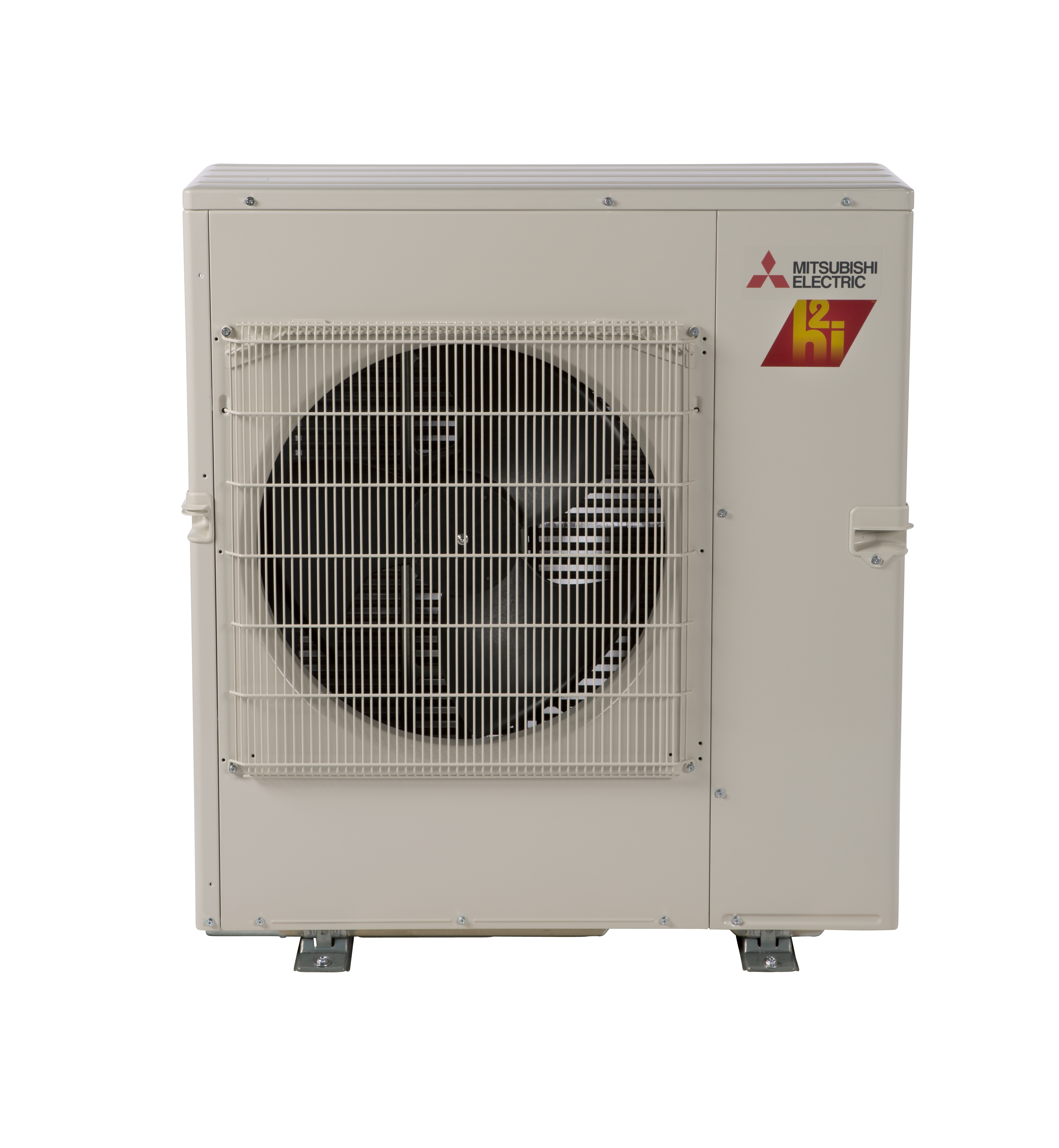

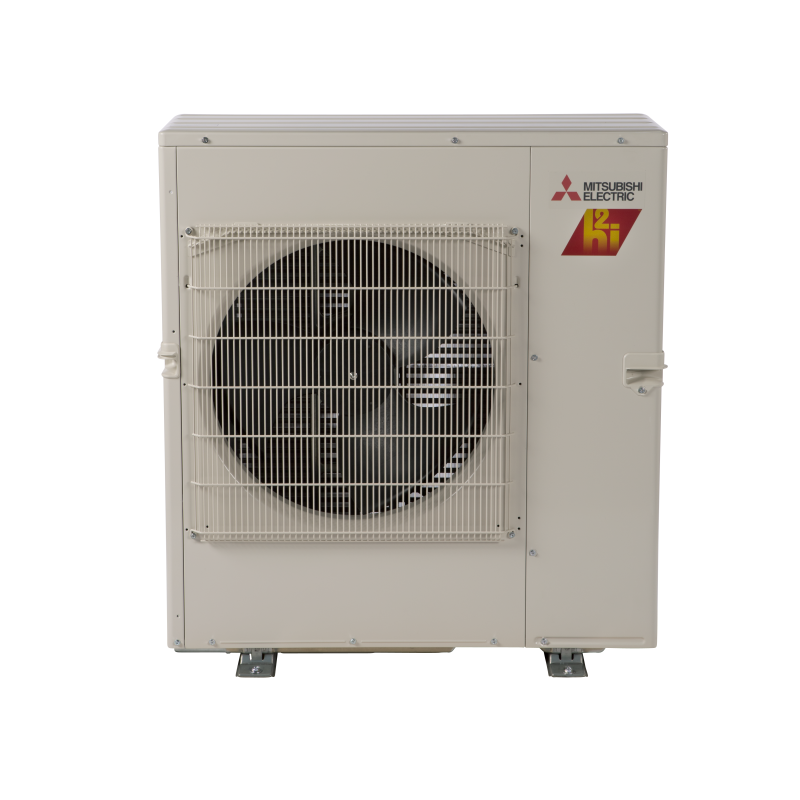

Mitsubishi MXZ-3C30NAHZ2 Multi-Zone Heat Pump Condenser

The Mitsubishi MXZ-3C30NAHZ2 is a high-performance, multi-zone heat pump condenser designed for residential and light commercial applications. Part of Mitsubishi's M-Series Hyper-Heating INVERTER™ (H2i) line, it provides efficient heating and cooling across multiple zones, ideal for cold climates.

Key Specifications

• Cooling Capacity: Up to 28,600 BTU/h
• Heating Capacity: Up to 36,000 BTU/h
• Zones Supported: 1 to 3 indoor units (wall-mounted, floor-mounted, or ceiling cassette)
• Energy Efficiency:
  • SEER: Up to 18.0
  • EER: Up to 12.5
  • HSPF: Up to 11.0
• Operating Temperature Range:
  • Heating: Down to -13°F
  • Cooling: Down to 14°F
• Sound Level: As low as 58 dB(A)
• Compressor: Variable-speed INVERTER-driven
• Protection Features: High-pressure, thermal, and overcurrent protections
• Dimensions: 13" D x 37.4" W x 41.3" H
• Weight: 189 lbs
• Line Set Connections:
  • Liquid: 1/4"
  • Gas: 1/2" for Zone A, 3/8" for Zones B and C

Performance Highlights

The MXZ-3C30NAHZ2 maintains 100% heating capacity down to 5°F and operates reliably in temperatures as low as -13°F. Hyper-Heating INVERTER™ technology ensures consistent comfort and energy efficiency during extreme weather conditions.

Installation Considerations

• Minimum Installed Capacity: 12,000 BTU/h per indoor unit
• Maximum Total Connected Capacity: 130% of outdoor unit capacity
• Line Set Length:
  • Maximum: 230 feet
  • Maximum Elevation Difference: 49 feet
• Power Supply: 208/230V
• Recommended Breaker Size: 40 Amps
