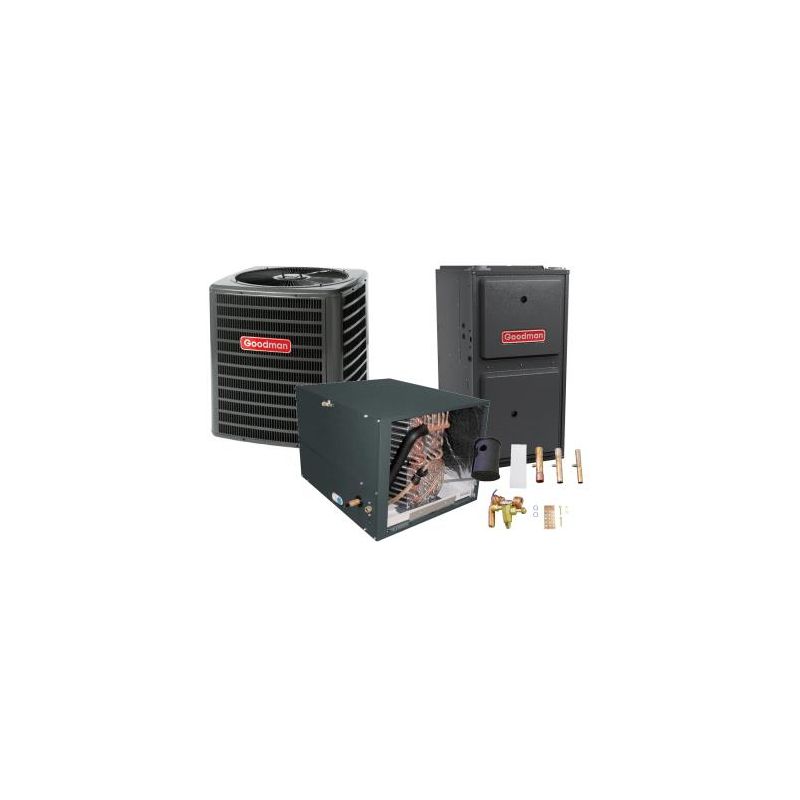

3.5 Ton 14.5 SEER 98% AFUE 80,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal
Model: GSZ160421 / CHPF3743C6 / GMVM970804CN / TX5N4

Price as configured: $4,757.95

3.5 Ton 14.5 SEER 98% AFUE 80,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

By: Goodman Model: GSZ160421 / CHPF3743C6 / GMVM970804CN / TX5N4 ID: 30494

More Views

Suggested Retail: $5,689.95

Price as configured: $4,757.95

Bread Checkout

FREE SHIPPING
Goodman Manufacturing
Ships in 4-6 Weeks
AHRI Certified
202603403

New
Requires: Plastic / PVC Flue Vent Piping

* Required Fields

Price as configured: $4,757.95

Accessories

Description

Details

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMVM970804CN is a perfect choice for heating.

Not intended for use in mobile homes.

80,000 BTU 98% AFUE Upflow Variable Speed Goodman Gas Furnace 1600 CFM

OVERVIEW

With a variable speed blower motor and modulating gas valves, the GMVM970804CN is from the best furnace series that Goodman has to offer. At 97% efficient, this furnace has the highest possible efficiency available in today’s technology and offered by Goodman. If you want the best of the best for your home, the GMVM970804CN is the furnace for you.

QUICK FACTS

  • Ideal to heat a medium-sized house (in an ideal climate)
  • 80,000 BTU 97% AFUE modulating variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be installed in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU

With an input of 80,000 BTU’s and an efficiency of 97%, the GMVM970804CN has an output of 77,600 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 97%. As such, the GMVM970804CN Goodman gas furnace is designed to be able to cover up to a medium-sized house in ideal climate conditions.

97% AFUE

With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GMVM970804CN gas furnace is 97% efficient, meaning that a whopping 97% of the gas going into the furnace is used to heat your home, and only 3% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GMVM970804CN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.

Modulating Variable Speed Furnace

Goodman manufactured the GMVM970804CN gas furnace to utilize the best burner and blower technologies available. With a modulating gas valve and a variable speed blower motor, the GMVM970804CN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.

Warranty

The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.

Durability and Reliability

Not stopping at an enhanced functionality, Goodman designed the GMVM970804CN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GMVM970804CN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.

Fuel Types

Out of the factory, the GMVM970804CN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.

Installation and Maintenance

For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GMVM970804CN gas furnace can be installed in the upflow or horizontal orientations. The modulating gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GMVM970804CN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.

3.5 Ton 16 SEER Goodman Heat Pump

OVERVIEW

At one of the higher efficiencies on the market, the Goodman GSZ160421 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GSZ160421 is considered a good all-around choice for many applications.

QUICK FACTS

  • Designed to cover a medium-sized house in average climates
  • 3.5 ton, 16 SEER heat pump condenser
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
3.5 ton

The Goodman GSZ160421 heat pump is rated for 3.5 tons, which is normally enough to cover a medium-sized house in average climates. A heat pump coil or air handler is required for this condenser to function, and some indoor units will be larger in tonnage than this condenser in some bundles to maintain the unit’s overall efficiency.

16 SEER

With its high-end 16 SEER efficiency rating, the GSZ160421 is designed to save you money over the entire life of the unit. 16 SEER units will save you about 12% more in energy bills over a 14 SEER system, making this upgrade a smart upgrade to save you money over time with a small increase in your initial investment in the system.

Warranty

The GSZ160421 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet on the GSZ160421 heat pump is designed to be durable in harsh conditions. With its baked-on polyester coat of paint, the unit is approved for up to 500 hours of salt spray. The enhanced durability and paint coat makes the GSZ160421 compliant with 2010 Florida building codes for unit integrity for hurricane-like winds when the unit is properly anchored. For reliability, there is also a built-in bi-flow filter drier that lowers general wear-and-tear on the internals of the unit.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GSZ160421 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels—one on the side and one on the top—to allow for a much easier maintenance procedure should the need for maintenance arise.

Comfort in Mind

The Goodman company has always promoted enhanced comfort, higher efficiency, and lower cost to all of its units. With SmartShift technology and an enhanced sound insulation structure, the GSZ160421 is whisper-quiet, allowing Goodman to continue to follow its goals in achieving the best comfort levels possible at a low cost.

3 to 3.5 Ton 21" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF3743C6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF3743C6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 3 to 3.5 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
3 to 3.5 Tons

At an output of 3 to 3.5 tons, the Goodman CHPF3743C6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF3743C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF3743C6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Goodman 3.5 to 5 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX5N4, you can be assured that your three-and-a-half to five ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX5N4 is a good start.

Product Compatible With
  • Goodman GSX130421 Air Conditioners
  • Goodman GSX130481 Air Conditioners
  • Goodman GSX130601 Air Conditioners
  • Goodman GSX130611 Air Conditioners
  • Goodman DSXC160481 Air Conditioners
  • Goodman DSXC160601 Air Conditioners
  • Goodman DSXC160481 Air Conditioners
  • Goodman DSXC160601 Air Conditioners
  • Goodman GSZ130421 Heat Pumps
  • Goodman GSZ130481 Heat Pumps
  • Goodman GSZ130601 Heat Pumps
  • Goodman SSZ140421 Heat Pumps
  • Goodman SSZ140481 Heat Pumps
  • Goodman SSZ140601 Heat Pumps
  • Goodman SSZ160421 Heat Pumps
  • Goodman SSZ160481 Heat Pumps
  • Goodman SSZ160601 Heat Pumps
  • Goodman DSZC160481 Heat Pumps
  • Goodman DSZC160601 Heat Pumps
  • Goodman DSZC180481 Heat Pumps
  • Goodman DSZC180601 Heat Pumps
  • Goodman CAPF3642*6 Evaporator Coils
  • Goodman CAUF3642*6 Evaporator Coils
  • Goodman CHPF3642B6 Evaporator Coils
  • Goodman CSCF3642N6 Evaporator Coils

Specifications

80,000 BTU 98% AFUE Upflow Variable Speed Goodman Gas Furnace 1600 CFM

skuGMVM970804CN
manufacturerGoodman
afue98%
heating_btu80,000
blower_motorVariable Speed - ECM
cfm1600
configurationUpflow/Horizontal
exhaust_pipePVC
flue_locationRight
flue_requirementPlastic / PVC
energy_starYes
electrical115 V. 1 Phase 60 Hz
burner_stagesModulating
fuel_typeGas
height34.5"
width21"
depth28.75"
weight142.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


3.5 Ton 16 SEER Goodman Heat Pump

skuGSZ160421
manufacturerGoodman
cooling_btu42,000
heating_btu42,000
decibel73
energy_starYes
refrigerantR410A
seer16
compressor_stageSingle Stage
compressor_typeScroll
liquid_valve_size3/8"
suction_valve_size7/8"
electrical208 / 230 V. 1 Phase 60 Hz
max_breaker_size35 amps
min_breaker_size22.4 amps
nominal_capacity3.5 Ton
valve_typeSweat
height36"
width29"
depth29"
weight237.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


3 to 3.5 Ton 21" Goodman Horizontal Evaporator Cased Coil

skuCHPF3743C6
manufacturerGoodman
configurationHorizontal
refrigerantR410A or R22
liquid_line3/8"
suction_line7/8"
nominal_capacity3 Ton to 3.5 Ton
styleA-Coil
height21"
width21.125"
depth26"
weight63.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


Goodman 3.5 to 5 Ton TXV Kit - R-410A

skuTX5N4
manufacturerGoodman
refrigerantR410A
weight2.5000
safety_informationPROPOSITION 65 WARNING
