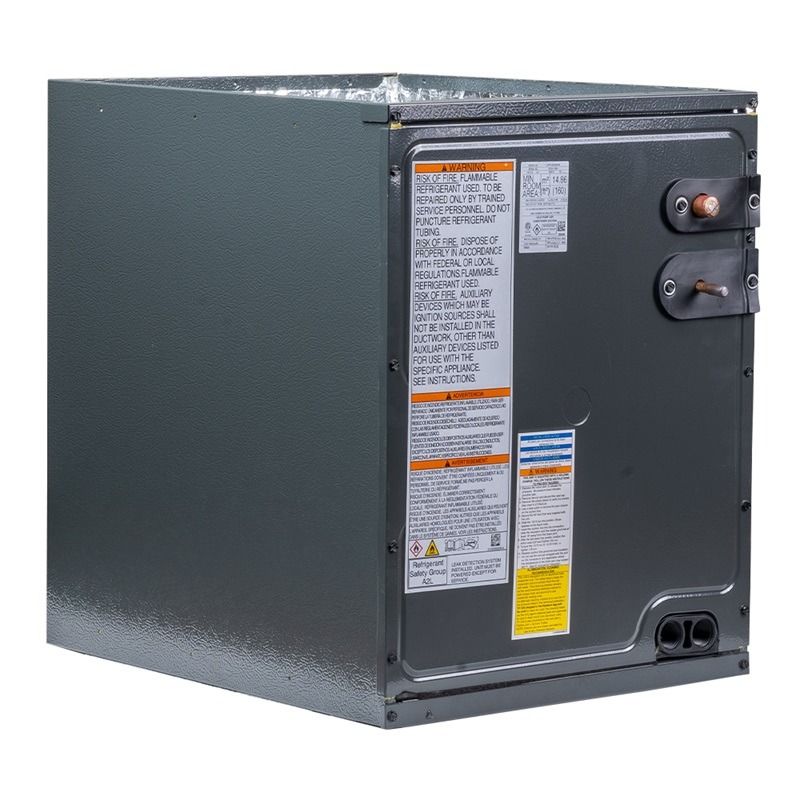

ACiQ 3.5 Ton 24.5" Width Vertical Evaporator Coil - Cased - R32

Dependable Indoor Coil for Split HVAC Setups

This ACiQ cased evaporator coil is designed to work with compatible R32 condensers and furnaces. With a 3.5 ton capacity, 24.5" cabinet width and upflow/downflow installation flexibility, it helps support proper equipment matching for approved split HVAC applications.

Key Benefits

• Indoor Coil for Split HVAC Setups – Works with compatible condensers and furnaces to support system performance.
• 3.5 Ton Capacity – Designed for approved equipment matches where the coil capacity is equal to or greater than the condenser capacity.
• 24.5" Cabinet Width – Helps ensure the coil fits properly with compatible furnace cabinets and installation spaces.
• Upflow/Downflow Installation – Supports installation flexibility for compatible vertical applications.
• Factory-Installed Flowrater – Includes a piston-style metering device for approved matched applications.
• R32 Compatible – Designed for use with compatible R32 refrigerant equipment.

Designed for Compatible Equipment Matching

Proper coil matching is important for system performance, fit, and installation. This coil’s 3.5 ton capacity helps match it to compatible condenser applications, while the 24.5" cabinet width helps determine whether it will fit correctly with the furnace and available installation space.

How the Coil Helps Support Home Comfort

The indoor coil is part of the refrigerant circuit and helps transfer heat as air moves across the coil. In a properly matched system, it works with the condenser, furnace blower, and refrigerant flow controls to support reliable home comfort.

Warranty

When installed according to applicable codes and registered online with ACiQ, this evaporator coil includes:

• 10-Year Parts Limited Warranty

Warranty coverage requires proper installation and online registration. Installation by a qualified HVAC professional is recommended to maintain warranty eligibility.

What’s Included

• ACiQ cased evaporator coil
• Factory-installed flowrater/piston metering device

Recommended Equipment Options

• Compatible Condenser – Used with the coil as part of a compatible split HVAC setup.
• Compatible Gas Furnace – Provides the indoor airflow needed to move air across the coil in compatible applications.

Requirements & Considerations

• Compatible Condenser Match – This coil must be paired with compatible outdoor equipment designed for the correct refrigerant type and approved equipment match.
• Coil Tonnage – Coil capacity should be equal to or greater than the condenser capacity. Do not pair a coil with a condenser that exceeds the coil’s rated capacity.
• Furnace Cabinet Width – Confirm the 24.5" coil cabinet width is compatible with the furnace and available installation space.
• Replacement Planning – When replacing a coil, review whether the condenser, furnace, or overall equipment setup should also be updated.
• Refrigerant Compatibility – Use with compatible R32 equipment and installation requirements.
• Installation Orientation – Confirm the upflow/downflow coil orientation matches the installation application before purchase.
• Professional Installation Recommended – Proper installation by a certified HVAC installer is important for safe operation and warranty coverage.

R32 Refrigerant Compatibility Notice

Disclaimer: This evaporator coil is designed for use with R32 refrigerant systems, classified as an A2L refrigerant. R32 systems must be installed with compatible equipment and any required refrigerant leak detection components according to the product specifications, installation manual, and applicable safety standards. Failure to follow these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-912-1827 if you have any questions.
