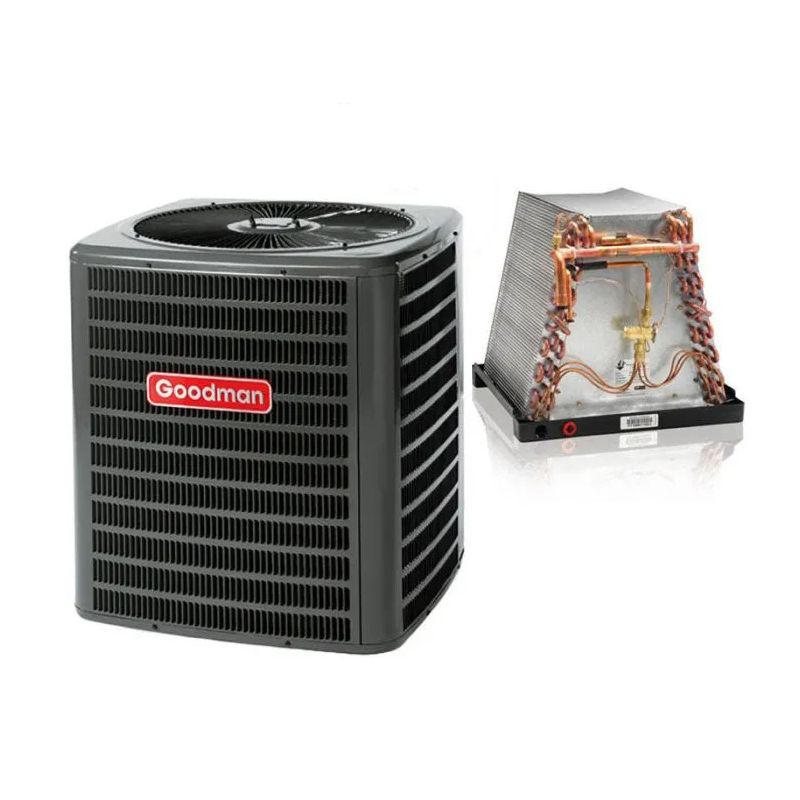

3 Ton 13 SEER Goodman Air Conditioner with Mobile Home Coil

3 Ton 13 SEER Goodman Air Conditioner with Mobile Home Coil

Required Fields *

Customer reviews
Rating:
4.5 out of 5
Out of stock
By

Goodman

Out of stock

Model

GSX130361 / ACIQ-3617UDPBCA

ID

13460

3 Ton ACIQ Hybrid Upgrade - R454B
No Thank You
50 Feet of 3/8" x 7/8"

Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.

30 Feet of 3/8" x 3/4"

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

More Information
Goodman 3 Ton 13 SEER Central Air Conditioner Condenser - R410A Single Stage
FeatureSpec
SKUGSX130361
Weight (in lbs)135
Brand/ManufacturerGoodman
ReplacesGSX130362, GSX130363, GSX130365
UPC782971247966
Cooling BTU36,000
Decibel Level (dBA)74
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)13
Condenser StagesSingle Stage
Compressor TypeReciprocating
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size30 amps
Min. Breaker Size19.1 amps
Tonnage3 Ton
Valve TypeSweat
Height27.5"
Width26"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 3 Ton Uncased Downflow Mobile Home Coil | Copper
FeatureSpec
SKUACiQ-3617UDPBCA
Weight (in lbs)50
Brand/ManufacturerACiQ
ConfigurationDownflow
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Tonnage3 Ton
StyleA-Coil
Height17 1/2"
Width17 3/4"
Depth19 5/8"
Warranty10 Year Limited Warranty
Resources
  • Specification Sheet
  • Installation Guide
  • Warranty Information
  • You will need Adobe® Acrobat® Reader to view PDF documents
    Safety InformationPROPOSITION 65 WARNING
    50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
    FeatureSpec
    SKULS38783850
    Weight (in lbs)30
    Brand/ManufacturerOnline Supply
    UPC094913016586
    Liquid Line3/8"
    Suction Line7/8"
    Suction Line Insulation Thickness3/4"
    ColorBlack
    Length50 feet
    Safety InformationPROPOSITION 65 WARNING
    30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
    FeatureSpec
    SKULS38343830
    Weight (in lbs)35
    Brand/ManufacturerOnline Supply
    UPCna
    Liquid Line3/8"
    Suction Line3/4"
    Suction Line Insulation Thickness3/4"
    ColorBlack
    Length30 feet
    3 Ton ACIQ Hybrid Upgrade - R454B
    FeatureSpec
    SKUACiQ-36-EHPD-UPG
    Weight (in lbs)120
    Brand/ManufacturerACiQ
    RefrigerantR454B
    Safety InformationPROPOSITION 65 WARNING
    Top reviews
    1. Goodman
      Service
      100%
      Quality
      100%
      Price
      100%
      Hands down better then Trane

      Review by

      Posted on

    2. Very satisfied
      Service
      100%
      Quality
      100%
      Price
      100%
      Yes I am very satisfied with our orders.. you were very helpful, fast shipping ..there was some shipping damage .. but the damage was replaced super fast .. I am completely satisfied.. Thank you!

      Review by

      Posted on

    3. Awesome
      Price
      100%
      Service
      100%
      Quality
      100%
      so far everything seems to be working really well as of now. Your service at HVACDirect.com is awesome you didn’t have the unit I ordered and upgraded me for free and I received it the same week I ordered it can’t say enough good about y’all and will recommend you to my friends and I personally will be a repeat customer. Thanks again

      Review by

      Posted on

    4. Satisfied
      Service
      100%
      Quality
      100%
      Price
      100%
      So far am satisfied with air conditioner. Was easy for my daughter to help me order and questions were answered
      as needed. Will use you again if needed.

      Review by

      Posted on

    5. Okay
      Price
      100%
      Service
      100%
      Quality
      80%
      So far, so good

      Review by

      Posted on

    6. Garbage
      Price
      20%
      Service
      20%
      Quality
      20%
      Garbage unit, compressors DO NOT last. Goodman is no help, ruse customer service takes no responsibility whatsoever on their shoddy units like these. Buy ANY other company but avoid Goodman

      Review by

      Posted on

    7. I have installed 5 of these units
      Price
      100%
      Service
      100%
      Quality
      100%
      I manage several properties' and price point coupled with reliability make this brand a smart choice,

      Review by

      Posted on

    8. Great AC Unit
      Quality
      100%
      Price
      100%
      Service
      100%
      This unit was installed 7 1/2 years ago and has given me trouble free and excellent cooling. I couldn't be anymore satisfied.

      Review by

      Posted on

    See more reviews
    Customer Questions
    Does this come with lineset?
    Thank you for your question. The line set can be purchased separately as an accessory for this product. A selection of compatible line set lengths for this system are located next to the product image in a drop down selection box. For more assistance, please give us a call at 1-888-376-5487.
    Did you find what you were looking for?
    Why Choose a Goodman Product?
    Why Choose Goodman?

    For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
