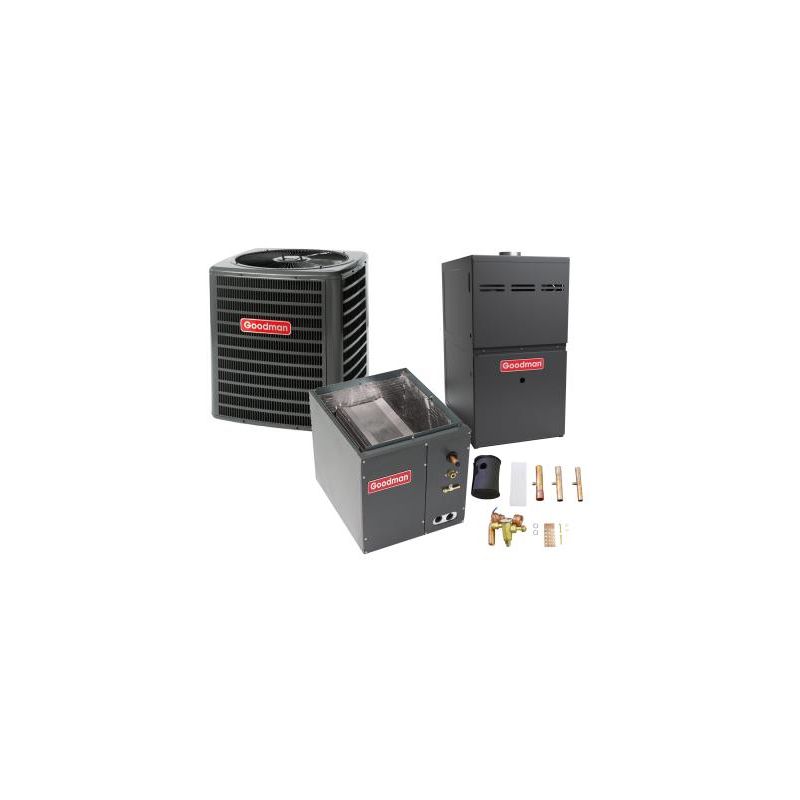

3 Ton 14.5 SEER 80% AFUE 100,000 BTU Goodman Gas Furnace and Heat Pump System - Downflow
Model: GSZ140361 / CAPF4860C6 / GCES801005CN / TX3N4

Price as configured: $3,128.95

3 Ton 14.5 SEER 80% AFUE 100,000 BTU Goodman Gas Furnace and Heat Pump System - Downflow

By: Goodman Model: GSZ140361 / CAPF4860C6 / GCES801005CN / TX3N4 ID: 31292

More Views

Suggested Retail: $3,715.95

Price as configured: $3,128.95

Bread Checkout

FREE SHIPPING
Goodman Manufacturing
Usually Ships in 3-5 Business Days
AHRI Certified
203462859

New
Requires: Metal Flue Vent Piping

* Required Fields

Price as configured: $3,128.95

Accessories

Description

Details

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GCES801005CN is a perfect choice for heating.

Not intended for use in mobile homes.

100,000 BTU 80% AFUE Multi-Speed Single Stage Goodman Gas Furnace - Downflow/Horizontal

OVERVIEW

If you’re looking to reduce your energy bill and improve the comfort of your home, look no further than Goodman’s GCES801005CN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The GCES801005CN single-stage, multi-speed furnace is a great value designed for many applications.

QUICK FACTS

  • This furnace is ideal to heat a smaller house (depending on climate)
  • 100,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU

The GCES801005CN Goodman gas furnace is suitable in output for a small house in ideal climate conditions. The BTU count is the input per hour of the furnace, and the output is 80,000 BTU’s (100,000 x 80% AFUE) per hour.

80% Efficiency Rating

The GCES801005CN Goodman gas furnace has the basic efficiency rating in furnaces on the market today. At 80% efficient, the furnace loses only 20% of fuel going into it to normal furnace operation, and the remaining 80% is used to heat your house. All 80% furnaces such as this one require metal flue venting, and furnaces that are 90% efficient or higher require plastic/pvc flue venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. For the Low NOx equivalent of this furnace, click here. If you have any questions, please contact us.

Single Stage Furnace

A single stage furnace operates using the same amount of energy every time is turns on. The GCES801005CN Goodman gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.

Natural Gas or LP Furnace

From the factory, the GCES801005CN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

Multi-Speed ECM Blower Motor

The GCES801005CN utilizes a multi-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

Instead of a standing pilot light, the GCES801005CN has a newer, more efficient hot surface igniter. Hot surface igniters are much more efficient and safer than standard standing pilot lights.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace’s basic operation.

Heavy Gauge Steel Cabinet

The GCES801005CN Goodman gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace’s design allows for a more protected interior, and less air leakage from the furnace’s operation, resulting in a more quiet operation while still decreasing operation costs.

Ease of Installation

From enhanced operation to efficiency, the Goodman gas furnaces have a lot to offer. However, Goodman’s features don’t stop at quality of unit. The GCES801005CN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.

3 Ton 14 SEER Goodman Heat Pump

OVERVIEW

The Goodman GSZ140361 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140361 is manufactured with high-quality materials to provide a superior comfort in your home.

QUICK FACTS

  • Ideal size to cover a medium-sized house in ideal climates
  • 3 ton, 14 SEER heat pump condenser
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
3 ton

The Goodman GSZ140361 heat pump has a capacity of 3 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14 SEER

At 14 SEER, the GSZ140361 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Warranty

The GSZ140361 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GSZ140361 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GSZ140361 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140361 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

4 to 5 Ton 21" Width Goodman Vertical Evaporator Cased Coil

OVERVIEW

With the CAPF4860C6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPF4860C6 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 4 to 5 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application
4 to 5 Tons

The Goodman CAPF4860C6 evaporator coil is rated for a 4 to 5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.
Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPF4860C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPF4860C6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access.
Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPF4860C6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPF4860C6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.

Goodman 2.5 to 3 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX3N4, you can be assured that your two-and-a-half or three ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX3N4 is a good start.

Product Compatible With
  • Goodman GSX130301 Air Conditioners
  • Goodman GSX130361 Air Conditioners
  • Goodman DSXC160361 Air Conditioners
  • Goodman GSZ130301 Heat Pumps
  • Goodma GSZ130361 Heat Pumps
  • Goodman SSZ140301 Heat Pumps
  • Goodman SSZ140361 Heat Pumps
  • Goodman SSZ140381 Heat Pumps
  • Goodman SSZ160301 Heat Pumps
  • Goodman SSZ160361 Heat Pumps
  • Goodman DSZC160361 Heat Pumps
  • Goodman DSZC180361 Heat Pumps
  • Goodman CAPF3030*6 Evaporator Coils
  • Goodman CAUF3030*6 Evaporator Coils
  • Goodman CAPF3642*6 Evaporator Coils
  • Goodman CAUF3642*6 Evaporator Coils
  • Goodman CHPF3636B6 Evaporator Coils
  • Goodman CSCF3036N6 Evaporator Coils
  • Goodman CSCF3642N6 Evaporator Coils

Specifications

100,000 BTU 80% AFUE Multi-Speed Single Stage Goodman Gas Furnace - Downflow/Horizontal

skuGCES801005CN
manufacturerGoodman
afue80%
heating_btu100,000
blower_motorMulti Speed - ECM
cfm2200
configurationDownflow/Horizontal
exhaust_pipeMetal
flue_requirementMetal
electrical115 V. 1 Phase 60 Hz
burner_stagesSingle
fuel_typeGas
height33 3/8"
width21"
depth28"
weight129.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


3 Ton 14 SEER Goodman Heat Pump

skuGSZ140361
manufacturerGoodman
cooling_btu36,000
heating_btu36,000
decibel74
energy_starYes
refrigerantR410A
seer14
compressor_stageSingle Stage
compressor_typeScroll
liquid_valve_size3/8"
suction_valve_size7/8"
electrical208 / 230 V. 1 Phase 60 Hz
max_breaker_size30 amps
min_breaker_size22.4 amps
nominal_capacity3 Ton
valve_typeSweat
height36"
width29"
depth29"
weight215.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


4 to 5 Ton 21" Width Goodman Vertical Evaporator Cased Coil

skuCAPF4860C6
manufacturerGoodman
configurationUpflow / Downflow
refrigerantR410A or R22
liquid_line3/8"
suction_line7/8"
nominal_capacity4 Ton to 5 Ton
styleA-Coil
height30"
width21"
depth21"
weight41.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


Goodman 2.5 to 3 Ton TXV Kit - R-410A

skuTX3N4
manufacturerGoodman
refrigerantR410A
weight2.5000
safety_informationPROPOSITION 65 WARNING
