Customer Reviews
0% Financing for 24 Months* Available - Buy Now and Pay later!

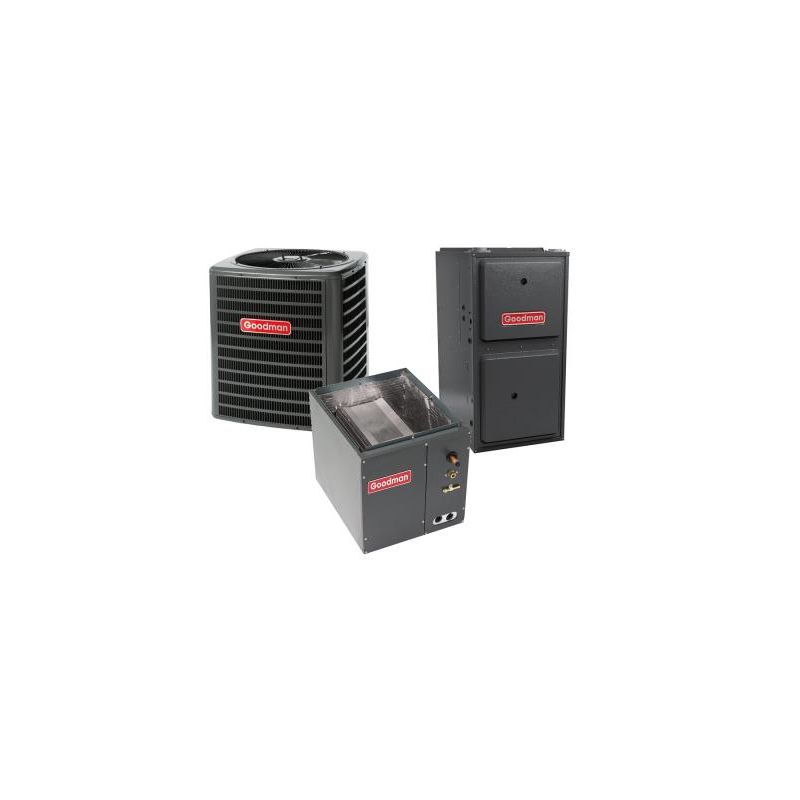

3 Ton 14.5 SEER 96% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Upflow

By

Goodman

Model

GSZ140361 / CAPF4961D6 / GMEC961205DN

ID

30307

Rating:
100% of 100
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:201646371

Your Low Price $2,761.00



Save up to 70% off Local HVAC Prices

Free Shipping

Requires: Plastic / PVC Flue Vent Piping

Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
SAVE $1,063.00
3 Ton 15 SEER 96% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
SAVE $1,082.00
3 Ton 14 SEER 96% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Vertical
SAVE $1,082.00
3 Ton 14 SEER 96% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Upflow/Downflow
SAVE $1,083.00
3 Ton 15 SEER 96% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-positional

Description

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMEC961205DN is a perfect choice for heating.

Not intended for use in mobile homes.

120,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

As a high-efficiency system, the GMEC961205DN Goodman gas furnace features many money saving features. The two-stage, multi-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GMEC961205DN is a good way to go if you want to lower your gas bill.

QUICK FACTS

  • This furnace is ideal to heat a larger house (depending on climate)
  • 120,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

120,000 BTU

Heating up to a larger house in normal conditions, the GMEC961205DN Goodman gas furnace has an input of 120,000 BTU’s and an output of 115,200 BTU’s. The output in this case is determined by taking the input times the efficiency rating.

96% AFUE

The GMEC961205DN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.

Two Stage Multi-Speed Furnace

With a two stage burner, the GMEC961205DN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a multi speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home’s comfort needs and provide a slightly higher efficiency.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman GMEC series furnaces come with a 10-year parts, 10-year unit replacement, and lifetime heat exchanger warranty through the manufacturer.

Durability and Reliability

The exterior casing on the GMEC961205DN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn’t stop at efficiency. The GMEC961205DN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GMEC961205DN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.

4 to 5 Ton 24.5" Width Goodman Vertical Evaporator Cased Coil

The Goodman CAPF4961D6 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioning and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

  • Suitable for use with R-410A and R-22 refrigerants
  • Rust-resistant, thermoplastic drain pans feature a low water-retention design
  • Check flowrater expansion device for heat pump or cooling-only applications
  • Rifled aluminum tubing and louvered aluminum fin coils on the CAPF, CAUF, and CHPF coils
  • AHRI Certified; ETL Listed
  • Foil-face insulation
  • Galvanized-steel, leather-grain finish
  • Architectural Gray paint finish on CAPF and CHPF cased coils
  • Split-seam front for easy access
3 Ton ACiQ Hybrid Upgrade | Extreme Heat
No Thank You

Product Specifications

More Information
120,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal
SKUGMEC961205DN
Weight (in lbs)154.000000
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementPlastic / PVC
Brand/ManufacturerGoodman
Furnace Efficiency / AFUE 96%
Heating BTU120,000
Blower MotorMulti-Speed - ECM
Maximum CFM2000
ConfigurationUpflow/Horizontal
Exhaust PipePVC
Flue LocationRight
Energy StarYes
Electrical115 V. 1 Phase 60 Hz
Burner StagesTwo
Fuel TypeGas
Height34.5"
Width24.5"
Depth28.75"
WarrantyLifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
4 to 5 Ton 24.5" Width Goodman Vertical Evaporator Cased Coil
SKUCAPF4961D6
Weight (in lbs)50.000000
Brand/ManufacturerGoodman
ConfigurationUpflow / Downflow
RefrigerantR410A or R22
Liquid Line3/8"
Suction Line7/8"
Tonnage5 Ton
StyleA-Coil
Height30"
Width24.5"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
3 Ton ACiQ Hybrid Upgrade | Extreme Heat
SKUACIQ-36-HPC-UPG
Weight (in lbs)120.000000
Brand/ManufacturerACiQ
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
No Thank You
SKUNOTHANKYOU
Weight (in lbs)120.000000

Reviews 17

Write Your Own Review
You're reviewing:3 Ton 14.5 SEER 96% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Upflow
Your Rating

Questions and Answers

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.

See What Our Customers are Saying
