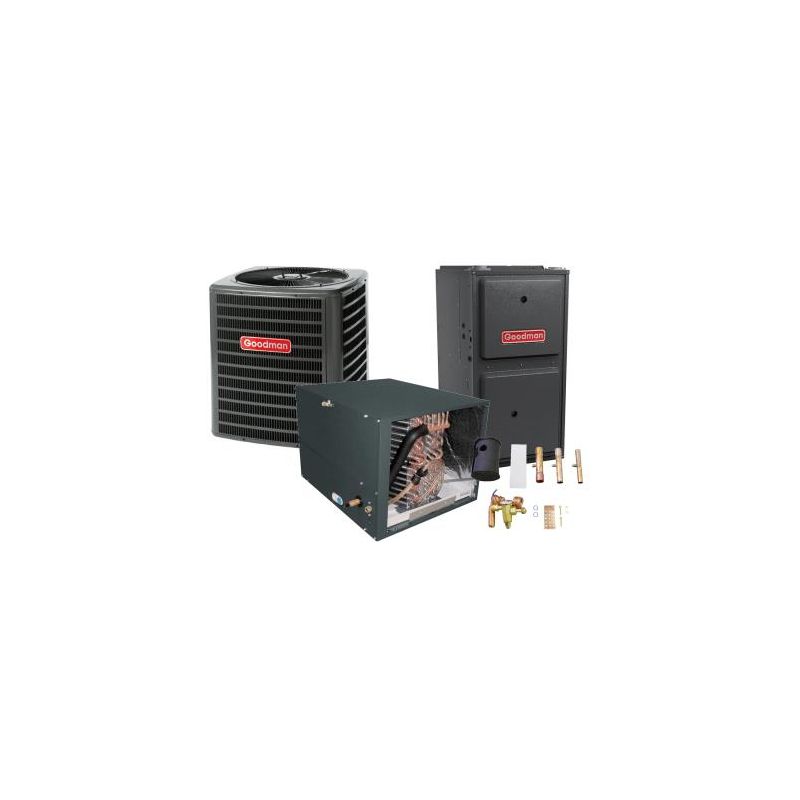

3 Ton 14.5 SEER 98% AFUE 80,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

By

Goodman

Model

GSZ160361 / CHPF3743C6 / GMVM970804CN / TX3N4

ID

30350

Rating:
95% of 100
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:202603382

Your Low Price $3,324.00



Save up to 70% off Local HVAC Prices

Free Shipping

Requires: Plastic / PVC Flue Vent Piping

Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
SAVE $1,210.00
SAVE $1,226.00
SAVE $1,252.00
SAVE $1,254.00

Description

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMVM970804CN is a perfect choice for heating.

Not intended for use in mobile homes.

80,000 BTU 97% AFUE Upflow Variable Speed Goodman Gas Furnace

OVERVIEW

With a variable speed blower motor and modulating gas valves, the GMVM970804CN is from the best furnace series that Goodman has to offer. At 97% efficient, this furnace has the highest possible efficiency available in today’s technology and offered by Goodman. If you want the best of the best for your home, the GMVM970804CN is the furnace for you.

QUICK FACTS

  • Ideal to heat a medium-sized house (in an ideal climate)
  • 80,000 BTU 97% AFUE modulating variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be installed in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

With an input of 80,000 BTU’s and an efficiency of 97%, the GMVM970804CN has an output of 77,600 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 97%. As such, the GMVM970804CN Goodman gas furnace is designed to be able to cover up to a medium-sized house in ideal climate conditions.

97% AFUE

With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GMVM970804CN gas furnace is 97% efficient, meaning that a whopping 97% of the gas going into the furnace is used to heat your home, and only 3% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GMVM970804CN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.

Modulating Variable Speed Furnace

Goodman manufactured the GMVM970804CN gas furnace to utilize the best burner and blower technologies available. With a modulating gas valve and a variable speed blower motor, the GMVM970804CN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.

Warranty

The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.

Durability and Reliability

Not stopping at an enhanced functionality, Goodman designed the GMVM970804CN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GMVM970804CN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.

Fuel Types

Out of the factory, the GMVM970804CN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.

Installation and Maintenance

For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GMVM970804CN gas furnace can be installed in the upflow or horizontal orientations. The modulating gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GMVM970804CN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.

3 to 3.5 Ton 21" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF3743C6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF3743C6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 3 to 3.5 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
3 to 3.5 Tons

At an output of 3 to 3.5 tons, the Goodman CHPF3743C6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF3743C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF3743C6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Goodman 2.5 to 3 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX3N4, you can be assured that your two-and-a-half or three ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX3N4 is a good start.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSX130301 GSX130361 DSXC160361 GSZ130301 GSZ130361 SSZ140301 SSZ140361 SSZ140381 SSZ160301 SSZ160361 DSZC160361 DSZC180361 CAPF3030*6 CAUF3030*6 CAPF3642*6 CAUF3642*6 CHPF3636B6 CSCF3036N6 CSCF3642N6

Product Specifications

More Information
80,000 BTU 97% AFUE Upflow Variable Speed Goodman Gas Furnace
SKUGMVM970804CN
Weight (in lbs)142.000000
AHRI Certificate Number7424266
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementPlastic / PVC
Brand/ManufacturerGoodman
Furnace Efficiency / AFUE 97%
Heating BTU80,000
Blower MotorVariable Speed - ECM
Maximum CFM1600
ConfigurationUpflow/Horizontal
Exhaust PipePVC
Flue LocationRight
Energy StarYes
Electrical115 V. 1 Phase 60 Hz
Burner StagesModulating
Fuel TypePropane, Natural Gas
Height34.5"
Width21"
Depth28.75"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
3 to 3.5 Ton 21" Goodman Horizontal Evaporator Cased Coil
SKUCHPF3743C6
Weight (in lbs)63.000000
Brand/ManufacturerGoodman
ConfigurationHorizontal
RefrigerantR410A or R22
Liquid Line3/8"
Suction Line7/8"
Tonnage3.5 Ton
StyleA-Coil
Height21"
Width21.125"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 2.5 to 3 Ton TXV Kit - R-410A
SKUTX3N4
Weight (in lbs)2.500000
Brand/ManufacturerGoodman
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
