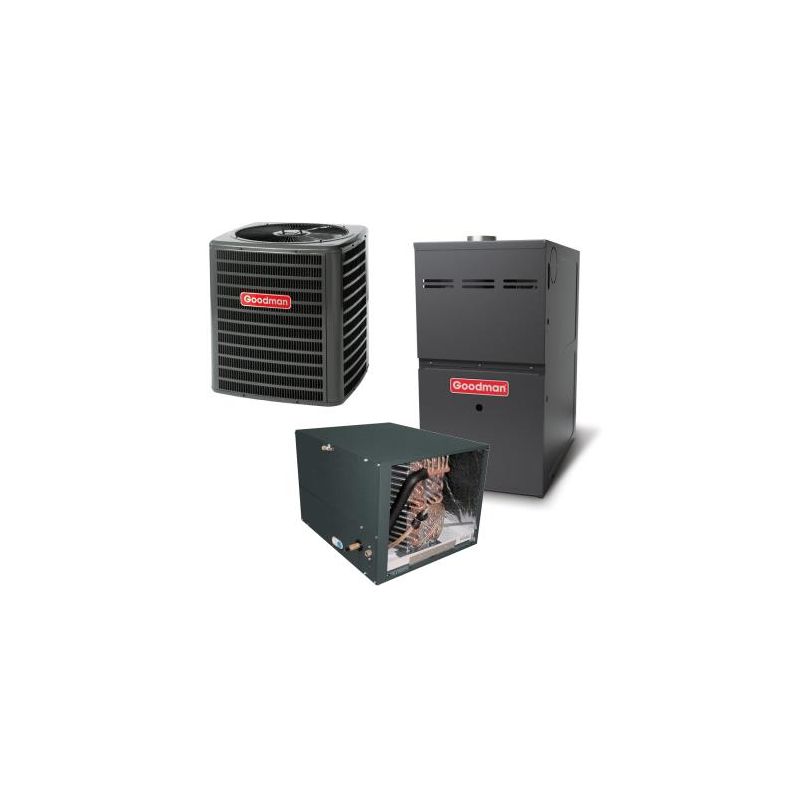

3 Ton 14 SEER 80% AFUE 100,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal
Model: GSZ140361 / CHPF3743C6 / GMVC81005CN

Price as configured: $3,423.00

3 Ton 14 SEER 80% AFUE 100,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

By: Goodman Model: GSZ140361 / CHPF3743C6 / GMVC81005CN ID: 30324

More Views

Suggested Retail: $4,107.00

Price as configured: $3,423.00

Bread Checkout

FREE SHIPPING
Goodman Manufacturing
Ships in 4-6 Weeks
AHRI Certified
201896094

New
Requires: Metal Flue Vent Piping

* Required Fields

Price as configured: $3,423.00

Accessories

Description

Details

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMVC81005CN is a perfect choice for heating.

Not intended for use in mobile homes.

100,000 BTU 80% AFUE Variable Speed Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

The GMVC81005CN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GMVC81005CN gas furnace.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (in average climate conditions)
  • 100,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU

At an input of 100,000 BTU’s, the GMVC81005CN Goodman gas furnace is suitable for up to a medium-sized house in an average climate. The output of this furnace is 80,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GMVC81005CN Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GMVC81005CN requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Two Stage Variable Speed Furnace

The GMVC81005CN is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Warranty

The GMVC81005CN comes standard with Goodman’s 10 year parts warranty and its phenomenal lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

The tubular heat exchanger on the GMVC81005CN is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GMVC81005CN furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the upflow or horizontal positions, allowing for a broader application potential.

3 Ton 14 SEER Goodman Heat Pump

OVERVIEW

The Goodman GSZ140361 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140361 is manufactured with high-quality materials to provide a superior comfort in your home.

QUICK FACTS

  • Ideal size to cover a medium-sized house in ideal climates
  • 3 ton, 14 SEER heat pump condenser
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
3 ton

The Goodman GSZ140361 heat pump has a capacity of 3 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14 SEER

At 14 SEER, the GSZ140361 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Warranty

The GSZ140361 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GSZ140361 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GSZ140361 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140361 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

3 to 3.5 Ton 21" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF3743C6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF3743C6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 3 to 3.5 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
3 to 3.5 Tons

At an output of 3 to 3.5 tons, the Goodman CHPF3743C6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF3743C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF3743C6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Specifications

100,000 BTU 80% AFUE Variable Speed Goodman Gas Furnace - Upflow/Horizontal

skuGMVC81005CN
manufacturerGoodman
afue80%
heating_btu100,000
blower_motorVariable Speed
cfm2000
configurationUpflow/Horizontal
flue_requirementMetal
electrical120 V. 1 Phase 60 Hz
burner_stagesTwo
fuel_typeGas
height34.5"
width21"
depth28.75"
weight156.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


3 Ton 14 SEER Goodman Heat Pump

skuGSZ140361
manufacturerGoodman
cooling_btu36,000
heating_btu36,000
decibel74
energy_starYes
refrigerantR410A
seer14
compressor_stageSingle Stage
compressor_typeScroll
liquid_valve_size3/8"
suction_valve_size3/4"
electrical208 / 230 V. 1 Phase 60 Hz
max_breaker_size30 amps
min_breaker_size22.4 amps
nominal_capacity3 Ton
valve_typeSweat
height36"
width29"
depth29"
weight215.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


3 to 3.5 Ton 21" Goodman Horizontal Evaporator Cased Coil

skuCHPF3743C6
manufacturerGoodman
configurationHorizontal
refrigerantR410A or R22
liquid_line3/8"
suction_line7/8"
nominal_capacity3 Ton to 3.5 Ton
styleA-Coil
height21"
width21.125"
depth26"
weight63.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING
