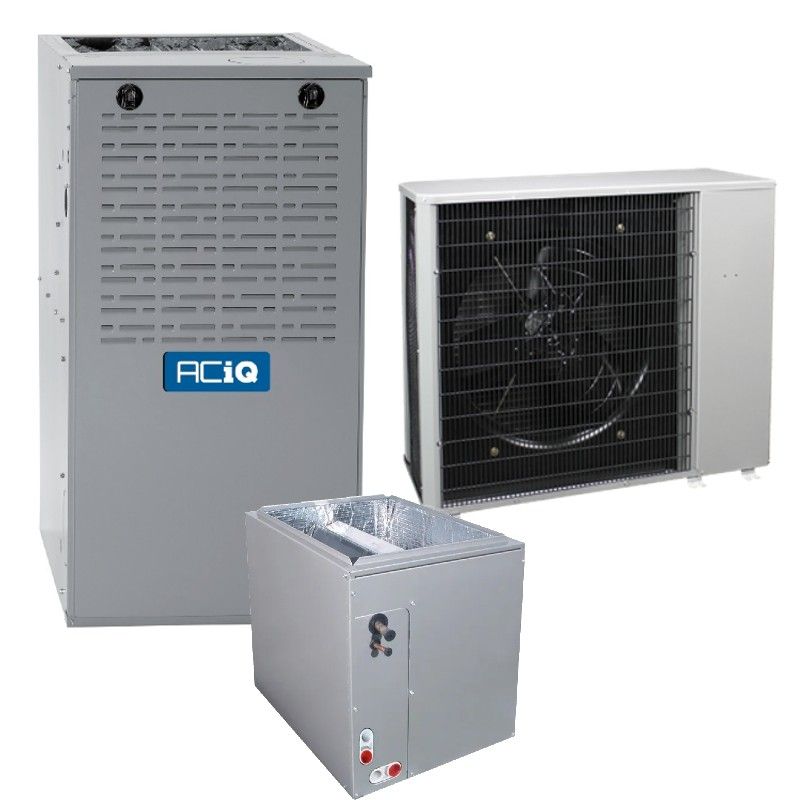

ACiQ 3 Ton 14 SEER 80% 100,000 BTU Furnace & AC System - R410A Multi-Positional

SAVE $0.00

Required Fields *

Customer reviews

Rating:

4.9 out of 5

4.9 out of 5 View All 120 Reviews Add Your Review

Out of stock

ACiQ

Out of stock

Model

NH4A436AKA / EAM4X48L24A / N80ESN1102420A

76846

5 Questions Answered

Description

An ACiQ combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the N80ESN1102420A is a perfect choice for heating.

All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.

Product Specs

More Information
100,000 BTU 80% AFUE Single Stage ACiQ Gas Furnace \| 24.5" Width \| Multi-Positional
Feature	Spec
SKU	N80ESN1102420A
Weight (in lbs)	161
AHRI Certificate Number	213146145
Exhaust Flue Requirement	Metal
Brand/Manufacturer	ACiQ
Equivalent	Carrier Equivalent: 58SB0A110E24--20 Tempstar Equivalent: TN80ESN1102420A Bryant Equivalent: 810SA60110E24
Furnace Efficiency / AFUE	80%
Heating BTU	110,000
Blower Motor	Multi-Speed ECM
Drive Type	Direct
Maximum CFM	2005
Motor RPM	1050
Horsepower	.75 HP
Configuration	Upflow/Downflow/Horizontal
Electrical	115v 1 Phase 60 Hz
Phase	Single Phase
Max Breaker Size	15 Amps
Connection	1/2" NPT
Maximum Inlet Pressure	13.6"wc
Burner Stages	Single
Ignition Type	Direct Ignition with Silicon Nitride Hot Surface Ignitor
Fuel Type	Propane, Natural Gas
Certification	AHRI Certified
Height	33 1/3"
Width	24 1/2"
Depth	29"
Warranty	20 Year Heat Exchanger and 10 Year Parts with Online Registration
Resources	ACiQ Gas Furnace Brochure ACiQ Installation Manual AirQuest Natural Gas to Propane Conversion Instructions ACiQ Owners Manual ACiQ Specifications ACiQ Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 3 Ton 14 SEER Central Air Conditioner Condenser - R410A Single Stage
Feature	Spec
SKU	NH4A436AKA
Weight (in lbs)	184
Brand/Manufacturer	ACiQ
Equivalent	Tempstar Equivalent: TNH4A436AKA
Cooling BTU	36,000
Maximum CFM	2615
Decibel Level (dBA)	71
Motor RPM	825
Horsepower	.25 HP
Energy Star	Yes
Refrigerant	R410A
SEER1 (Efficiency)	14
EER	12.2-13.5
Condenser Stages	Single Stage
Compressor Type	Scroll
Liquid Valve Size	3/8"
Suction Valve Size	7/8"
Electrical	208/230v 1 Phase 60 Hz
Phase	Single Phase
Max Breaker Size	30 Amps
Min. Breaker Size	18.8 Amps
Amperage Requirement	18.8 Amps
Tonnage	3 Ton
Connection	Sweat
Certification	UL Listed
Height	37 1/8"
Width	44 1/2"
Depth	17 1/16"
Warranty	10 Years Parts Warranty with Online Registration
Resources	ACiQ Installation Manual ACiQ Specifications You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 4 Ton 24.5" Width Multi-Positional Evaporator Cased Coil-R410A
Feature	Spec
SKU	EAM4X48L24A
Weight (in lbs)	88.5
Brand/Manufacturer	ACiQ
UPC	704674303060
Equivalent	Carrier Equivalent: CAPMP4824ALA Tempstar Equivalent: EAM4X48L24A Bryant Equivalent: CAPMP4824ALA
Configuration	Multi-Positional
Refrigerant	R410A
Liquid Line	3/8"
Suction Line	7/8"
Tonnage	4 Ton
Style	A-Coil
Certification	UL Listed
Height	29 3/4"
Width	24 1/2"
Depth	20 5/8"
Warranty	10 Years Parts Warranty with Online Registration
Resources	ACiQ Installation Manual ACiQ Specifications ACiQ Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 120

Customers Say

Many buyers report noticeably quieter operation and stronger airflow compared to 20‑ to 32‑year‑old furnaces they replaced, with one 80% 110,000 BTU model delivering a fan described as three times more powerful and another cutting energy costs by 30%. Installation is often described as straightforward, including propane conversions and downflow setups, though some mention freight damage, a missing inducer circle clip requiring replacement, thermostat compatibility issues, and occasional shipping or sizing mix‑ups.

AI Generated from the text of customer reviews

Top reviews

Very satisfied with this unit

Quality
100%

Service
100%

Price
100%

Replaced a 25 year old. Much quieter and better fan performance.
Review by ET
Posted on 3/17/26
efficient heating, energy costs reduced by 30%, powerful fan, no problems.

Quality
100%

Service
100%

Price
100%

So much better than the 20 year old unit it replaced. Great support from HVAC, excellent price.
Review by Dimitri
Posted on 3/15/26
Excellent Unit - powerful fan!

Quality
100%

Service
100%

Price
100%

I had delivered an ACiQ 80% 110,000 BTU furnace. It is working great. I replaced a high efficiency 90% Bryant that had a known secondary heat exchanger issue. I watched The DIY HVAC Guy on youtube that recommended that all high efficiency units are crap and to go back to 80%. He couldn't be more right. The unit is running fine with no problems. The install was easy. I had to redo the ducting as per his instructions. The price i paid $1,300 compared to what Bryant installers wanted $13,000 was a no brainer. If you have mechanical hands and like stop watch How To youtube videos, get this one! You wont be disappointed. The heat is excellent a d the fan is 3 times more powerful than I used to have. Excellent unit thay will last 30+ years.
Review by Chris
Posted on 12/15/25
excellent

Quality
100%

Service
100%

Price
100%

works great so far. easy to install. runs 1/4 of the time my 30 year old furnace ran, blows alot of air!
Review by brent
Posted on 11/17/25
Very pleased

Quality
80%

Service
100%

Price
80%

At present we’re not using the heat but unit is performing well with external AC unit.
Returned thermostat due not being able to be incorporated into existing system. Return was painless and prompt reimbursement.
Would again purchase products from these
folks if need be.
Review by Eddie
Posted on 9/9/25
Solid product

Quality
100%

Service
80%

Price
100%

We have installed about 6 of these, replacing williams wall furnaces. They work great. after 2 years, be sure to clean ignition sensor. That's the only thing we have done, other than clean filters.
Review by Mark
Posted on 6/11/25
DIY

Quality
100%

Service
100%

Price
100%

This furnace was almost the same size as my 32 year old Carrier I replaced (6" shorter). CS was able to change order and I received the right size. Fast shipping and shipping damage. The new ACiQ furnace is quieter than the old one. Temp-Rise test was in range with factory settings. Saved a bundle and very happy with this product.
Review by tails
Posted on 4/11/25
Fast delivery, great service

Quality
80%

Service
100%

Price
80%

Very pleasant buying experience and faster delivery than I ever expected. I was thrown one small curve when the unit arrived and it was a different brand than originally ordered. Did some checking and found they were in the same corporate family and the only difference is the sticker on the front so it’s no problem.
Review by BuilderBob
Posted on 2/12/25

See more reviews

Accessories

FAQ's

Customer Questions

Who makes ACiQ?

ACiQ air conditioning systems, standard heat pumps, and gas furnaces are manufactured by the largest HVAC manufacturer in America, who also happens to be the seller of the nation’s #1 brand. However, because our prices are SO LOW, they will not allow us to mention their name! They must protect their current market share where typical home systems retail between $15,000 to $25,000 for the identical equipment that we let you buy direct for under $3,000. We offer homeowners and contractors the highest quality and best warranty HVAC systems in the industry at the absolute lowest price. With our industry-leading, high-tech ACiQ equipment, your home and your savings just got a whole lot smarter!

What happens if this breaks down?

HVACDirect.com gives you lifetime tech support. Many common problems can be solved with a phone call to us. HVACDirect.com is an authorized dealer of ACiQ, therefore equipment we sell carries the full manufacturer's warranty. The warranty applies to all parts. You have to register the products online in order to extend the warranty to the full 10 years, otherwise the term is 5 years. If a part fails under warranty, you will not pay anything for the replacement part. Should a part fail under warranty, the first step is to have a professional confirm what part needs to be replaced. Then, contact us at customerservice@hvacdirect.com or by calling and asking for customer service.

What happens if it arrives damaged?

If you are present during drop-off and you see obvious signs of damage or rough handling in transit - please ask the driver to wait while you inspect the equipment. If it is damaged badly enough that you believe it can not function, you have the right to refuse the damaged portion of the shipment. If you discover the damage after the driver has left, take photos of the damage and send them to customerservice@hvacdirect.com. Please refer to your order number in the email. This starts the process and one of our representatives will be in touch with you promptly.

How can I find an installer?

It’s easier than you think – the key is to find an independent contractor or small company as opposed to a larger HVAC service. A one or two person outfit will do the work more quickly and cheaply than a bigger company, too. Yelp.com, Thumbtack.com, and Porch.com are websites are designed to help you connect with a professional in your area. You could also place a call to the last professional who did work on your home and see if they have any recommendations.

Is it cheaper to buy a furnace and AC together? (Should I replace my furnace and air conditioner at the same time?)

Remember to factor labor into the budget. Many times the labor can cost as much as the equipment. Therefore, spending a bit more now to replace everything can be less expensive than re-using an older furnace that still works, or putting in a furnace with a plan to ‘add air conditioning later.” By replacing everything at the same time, you will get matching equipment that is all warrantied together. Then you can typically not have to worry about the system for another 15 to 25 years with proper maintenance.

Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
