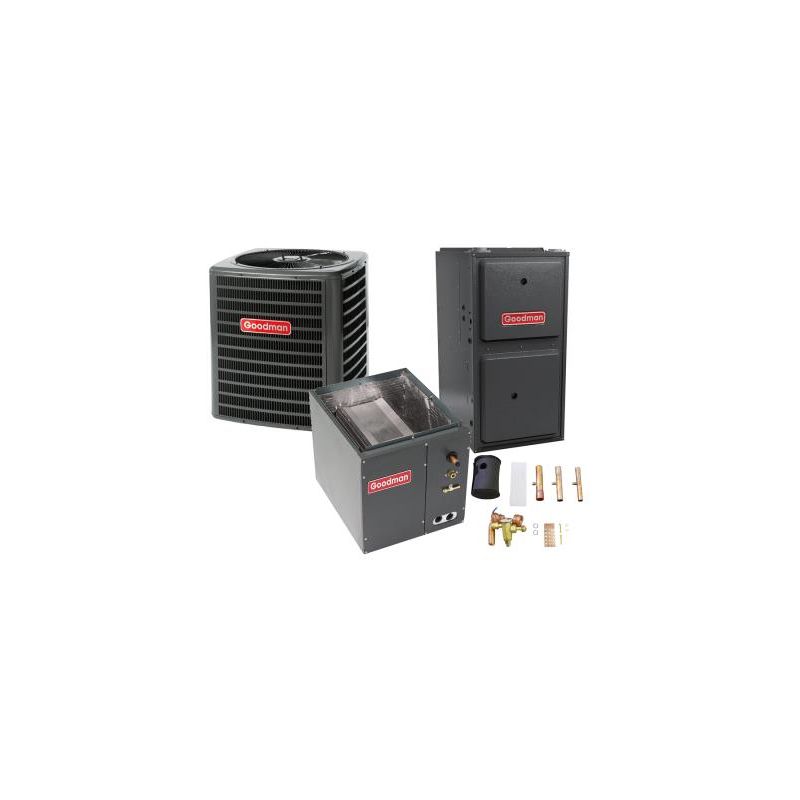

3 Ton 14 SEER 96% AFUE 60,000 BTU Goodman Gas Furnace and Heat Pump System - Upflow
Model: GSZ140361 / CAPF3137B6 / GMEC960603BN / TX3N4

Price as configured: $3,442.95

3 Ton 14 SEER 96% AFUE 60,000 BTU Goodman Gas Furnace and Heat Pump System - Upflow

By: Goodman Model: GSZ140361 / CAPF3137B6 / GMEC960603BN / TX3N4 ID: 30277

More Views

Suggested Retail: $4,113.95

Price as configured: $3,442.95

Bread Checkout

FREE SHIPPING
Goodman Manufacturing
Usually Ships in 3-5 Business Days
AHRI Certified
202351139

New
Requires: Plastic / PVC Flue Vent Piping

* Required Fields

Price as configured: $3,442.95

Accessories

Description

Details

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMEC960603BN is a perfect choice for heating.

Not intended for use in mobile homes.

60,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

As a high-efficiency system, the GMEC960603BN Goodman gas furnace features many money saving features. The two-stage, multi-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GMEC960603BN is a good way to go if you want to lower your gas bill.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 60,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
60,000 BTU

Heating up to a medium-sized house in normal conditions, the GMEC960603BN Goodman gas furnace has an input of 60,000 BTU’s and an output of 57,600 BTU’s. The output in this case is determined by taking the input times the efficiency rating.

96% AFUE

The GMEC960603BN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.

Two Stage Multi-Speed Furnace

With a two stage burner, the GMEC960603BN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a multi speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home’s comfort needs and provide a slightly higher efficiency.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durability and Reliability

The exterior casing on the GMEC960603BN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn’t stop at efficiency. The GMEC960603BN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GMEC960603BN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.

3 Ton 14 SEER Goodman Heat Pump

OVERVIEW

The Goodman GSZ140361 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140361 is manufactured with high-quality materials to provide a superior comfort in your home.

QUICK FACTS

  • Ideal size to cover a medium-sized house in ideal climates
  • 3 ton, 14 SEER heat pump condenser
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
3 ton

The Goodman GSZ140361 heat pump has a capacity of 3 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14 SEER

At 14 SEER, the GSZ140361 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Warranty

The GSZ140361 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GSZ140361 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GSZ140361 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140361 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

2.5 to 3 Ton 17.5" Width Goodman Vertical Evaporator Cased Coil

OVERVIEW

With the CAPF3137B6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPF3137B6 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 2.5 to 3 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application
2.5 to 3 Tons

The Goodman CAPF3137B6 evaporator coil is rated for a 2.5 to 3 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.
Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPF3137B6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPF3137B6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access.
Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPF3137B6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPF3137B6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.

Goodman 2.5 to 3 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX3N4, you can be assured that your two-and-a-half or three ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX3N4 is a good start.

Product Compatible With
  • Goodman GSX130301 Air Conditioners
  • Goodman GSX130361 Air Conditioners
  • Goodman DSXC160361 Air Conditioners
  • Goodman GSZ130301 Heat Pumps
  • Goodma GSZ130361 Heat Pumps
  • Goodman SSZ140301 Heat Pumps
  • Goodman SSZ140361 Heat Pumps
  • Goodman SSZ140381 Heat Pumps
  • Goodman SSZ160301 Heat Pumps
  • Goodman SSZ160361 Heat Pumps
  • Goodman DSZC160361 Heat Pumps
  • Goodman DSZC180361 Heat Pumps
  • Goodman CAPF3030*6 Evaporator Coils
  • Goodman CAUF3030*6 Evaporator Coils
  • Goodman CAPF3642*6 Evaporator Coils
  • Goodman CAUF3642*6 Evaporator Coils
  • Goodman CHPF3636B6 Evaporator Coils
  • Goodman CSCF3036N6 Evaporator Coils
  • Goodman CSCF3642N6 Evaporator Coils

Specifications

60,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal

skuGMEC960603BN
manufacturerGoodman
afue96%
heating_btu60,000
blower_motorMulti-Speed - ECM
cfm1200
configurationUpflow/Horizontal
exhaust_pipePVC
flue_locationRight
flue_requirementPlastic / PVC
energy_starYes
electrical115 V. 1 Phase 60 Hz
burner_stagesTwo
fuel_typeGas
height34.5"
width17.5"
depth28.75"
weight115.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


3 Ton 14 SEER Goodman Heat Pump

skuGSZ140361
manufacturerGoodman
cooling_btu36,000
heating_btu36,000
decibel74
energy_starYes
refrigerantR410A
seer14
compressor_stageSingle Stage
compressor_typeScroll
liquid_valve_size3/8"
suction_valve_size3/4"
electrical208 / 230 V. 1 Phase 60 Hz
max_breaker_size30 amps
min_breaker_size22.4 amps
nominal_capacity3 Ton
valve_typeSweat
height36"
width29"
depth29"
weight215.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


2.5 to 3 Ton 17.5" Width Goodman Vertical Evaporator Cased Coil

skuCAPF3137B6
manufacturerGoodman
configurationUpflow / Downflow
refrigerantR410A or R22
liquid_line3/8"
suction_line3/4"
nominal_capacity2.5 Ton to 3 Ton
styleA-Coil
height30"
width17.5"
depth21"
weight53.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


Goodman 2.5 to 3 Ton TXV Kit - R-410A

skuTX3N4
manufacturerGoodman
refrigerantR410A
weight2.5000
safety_informationPROPOSITION 65 WARNING



Reviews

Reviews

7 Customer review(s)
Very satisfied!
very happy with this furnace. The house heats quickly and is quiet.
Quality
Price
Service
Review by Diane / (Posted on 16/11/18)
Excellent
This is a super great furnace. It is much quieter than my old one and i love the two stage!
Quality
Price
Service
Review by Keith / (Posted on 09/11/18)
I will definitely tell my friends!
This was packaged very well when it arrived. The quality of the furnace seems to be great
Quality
Price
Service
Review by Rachel / (Posted on 02/11/18)
Great deal
Best furnaces around. Great price and easy to work on.
Quality
Price
Service
Review by John / (Posted on 17/10/17)
Amazed
I was truly amazed how fast the shipping was A+
Quality
Price
Service
Review by Kenneth / (Posted on 17/06/19)
No Complaints!
This heat pump is great! Installer got it going for me and has doing good.
Price
Service
Quality
Review by Jacob / (Posted on 20/03/18)
I'm glad I added it.
This was the first time adding a TXV kit. I was reluctant because you could just leave the unit with the standard set orifice. But, now 7 months later, it's been working fine. It makes sense to put one, just like a thermostat for a car. It makes things run consistent on the output.
Quality
Price
Service
Review by Thomas / (Posted on 25/03/19)
