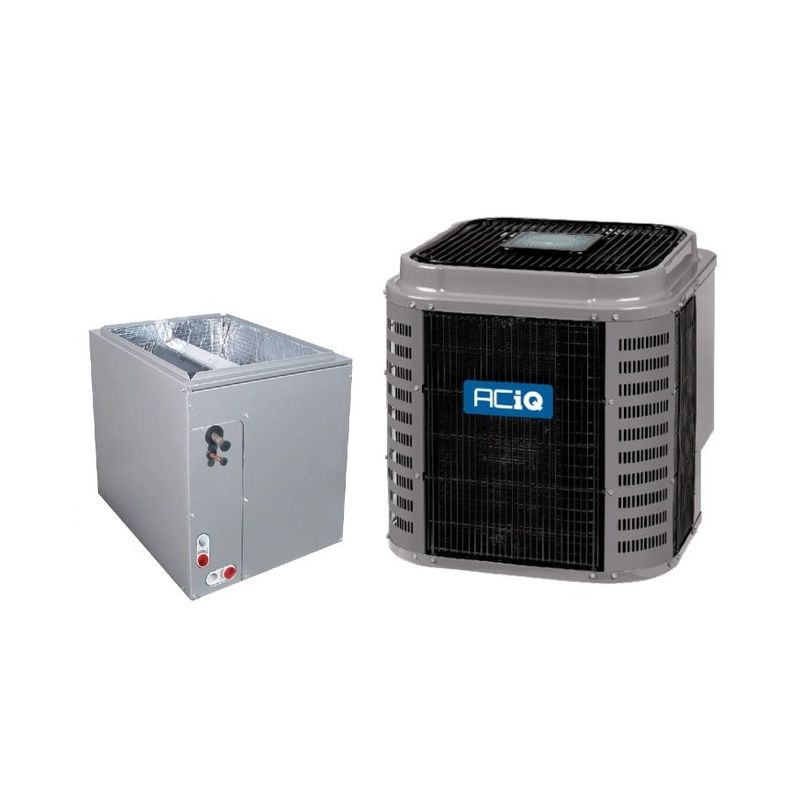

4 Ton 14.5 SEER ACiQ Air Conditioner with Multi-Positional 21" Cased Coil-R410A

SAVE $0.00
4 Ton 14.5 SEER ACiQ Air Conditioner with Multi-Positional 21" Cased Coil-R410A

Required Fields *

Customer reviews
Rating:
4.8 out of 5
Out of stock
By

ACiQ

Out of stock

Model

HCA748GKA / EAM4X48L21A

ID

144300

An ACiQ combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, it is a perfect choice for heating.

All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.

More Information
ACiQ 4 Ton 17 SEER Central Air Conditioner Condenser - R410A Two Stage
FeatureSpec
SKUHCA748GKA
Weight (in lbs)280
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: 24ACB748A003

Tempstar Equivalent: TCA748GKA

Bryant Equivalent: 127ANA048000

CommunicatingYes
Cooling BTU48,000
Maximum CFM4700
Decibel Level (dBA)72
Motor RPM825
Horsepower.25 HP
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)17
EER12.5
Condenser StagesTwo Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208/230v 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size40 Amps
Min. Breaker Size27.8 Amps
Amperage Requirement27.8 Amps
Tonnage4 Ton
ConnectionSweat
CertificationUL Listed
Height40 1/4"
Width35"
Depth35"
Warranty10 Year No Hassle Replacement and 10 Year Parts with Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 4 Ton 21" Width Multi-Positional Evaporator Cased Coil-R410A
FeatureSpec
SKUEAM4X48L21A
Weight (in lbs)84
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: CAPMP4821ALA

Tempstar Equivalent: EAM4X48L21A

Bryant Equivalent: CAPMP4821ALA

ConfigurationMulti-Positional
RefrigerantR410A
Liquid Line3/8"
Suction Line7/8"
Tonnage4 Ton
StyleA-Coil
CertificationUL Listed
Height29 3/4"
Width21"
Depth20 5/8"
Warranty10 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Perfect size
    Quality
    100%
    Service
    100%
    Price
    100%
    Install went great. Would recommend to anyone. Thanks!

    Review by

    Posted on

  2. Nice modular "W-shaped" unit.
    Quality
    100%
    Service
    100%
    Price
    100%
    I've been running this evaporator coil in air-conditioning mode for a month now. It performs beautifully both as an air conditioning condenser and a heat pump heat exchanger. It fit perfectly atop my AirQuest furnace with no modifications necessary. Rather than an "A" shaped coil, this is a "W" shaped coil which gives more heat transfer capacity for 4 ton and larger air conditioning units. Along with my AirQuest air conditioner & heat-pump, and the ION System Control thermostat, this combination is good at keeping the house comfortable. Although AirQuest is an unknown brand name to me, I believe it to be a Carrier brand name product, renamed. I installed this evaporator coil and an air conditioner & furnace myself with 4 hours of help at the end from an HVAC professional. There were experts, (Chris Whitmore) at HVACdirect.com available to help me through the uncertainties and this was very valuable. I've only tested the heat-pump side of this unit so far but look forward to using the heat pump this upcoming Minnesota winter. Doing the labor myself & buying from HVACdirect.com saved me ~40% on the system & installation cost.

    Review by

    Posted on

  3. Great
    Service
    100%
    Quality
    100%
    Price
    80%
    Great customer service, great agent, fast delivery, a kind of fair pricbut Thank You for your service over all.

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
