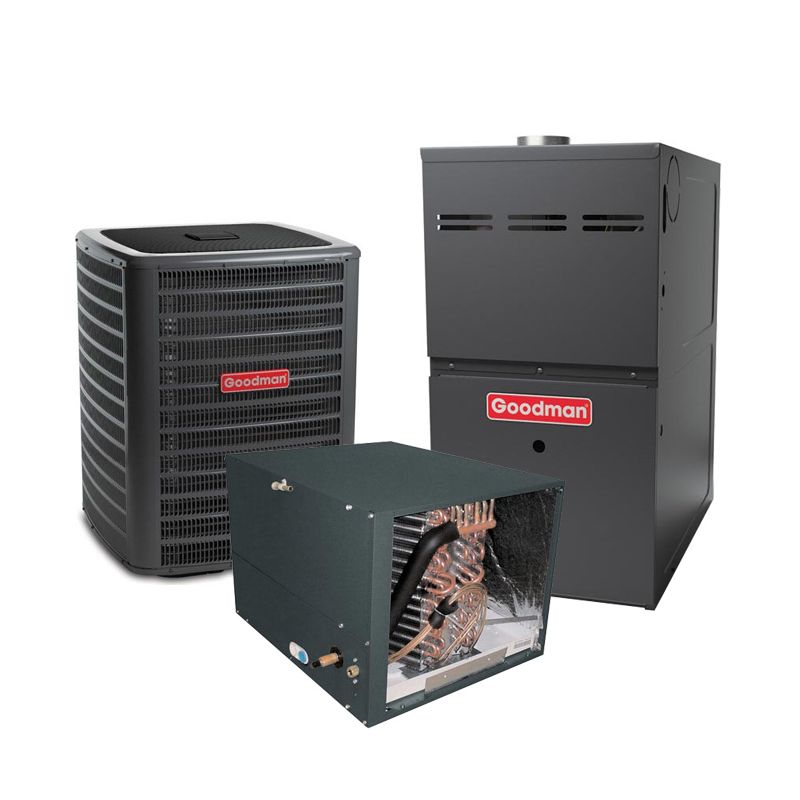

3 Ton 16 SEER 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal

By

Goodman

Model

GSX160361 / CHPF4860D6 / GME80805CN / TXV-42 / SST-CD-R6

ID

21659

Rating:
98% of 100
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:200817484

Your Low Price $912.95

Free Shipping

Requires: Metal Flue Vent Piping

Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

This Goodman system provides 3 Ton of cooling, 80,000 BTU of heating, and acheives 16 SEER. These features make it a perfect choice for your next system.



The Goodman GME80805CN furnace features a two stage gas valve and multi-speed blower motor that can be installed in either upflow or horizontal configurations. This furnace also features a X13 blower motor that saves electricity during the heating and cooling months. This direct current motor uses less electricity than the standard multi-speed furnace blower. This furnace also includes a patented aluminized-steel tubular heat exchanger and durable Silicon Nitride Hot Surface Ignition system. These furnaces are run-tested for heating or combination heating and cooling applications. With a heavy-gauge, reinforced, insulated steel cabinet and durable baked enamel finish, this unit can be installed in a variety of locations. Not intended for use in mobile homes.

The Goodman GME80805CN furnace has a 80% AFUE rating which means that for every every $1.00 you spend, 80 cents goes towards heating your home.

Furnace Features

  • Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit.
  • X13 blower motor with brushless DC design and a permanent-magnet rotor which allows much more efficient operation furnace in both heating and cooling months
  • Patented TuffTube™ dual-diameter tubular furnace heat exchanger with lifetime limited warranty plus 10-year furnace replacement limited warranty (with online registration)
  • Heater's Two-stage gas valve with revolutionary new Dual$aver control technology allows installer to turn on two-stage operation with the flip of a dipswitch
  • Goodman Silicon Nitride igniter with patented adaptive learning routine for maximum igniter life
  • Integrated furnace electronic furnace control board with self-diagnostics, low-voltage terminal block, and separate terminals for electronic air cleaner and 24-volt humidifiers
  • Goodman has furnace control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan mode allows the homeowner to activate the lowest available heating speed to circulate air quietly and efficiently throughout the home during the off cycle
  • Furnaces' self-adjusting feature automatically adjusts furnace to high or low stage based on outside temperature without outdoor temperature sensor
  • Quiet single-speed, induced-draft blower
  • Complies with California NOx emissions standards


Goodman AC - The Goodman GSX160361 16 SEER Central Air Conditioner uses the environmentally friendly refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and air conditioning industry. R-410A is chlorine-free to help prevent damage to the ozone layer. The GSX160361 features a high-efficiency Copeland scroll compressor and is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly air conditioning performance.

In order to achieve the 16 SEER efficiency this central air conditioner must be installed with the manufacturer recommended evaporator coil, furnace, variable speed air handler, or variable speed modular blower and thermostatic expansion valve (TXV). A 16 SEER system will reduce your electric bill approximately 7% - 8% more than a 15 SEER system.

Standard Features of this Central Air Conditioner

  • R-410A environmentally friendly refrigerant
  • High-efficiency Copeland Ultratech scroll compressor
  • Factory-installed filter dryer
  • Fully charged for 15 feet of tubing length
  • Copper tube/enhanced aluminum fin coil
  • Sweat connection service valves with easy access to gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • AHRI Certified
  • ETL Listed

Cabinet Features

  • Unique Goodman brand louvered sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When central air conditioner is properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds

Product Specifications

More Information
3 Ton 16 SEER 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal
SKUGSX160361 / CHPF4860D6 / GME80805CN / TXV-42 / SST-CD-R6
AHRI Certificate Number200817484
Exhaust Flue RequirementMetal
Brand/ManufacturerGoodman
Furnace Efficiency / AFUE 80%
Cooling BTU34,000
Heating BTU80,000
Maximum CFM1000
SEER1 (Efficiency)16
EER13
Condenser StagesSingle Stage
Liquid Valve Size3/8"
Suction Valve Size7/8"
Tonnage3 Ton
System Tonnage3 Ton
Warranty10 Years with Online Registration

Reviews 3

Write Your Own Review
You're reviewing:3 Ton 16 SEER 80% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal
Your Rating

Questions and Answers

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
