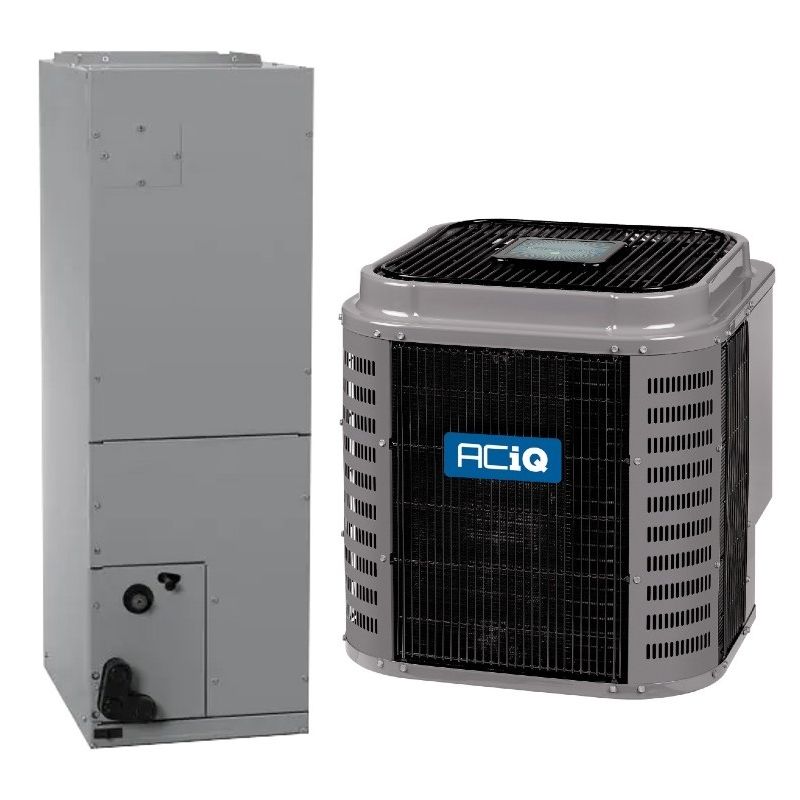

3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump System

By

ACiQ

Model

H4H7T36AKAAA / FVM4X6000BL

ID

140424

Availability: Ships in 2-3 Weeks

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:210704775

Suggested Retail $8,220.00
Your Low Price $6,575.00

Add to Cart for Best Price
Free Shipping

Required Fields *

Customize 3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump System
3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump
3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump   + $4,713.00
5 Ton Multi-Positional ACiQ Air Handler
5 Ton Multi-Positional ACiQ Air Handler   + $1,862.00
7 Kilowatt 23,800 BTU ACiQ Heater Coil
30 Feet of 3/8
  • Buy 5 for $393.00 each and save 5%
  • Buy 10 for $372.00 each and save 10%
3 Ton ACIQ Hybrid Upgrade
3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump System

$6,575.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, an ACiQ heat pump air conditioning system is the perfect choice for all of your heating and cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.

10 Kilowatt 34,000 BTU ACiQ Heater Coil

This 208/230 volt heater coil can be added to a ACiQ air handlers to provide winter-time heating capabilities. Produces 34,000 BTUs of heat. Circuit breakers are included with this heater coil.

3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump

OVERVIEW

With its communicating nature and its two stage compressor, the ACiQ H4H7T36AKAAA lives up to its name, providing one of the most superior comforts to your home on the market today.

QUICK FACTS

  • 3 ton, 17.0 SEER2 heat pump condenser
  • Can heat and cool up to a medium-sized house in average conditions
  • Two stage compressor with communicating capabilities with other matching system components
  • Filter drier included to be field-installed and suction line accumulator factory-installed
  • Built-in temperature sensor for automated heat source transition
  • Multiple safety switches to protect both the unit and your home
  • Energy Star certified

3 Tons

The ACiQ H4H7T36AKAAA heat pump condenser has an output of 3 tons, generally enough to heat and cool up to a medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit.Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

17.0 SEER2

The ACiQ H4H7T36AKAAA air conditioner condenser is rated at 17.0 SEER2, making it approximately 12% more efficient than the minimum efficiency 14 SEER units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces, making them an excellent and money-saving solution for almost any all-electric solution, especially when you have a lot of heating during outdoor temperatures ranging from when you start using your heating system all the way down to 35°F.

Warranty

ACiQ offers a 10 year parts warranty on its condensers, and on this unit there is also a 10 year no hassle replacement limited warranty. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Intelligently Enhanced Comfort

Engineered to be 2 stage and with the ability to communicate with communicating air handler counterparts, the ACiQ H4H7T36AKAAA can support a more precise temperature output, providing primarily enhanced comfort to your home year-round. Moreover, this unit is a communicating system when paired with a compatible air handler and other accessories (both available at an additional cost), allowing it to relay information to and from the thermostat constantly for optimal performance. On top of these benefits, these system features provide a small efficiency boost, all amounting to one of the best types of systems on the market today.


Quiet ComfortQuiet Comfort

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.


High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

High Efficient Heat PumpHigh Efficient Heat Pump

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

Nestor

Installer in Chicago, Illinois

What Contractors are Saying

These ACiQ units are easy to work on. The warranty is rock solid and is as good as any warranty in the industry. I'm sold!

Michael

Installer in Atlanta, Georgia

What Contractors are Saying

These ACiQ units are attractive and durable. I never hesitate to recommend ACiQ units to my customers when it is time for them to replace their air conditioners or furnaces. They love getting a high quality unit for such a great price.

Luke

Installer in Dayton, Ohio

What Contractors are Saying

Was initially concerned about the ACiQ brand as I had heard little about it. My attitude changed completely once I had a look “under the hood”. These ACiQ units are as good as any other brand that I’ve seen. Plus, they have all the features and quality details that the more expensive brands have, but at a much more attractive price.

Chris

Installer in Atlanta, Georgia

What Contractors are Saying

I’m a long time HVAC technician. I have an ACiQ furnace in my basement and an ACiQ air conditioner in my yard. I couldn’t be happier with them. ACiQ is always the first brand I offer my customers when it’s time for unit replacement. If it works for me, it will work for them, too. And it does!

3 Ton ACIQ Hybrid Upgrade
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

5 Kilowatt 17,000 BTU ACiQ Heater Coil

This 208/230 volt heater coil can be added to a ACiQ air handlers to provide winter-time heating capabilities. Produces 17,000 BTUs of heat.

5 Ton Multi-Positional ACiQ Air Handler

OVERVIEW

The FVM4X6000BL air handler is variable speed and extremely efficient in design. The ACiQ air handler provides comfort features and easy-to-install design.

QUICK FACTS

  • 5 ton air handler
  • Variable speed
  • Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
  • Factory-installed TXV kit
  • Compatible with both AC-only and heat pump condensers

5 Tons

The ACiQ FVM4X6000BL air handler is rated for an output of 5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that in order for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.

Warranty

ACiQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.

Installation and Durability

To make a more versatile unit, ACiQ designed the FVM4X6000BL to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to, decreasing installation costs. For durability, the FVM4X6000BL air handler is designed with an extremely strong, one-piece outer casing to protect the unit.

Intelligent Comfort

The FVM4X6000BL air handler has an ECM variable speed blower motor, not only increasing its efficiency but also providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FVM4X6000BL meets ACiQ's superior standards.

50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Linesets are available in different lengths and diameters to fit most applications.

7 Kilowatt 23,800 BTU ACiQ Heater Coil

This 208/230 volt heater coil can be added to a ACiQ air handlers to provide winter-time heating capabilities. Produces 23,800 BTUs of heat.

No Thank You

Product Specifications

More Information
10 Kilowatt 34,000 BTU ACiQ Heater Coil
SKUEHK10AKB
Weight (in lbs)9.000000
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: KFCEH2601C10

Tempstar Equivalent: EHK10AKB

Bryant Equivalent: KFCEH2601C10

Heating BTU34,000
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Min. Breaker Size60 Amps
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
3 Ton 17.0 SEER2 Two Stage ACiQ Heat Pump
SKUH4H7T36AKAAA
Weight (in lbs)290.000000
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: 25HNB636A003

Tempstar Equivalent: TCH636GKA

Bryant Equivalent: 286BNA036000

Cooling BTU36000
Heating BTU36,000
Decibel Level (dBA)72 Decibels
Energy StarYes
RefrigerantR410A
SEER2 (Efficiency)17
Condenser StagesTwo Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size40 Amps
Min. Breaker Size25.2 Amps
Tonnage3 Ton
Height40 3/8"
Width35"
Depth35"
Warranty10 Years No Hassle Replacement Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
3 Ton ACIQ Hybrid Upgrade
SKUACIQ-36-EHPC-UPG
Weight (in lbs)120.000000
Brand/ManufacturerACiQ
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKULS38343830
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
Length30 feet
5 Kilowatt 17,000 BTU ACiQ Heater Coil
SKUEHK05AKB
Weight (in lbs)9.000000
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: KFCEH2401C05

Tempstar Equivalent: EHK05AKB

Bryant Equivalent: KFCEH2401C05

Heating BTU17,000
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / Phase 1
PhaseSingle Phase
Min. Breaker Size30 Amps
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Ton Multi-Positional ACiQ Air Handler
SKUFVM4X6000BL
Weight (in lbs)192.000000
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: FV4CNB006L00

Tempstar Equivalent: FVM4X6000BL

Bryant Equivalent: FV4CNB006L00

Blower MotorVariable Speed
Maximum CFM2000
Motor RPM300-1300
Horsepower.75 HP
Horsepower.75 HP
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts, 25 Kilowatts, 30 Kilowatts
RefrigerantR410A
Filter Size23 5/16" x 21 1/2"
Liquid Line3/8"
Suction Line7/8"
Electrical208/230v 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size15 Amps
Tonnage5 Ton
ConnectionSweat
CertificationUL Listed
Height59 3/16"
Width24 11/16"
Depth22 1/16"
Warranty10 Year No Hassle Replacement and 10 Year Parts with Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
SKULS38343850
Weight (in lbs)22.000000
Brand/ManufacturerOnline Supply
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
Length50 feet
Safety InformationPROPOSITION 65 WARNING
7 Kilowatt 23,800 BTU ACiQ Heater Coil
SKUEHK07AKB
Weight (in lbs)9.000000
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: KFCEH2501C08

Tempstar Equivalent: EHK07AKB

Bryant Equivalent: KFCEH2501C08

Heating BTU23,800
Electric Heat7 Kilowatts
Electrical208 / 230 / 240 Volts / Phase 1
PhaseSingle Phase
Min. Breaker Size45 Amps
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
No Thank You
SKUNOTHANKYOU
Weight (in lbs)120.000000
