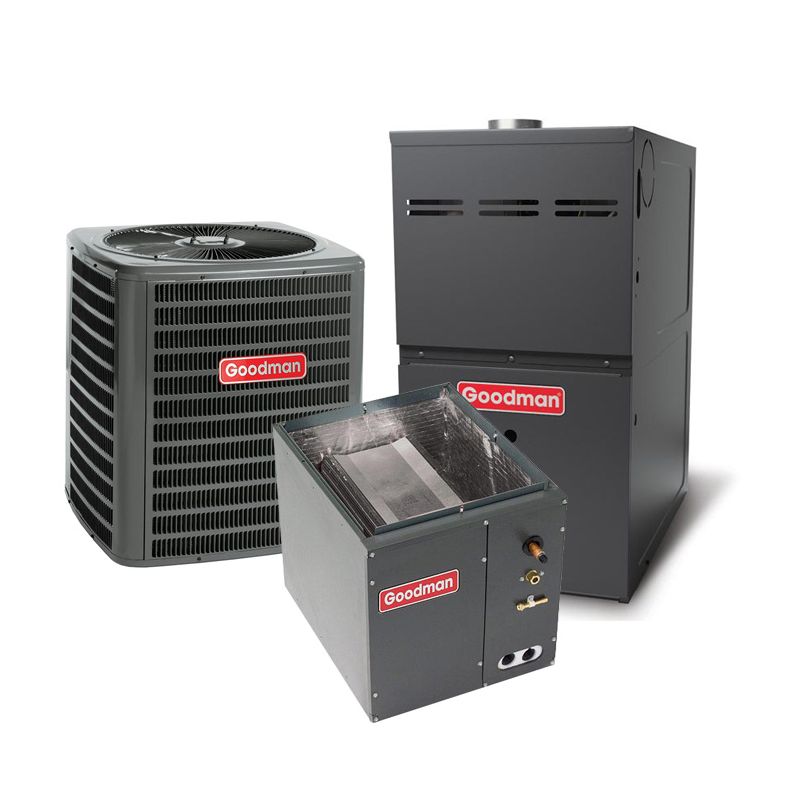

3 Ton 18 SEER 80% AFUE 100,000 BTU Goodman Gas Furnace and Heat Pump System - Upflow
Model: GSZC180361 / CAPF4961C6 / GMVC81005CN / TX3N4

Price as configured: $5,007.95

3 Ton 18 SEER 80% AFUE 100,000 BTU Goodman Gas Furnace and Heat Pump System - Upflow

By: Goodman Model: GSZC180361 / CAPF4961C6 / GMVC81005CN / TX3N4 ID: 17991

More Views

Suggested Retail: $5,990.95

Price as configured: $5,007.95

Bread Checkout

Goodman Manufacturing
Usually Ships in 3-5 Business Days
AHRI Certified
201894194

New
Requires: Metal Flue Vent Piping

* Required Fields

Price as configured: $5,007.95

  • Low Price Guarantee
  • Award Winning Support

Accessories

Description

Details

100,000 BTU 80% AFUE Variable Speed Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

The GMVC81005CN gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, we are proud to offer you the Goodman GMVC81005CN gas furnace.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (in average climate conditions)
  • 100,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU

At an input of 100,000 BTU’s, the GMVC81005CN Goodman gas furnace is suitable for up to a medium-sized house in an average climate. The output of this furnace is 80,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GMVC81005CN Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GMVC81005CN requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Two Stage Variable Speed Furnace

The GMVC81005CN is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Warranty

The GMVC81005CN comes standard with Goodman’s 10 year parts warranty and its phenomenal lifetime heat exchanger warranty. In order to maintain this warranty, the installation must follow your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

The tubular heat exchanger on the GMVC81005CN is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GMVC81005CN furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the upflow or horizontal positions, allowing for a broader application potential.

3 Ton 18 SEER Two-Stage Goodman Heat Pump

OVERVIEW

Considered part of the highest-quality series offered by Goodman, the GSZC180361 heat pump condenser is a superior to any other series made by Goodman. With all of its features, the GSZC180361 continues to promote Goodman’s goals to provide enhanced comfort at a high efficiency while staying under budget.

QUICK FACTS

  • Designed to cover a medium-sized house in average climates
  • 3 ton, 18 SEER heat pump condenser
  • Two stage compressor
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
3 ton

At 3 tons, the GSZC180361 heat pump by Goodman is suitable for a medium-sized house in average climate conditions. Please note that for this unit to function, a compatible air handler or coil is required. Sometimes, the air handler or coil that is paired in a system bundle will be larger than the heat pump condenser in tonnage to maintain the unit’s overall efficiency.

18 SEER

At 18 SEER, the GSZC180361 condenser is manufactured to be the highest possible efficiency made by Goodman today. The GSZC180361 can save you around 25% in energy bills in comparison to a 14 SEER standard efficiency system, saving you a significant amount of money over time to spend on the things you care about most instead of on your energy bills.

Two Stage Compressor, Designed with Comfort in Mind

The Goodman GSZC180361 heat pump is built with a two stage compressor, allowing for a more stable temperature output. With its built-in compressor muffler, noise blanket, and superior cabinet insulation, the noise output is decreased to make it almost whisper-quiet, along with the two stage compressor that decreases operation noise output when on the lower stage.

Warranty

The GSZC180361 heat pump condenser comes standard with a 10 year parts warranty. To provide a peace of mind on its two stage compressor, Goodman also offers a lifetime heat exchanger warranty when paired with a new air handler or coil. All of these warranties require an installation that follows your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

With its durable structure designed for harsh conditions and its paint layer that makes it approved for up to 500 hours of salt spray, the Goodman GSZC180361 heat pump condenser is compliant with Florida 2010 integrity building codes when properly anchored. For enhanced reliability, the liquid line is fitted with a bi-flow filter drier, lowering general wear-and-tear by filtering out impurities and system contaminants. All of these features provide peace of mind to system owners, lowering the costs of equipment upkeep.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GSZC180361 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels—one on the side and one on the top—to allow for a much easier maintenance procedure should the need for maintenance arise.

4 to 5 Ton 21" Width Goodman Vertical Evaporator Cased Coil

OVERVIEW

With the CAPF4961C6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPF4961C6 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 4 to 5 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application
4 to 5 Tons

The Goodman CAPF4961C6 evaporator coil is rated for a 4 to 5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.
Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPF4961C6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPF4961C6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access.
Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPF4961C6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPF4961C6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.

Goodman 2.5 to 3 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX3N4, you can be assured that your two-and-a-half or three ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX3N4 is a good start.

Product Compatible With
  • Goodman GSX130301 Air Conditioners
  • Goodman GSX130361 Air Conditioners
  • Goodman DSXC160361 Air Conditioners
  • Goodman GSZ130301 Heat Pumps
  • Goodma GSZ130361 Heat Pumps
  • Goodman SSZ140301 Heat Pumps
  • Goodman SSZ140361 Heat Pumps
  • Goodman SSZ140381 Heat Pumps
  • Goodman SSZ160301 Heat Pumps
  • Goodman SSZ160361 Heat Pumps
  • Goodman DSZC160361 Heat Pumps
  • Goodman DSZC180361 Heat Pumps
  • Goodman CAPF3030*6 Evaporator Coils
  • Goodman CAUF3030*6 Evaporator Coils
  • Goodman CAPF3642*6 Evaporator Coils
  • Goodman CAUF3642*6 Evaporator Coils
  • Goodman CHPF3636B6 Evaporator Coils
  • Goodman CSCF3036N6 Evaporator Coils
  • Goodman CSCF3642N6 Evaporator Coils

Specifications

100,000 BTU 80% AFUE Variable Speed Goodman Gas Furnace - Upflow/Horizontal

skuGMVC81005CN
manufacturerGoodman
afue80%
heating_btu100,000
blower_motorVariable Speed
cfm2000
configurationUpflow/Horizontal
flue_requirementMetal
electrical120 V. 1 Phase 60 Hz
burner_stagesTwo
fuel_typeGas
height34.5"
width21"
depth28.75"
weight156.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING


3 Ton 18 SEER Two-Stage Goodman Heat Pump

skuGSZC180361
manufacturerGoodman
hspf10
cooling_btu34,800
heating_btu35,000
decibel72
energy_starYes
seer18
eer13.5
compressor_stageTwo Stage
compressor_typeScroll
liquid_line3/8"
suction_line7/8"
electrical208/230 V 1 Phase 60 Hz
max_breaker_size35
amperage_req21.3
nominal_capacity3 Ton
height40"
width35 1/2"
depth35 1/2"
weight260.0000
warranty10 Year Unit Replacement Limited Waaranty
resources You will need Adobe® Acrobat® Reader to view PDF documents.


4 to 5 Ton 21" Width Goodman Vertical Evaporator Cased Coil

skuCAPF4961C6
manufacturerGoodman
configurationUpflow / Downflow
refrigerantR410A or R22
liquid_line3/8"
suction_line7/8"
nominal_capacity4 Ton to 5 Ton
styleA-Coil
height30"
width21"
depth21"
weight46.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
safety_informationPROPOSITION 65 WARNING


Goodman 2.5 to 3 Ton TXV Kit - R-410A

skuTX3N4
manufacturerGoodman
refrigerantR410A
weight2.5000
safety_informationPROPOSITION 65 WARNING



Reviews

Reviews

2 Customer review(s)
Great service
easy to navigate and great options
Price
Service
Quality
Review by Tom / (Posted on 27/07/17)
I'm glad I added it.
This was the first time adding a TXV kit. I was reluctant because you could just leave the unit with the standard set orifice. But, now 7 months later, it's been working fine. It makes sense to put one, just like a thermostat for a car. It makes things run consistent on the output.
Quality
Price
Service
Review by Thomas / (Posted on 25/03/19)
