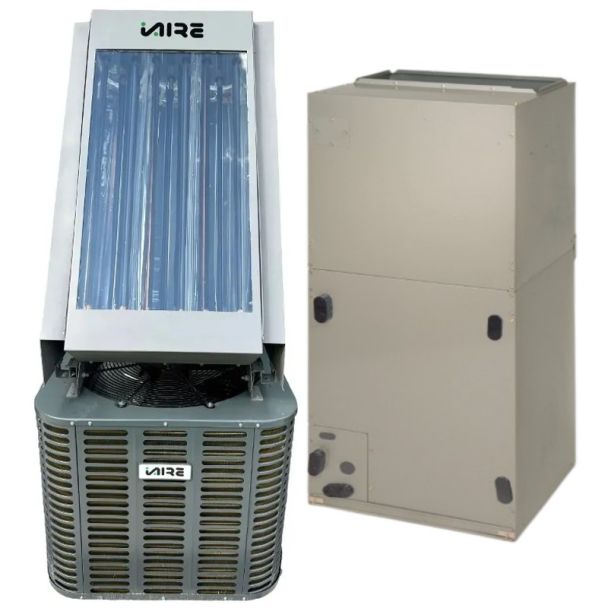

3 Ton 18 SEER Solar Heat Pump Split System by iAIRE

By

iAIRE

In stock

Model

SHRPZ-360G00A000-0 / AHUPZ-2436G00A000-F

ID

136200

Availability: Hurry! Limited Stock

Authorized iAIRE Dealer

AHRI Number:210838003

Suggested Retail $17,711.67
Your Low Price $10,213.34


GET UP TO 70% BACK
of the Total Install Cost!

  • 2 Rebates Available for iAIRE
  • Call now and find out how to claim yours today!
Free Shipping

Required Fields *

Customize 3 Ton 18 SEER Solar Heat Pump Split System by iAIRE
Solar Air Conditioner Heat Pump 3 Ton 208/230 V Single Phase by iAIRE   + $7,884.00
Solar Air Handling Unit 2-3 Ton 208/230V Single Phase by iAIRE   + $2,329.34

$10,213.34

Accessories for this product
Customer Reviews

Description

Get Paid to Go Solar: Huge Rebates & Energy Savings

iAIRE’s Solar-Powered Heat Pump Systems are an eco-friendly way to stay comfortable in your home. These heat pump systems help customers save energy, utilize green power, and help reduce their carbon footprint. iAIRE’s products do not just save you money on your electric bill, but they also qualify you for government and utility company rebates thanks to their solar-powered technology. All iAIRE products are designed and manufactured in the United States to provide cleaner air and sustainable energy.

Higher Efficiency = Higher Savings

  • Over $1500 in energy savings within the first year versus traditional furnace and AC systems
    • 85% increase in heating efficiency
    • 25% increase in cooling efficiency

Cover Costs with Incredible Rebates

  • Claim a 40% Solar Tax Credit on the purchase price and the cost of installation COMBINED!!
  • Federal Heat Pump Rebate - Earn up to $8,000 back on the price of the heat pump
  • If the total cost of the purchase and installation is roughly $20,600, the average rebate a homeowner can expect back can be as high as $14,180 for this system. This assumes that the homeowner is eligible for the entire $8,000 heat pump rebate and claims the 30% credit on their $20,512 total cost, providing them with an additional $6,180.

Green Power in Action

The SEER rating on iAIRE's solar-powered condensers is much higher than the average air conditioner or heat pump. While in operation however, these efficiency ratings they boast can reach extraordinary heights. Through numerous tests, iAIRE has found that the EER ratings on their units are well over 300% higher than the standard residential unit thanks to their energy-saving variable speed compressors as well as the use of solar power. This gives us an approximated SEER rating of about 25, something incredibly unheard of for the typical split unit condenser. To showcase this, iAIRE has set up their 2 ton residential SHRPZ-24 unit in southern Florida with a server that monitors all performance data while in use. Check out the live data here at the iAIRE Solar HVAC Monitoring Site and witness the unbelievable efficiency yourself.

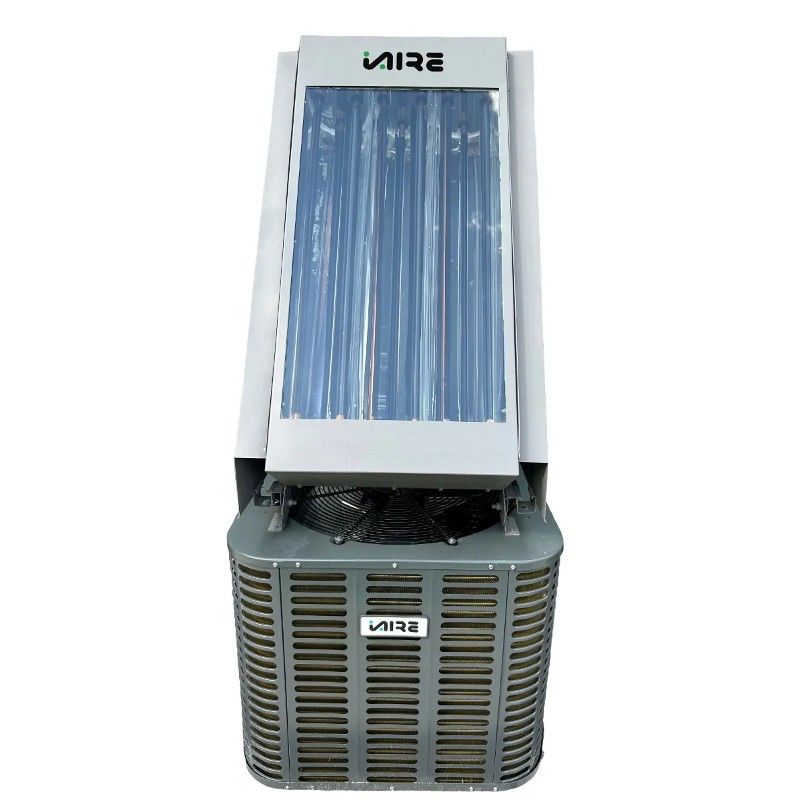

Solar Air Conditioner Heat Pump 3 Ton 208/230 V Single Phase by iAIRE

OVERVIEW

The iAIRE 3 Ton Solar Heat Pump condenser is twice as efficient as a standard residential split unit. A solar box equipped with chambers lined with specialty reflective film is mounted to the top of the condensing unit. Ambient light is converted to thermal energy which reduces the energy demand on the compressor.

QUICK FACTS

  • 3 ton, 18 SEER heat pump condenser
  • 34,500 BTU Capacity
  • 208/230 Voltage 60 Hz
  • Variable Capacity
  • Made in the USA
  • Solar panel film utilizes all light rays and can work in indirect sunlight
  • OG-100 rated solar panel that is more than 65% effective than other solar panels
  • 10 Years Compressor and 1 Year Replacement Parts Warranty – No Online Registration Required

Go Green

iAIRE Solar Heat Pump Condensers are eligible for a 40% Federal Solar Tax Credit on normal jobs and 60% Tax Credit on low-income housing. Not only are you getting federal solar tax credits and heat pump rebates, but you are also saving the planet with Green Solar Technology. For more information on Solar Tax Credits, please see the Homeowner's Guide to the Federal Tax Credit for Solar Photovoltaics.

3 Tons

This Solar Heat Pump Condenser from iAIRE has an output of 3 tons to heat up a house with solar panels. iAIRE’s Solar HVAC technology utilizes the sun’s energy to put heat into the refrigerant. This process replaces a portion of the energy the compressor would normally put into the system from the electrical network in the building.

Warranty

iAIRE offers a 10-year parts warranty and 10 year compressor warranty that will be limited to replacement parts only. Effective warranty period is 120 months from the date of shipment.

Durability and Reliability

On iAIRE Solar Heat Pump Condensers, a Variable Frequency Drive (VFD) is installed on the compressor that prevents it from cycling on and off as often as a typical standard unit. This VFD massively decreases in the inrush current when turning the condenser on and also slows the speed of the compressor to keep the system running at its normal operating pressure, causing overall compressor life expectancy to be longer.

The cabinet of iAIRE units are extremely durable and last longer than the average condenser. The solar box design uses rolled aluminum chambers with the solar film applied to the aluminum. These chambers are rolled to a dimension to concentrate the solar energy to a specific spot in the chambers.

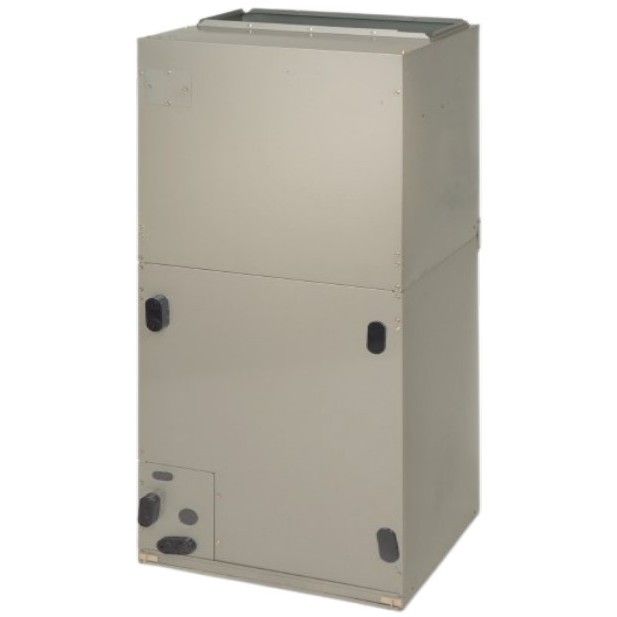

Solar Air Handling Unit 2-3 Ton 208/230V Single Phase by iAIRE

OVERVIEW

The iAIRE 2-3 Ton Solar Air Handling Unit is twice as efficient as a standard residential air handler. The iAIRE Air Handler pairs with iAIRE's Solar Condensing Unit/Heat Pump which has a solar box mounted to the top that is equipped with chambers lined with specialty reflective film.

QUICK FACTS

  • 2-3 ton
  • 24,000 or 36,000 BTU Capacity
  • 208/230 Voltage 60 Hz
  • No Controls
  • Made in the USA

Go Green

iAIRE Solar Air Handling units are eligible for a 40% Federal tax credit on normal jobs and 60% credit on low-income housing. Not only are you getting federal solar tax credits and heat pump rebates, but you are also saving the planet with Green Solar Technology.

2-3 Tons

This Solar Air Handling Unit has an output of 2-3 tons when paired with a solar condensing unit. iAIRE’s Solar HVAC technology utilizes the sun’s energy to put heat into the refrigerant. This process replaces a portion of the energy the compressor would normally put into the system from the electrical network in the building.

Warranty

iAIRE offers a 1-year parts warranty that will be limited to replacement parts only. iAIRE products must be installed by a certified contractor. Effective warranty period is 120 months from the date of shipment.

Durability and Reliability

The cabinet of iAIRE units are extremely durable and last longer than the average air handler. The iAIRE Air Handler pairs with iAIRE's Solar Condensing Unit/Heat Pump which has a solar box mounted to the top that is equipped with chambers lined with specialty reflective film.

Product Specifications

More Information
Solar Air Conditioner Heat Pump 3 Ton 208/230 V Single Phase by iAIRE
SKUSHRPZ-360G00A000-0
Weight (in lbs)262.000000
AHRI Certificate Number210838003
Brand/ManufactureriAIRE
HSPF9
Cooling BTU34,500
Heating BTU34,500
Decibel Level (dBA)78
RefrigerantR410A
SEER1 (Efficiency)18
EER11.6
Condenser StagesSingle Stage
Compressor TypeRotary
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 230 Volts Single Phase 60 Hz
PhaseSingle Phase
Wattage2974
Max Breaker Size40 amps
Min. Breaker Size24.2 amps
Tonnage3 Ton
CertificationOG-100 Certified to the Solar certification on ICC901/SRCC100
Height66.21"
Width29.13"
Depth29.13"
Warranty10 Year Compressor Warranty and 10 Year Part Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Solar Air Handling Unit 2-3 Ton 208/230V Single Phase by iAIRE
SKUAHUPZ-2436G00A000-F
Weight (in lbs)150.000000
Brand/ManufactureriAIRE
Cooling BTU36,000
Blower MotorVariable Speed ECM Motor
Maximum CFM1000
Horsepower0.5
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208/230  V, 1 Phase,  60 Hz
Max Breaker Size15 Amps
Fuel TypeElectric
Height53 7/16"
Width19 1/4"
Depth21 1/8"
Warranty1 - Year Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
