3 Ton Mitsubishi Multi-Positional Air Handler-R410A

OVERVIEW

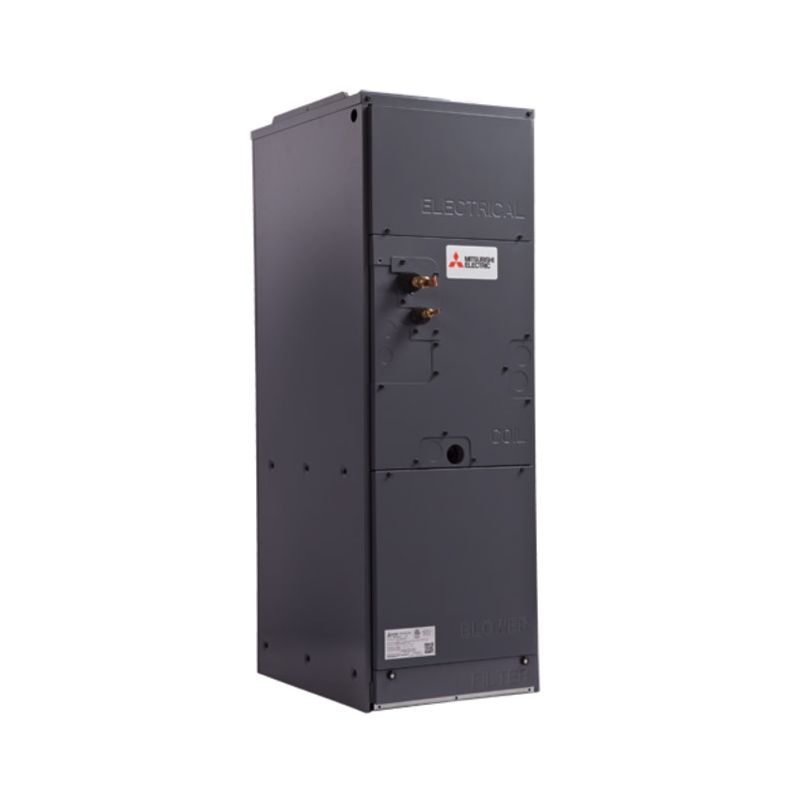

The Mitsubishi PVA-A36AA7 air handler is the indoor unit half of an extremely efficient central heat pump system. Designed to be superior over other split system air handlers with its inverter technology, this unit lives up to the Mitsubishi name as a member of one of the most prominent brands in the industry.

QUICK FACTS

• 3 ton central split system air handler
• Can be paired with a heat pump to heat and cool up to a medium-sized house (depending on climate)
• Multipositional - Can be installed horizontally or vertically
• Equipped with intelligent inverter technology to keep your home comfortable
• Superior energy and operational efficiency
• Pairing with Mitsubishi's 3 ton PUY, PUZ, and PUZ-H condenser models is recommended

3 Ton, 36,000 BTU Output

With an output of 36,000 BTU, the Mitsubishi PVA-A36AA7 is generally able assist a 3 ton condenser with heating and cooling up to a medium-sized house, depending on variables such as your insulation. The unit comes standard encased internally with fiberglass-free insulation, decreasing airflow leakage down to less than 1% in standard conditions. This promotes temperature transfer to your home and decreases runtime of its paired unit since more of the conditioned air is sent into your home. The air handler is compatible with Mitsubishi's PUZ-H Hyper Heat condensers as well, which reliably keeps your home comfortable even through the coldest months of the year in most climates, and operates at a higher efficiency and at a lower temperature than most other central split systems.

Warranty

On all of its inverter equipment, Mitsubishi offers their standard 5 year parts warranty from the time the unit is purchased. If the unit is installed following state and local codes and the unit is registered through Mitsubishi, the unit’s warranty is extended to a 10 year parts warranty, giving you peace of mind that if a rare problem does occur on your unit, you are covered.

Enhanced Comfort

With a variable speed compressor and a multi-speed ECM motor, the Mitsubishi PVA-A36AA7 is designed to keep full control over your home’s comfort by changing the paired condenser's output based on the thermostat requirements. From enhanced comfort in your home to light-commercial climate control, this air handler can meet your goals in the space that you need it.

Condenser Pairing

The following list of condenser models is what we recommend pairing with the PVA-A36AA7. Each one is an AHRI-certified match with the air handler, ensuring reliable performance for both units.

• PUZ-HA36NHA5
• PUZ-HA36NKA
• PUZ-A36NKA7
• PUZ-A36NKA8
• PUZ-HA36NKA1
• TRUZA0361KA70
• TRUZH0361HA50
• TRUZH0361KA00
• TRUZH0361KA10
