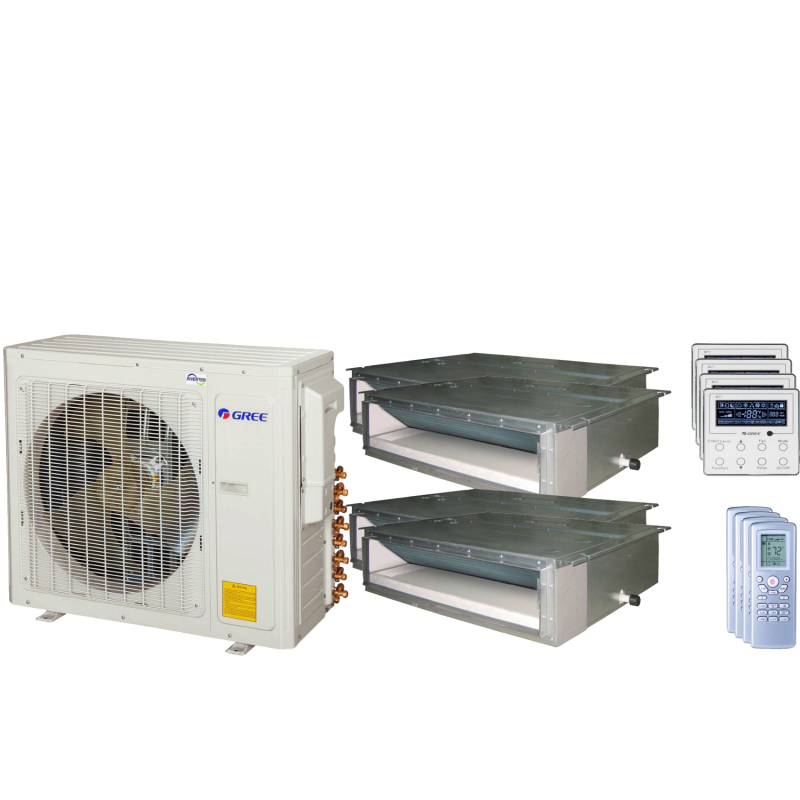

30,000 BTU 16 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+9+9+12

Name: 30,000 BTU 16 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+9+9+12
Brand: Gree
SKU: MULTI30HP230V1CO / 3-DUCT09HP230V1AD / DUCT12HP230V1AD
Availability: OutOfStock

Required Fields *

Be the first to review this product

Out of stock

Gree

Out of stock

Model

MULTI30HP230V1CO / 3-DUCT09HP230V1AD / DUCT12HP230V1AD

52892

Description

The Gree Quad Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 16 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

Product Specs

More Information
30,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2-4 Zone Heat Pump Condenser
Feature	Spec
SKU	MULTI30HP230V1EO
Refrigerant Charge	Pre-charged for: 131'
Weight (in lbs)	169.4
AHRI Certificate Number	210278977 & 210278978
Brand/Manufacturer	Gree
UPC	841999159160
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 82'
Additional Information	Maximum System Piping: 230'
Cooling BTU	28,400
Heating BTU	30,000
Decibel Level (dBA)	Outdoor Unit: 59 dB(A)
Energy Star	Yes
Refrigerant	R410A
HSPF2	10
SEER2 (Efficiency)	21
EER2	12.5
Compressor Type	Rotary
Liquid Line	liquid_line=1/4" (4)
Suction Line	suction_line=3/8" (4)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	30 amps
Min. Breaker Size	20 amps
Tonnage	2.5 Ton
BTU/Tonnage	30,000 BTU/2.5 Ton
Min/Max Outdoor Temp for Heating	-5F - 75F
Min/Max Outdoor Temp for Cooling	0F - 118F
Height	31"
Width	36.2"
Depth	15.7"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Compatibility Chart Installation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Concealed Duct Gree Mini Split Low Static Multi Zone Air Handler
Feature	Spec
SKU	DUCT09HP230V1AD
Weight (in lbs)	60
Brand/Manufacturer	Gree
UPC	na
Additional Information	Drain: 1"
Cooling BTU	8,500
Heating BTU	9,500
Maximum CFM	147-265 CFM
Decibel Level (dBA)	Indoor Unit: 31-37 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=1/4"
Suction Line	suction_line=3/8"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone
Height	7.9"
Width	29.2"
Depth	27.6"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Concealed Duct Gree Mini Split Low Static Multi Zone Air Handler
Feature	Spec
SKU	DUCT09HP230V1AD
Weight (in lbs)	60
Brand/Manufacturer	Gree
UPC	na
Additional Information	Drain: 1"
Cooling BTU	8,500
Heating BTU	9,500
Maximum CFM	147-265 CFM
Decibel Level (dBA)	Indoor Unit: 31-37 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=1/4"
Suction Line	suction_line=3/8"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone
Height	7.9"
Width	29.2"
Depth	27.6"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Concealed Duct Gree Mini Split Low Static Multi Zone Air Handler
Feature	Spec
SKU	DUCT09HP230V1AD
Weight (in lbs)	60
Brand/Manufacturer	Gree
UPC	na
Additional Information	Drain: 1"
Cooling BTU	8,500
Heating BTU	9,500
Maximum CFM	147-265 CFM
Decibel Level (dBA)	Indoor Unit: 31-37 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=1/4"
Suction Line	suction_line=3/8"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone
Height	7.9"
Width	29.2"
Depth	27.6"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Concealed Duct Gree Mini Split Low Static Multi Zone Air Handler
Feature	Spec
SKU	DUCT12HP230V1AD
Weight (in lbs)	64
Brand/Manufacturer	Gree
UPC	na
Additional Information	Drain: 1"
Cooling BTU	11,900
Heating BTU	13,100
Maximum CFM	177-294 CFM
Decibel Level (dBA)	Indoor Unit: 32-39 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=1/4"
Suction Line	suction_line=3/8"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone
Height	7.9"
Width	29.2"
Depth	27.6"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
