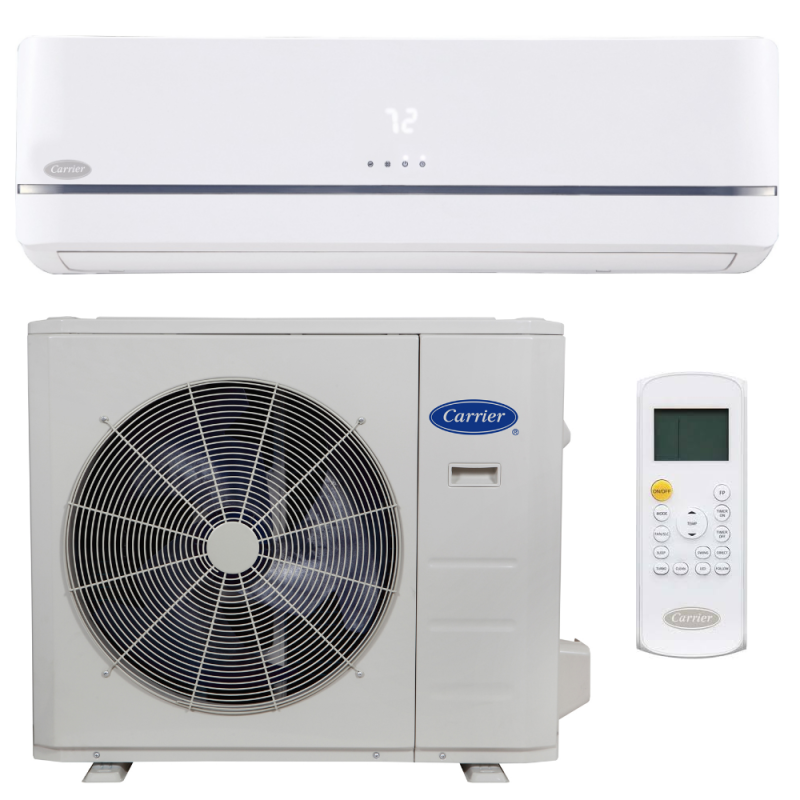

30,000 BTU 19.8 SEER Wall Mounted Carrier Mini Split Performance Series Single Zone Heat Pump

30,000 BTU 19.8 SEER Wall Mounted Carrier Mini Split Performance Series Single Zone Heat Pump
By

Carrier

Out of stock
Model

40MAHBQ30XA3 / 38MARBQ30AA3

ID

9769

OVERVIEW

The 40MAHBQ30XA3 / 38MARBQ30AA3 Performance series single zone mini split is a heat pump solution with a wall mounted air handler for almost any space. With its wide heating and cooling range and quiet operation, the 40MAHBQ30XA3 / 38MARBQ30AA3 is a reasonably priced solution for almost any application.

QUICK FACTS

  • Can generally heat and cool up to a medium-sized room in mild climates
  • 30,000 BTU, 19.8 SEER heat pump wall mounted mini split with remote control
  • Cooling from -13°F - 122°F outside temperatures
  • Integrated base pan heater allows heating from -22°F - 86°F outside temperatures
  • Built-in safety monitoring, including refrigerant leakage detection
  • Improved serviceability
  • Quiet and efficient operation
30,000 BTU, 19.8 SEER

With an output of 30,000 BTU, the 40MAQB30B-3 / 38MAQB30R-3 has the capability to heat and cool up to a medium-sized room in average climates. With an efficiency rating of 19.8 SEER, bringing comfort to that space is possible while maintaining a high efficiency over many other solutions, allowing you to keep more of your hard-earned money over time by not spending it on your electric bill.

Warranty

With an installation that follows your state and local installation codes and registration through the manufacturer within 90 days of installation, the 40MAQB30B-3 / 38MAQB30R-3 is backed by Carrier's 10 year parts and compressor warranty for the original registrant.

Quality of Comfort

With its many settings selectable from the unit's included remote, the 40MAQB30B-3 / 38MAQB30R-3 can match almost any comfort-based need, from its Follow Me setting that senses the temperature at the remote instead of at the unit to your standard, unchanged output setting. These settings along with others and its quiet operation allow the 40MAQB30B-3 / 38MAQB30R-3 to bring a high quality of comfort to almost any space.

Reliable Heating and Cooling

For a much more reliable operation, safety monitors all over the 40MAQB30B-3 / 38MAQB30R-3 are constantly taking readings to prevent any possible problems that may arise from general wear-and-tear on the unit. Moreover, the unit has an integrated base pan heater, allowing it to heat all the way down to -22°F.

More Information
30,000 BTU 19.8 SEER Wall Mounted Carrier Mini Split Performance Series Single Zone Heat Pump
FeatureSpec
SKU40MAHBQ30XA3 / 38MARBQ30AA3
Refrigerant ChargePre-charged for: 26'
Weight (in lbs)100
AHRI Certificate Number8738639
Brand/ManufacturerCarrier
ControllerWireless Included
Additional InformationHeat Pump
Additional InformationMinimum Line Set Length: 10'
Additional InformationMaximum Line Set Length: 164'
Additional InformationDrain: 5/8"
Cooling BTU30,000 BTU
Heating BTU30,000 BTU
Maximum CFM520-870 CFM
Energy StarNo
RefrigerantR410A
CapacityDehumidification Rate: 1.0125 gal/hr
HSPF9.4
EER11.5
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size30 Amps
Min. Breaker Size20 Amps
Amperage Requirement30A
Tonnage2.5 Ton
System Tonnage2.5 Ton
BTU/Tonnage30,000 BTU/2.5 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-13°F-86°F
Min/Max Outdoor Temp for Cooling-13°F-122°F
Zone CompatibilitySingle Zone
HeightIndoor Unit: 13.39" | Outdoor Unit: 31.89"
WidthIndoor Unit: 46.69" | Outdoor Unit: 37.24"
DepthIndoor Unit: 10.16" | Outdoor Unit: 16.14"
Warranty10 years with online registration, 5 years without
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:30,000 BTU 19.8 SEER Wall Mounted Carrier Mini Split Performance Series Single Zone Heat Pump
Your Rating
Customer Questions
Where are the Carrier mini splits made?
Carrier is made in a variety of places and depends on the product type. Their mini-splits come from China. While other product types you can tell by their SKU. If it has an 'R' then it is likely Mexico, if an 'N' it is likely the Unite States. If you have any further questions please feel free to give us a call! Thanks.
