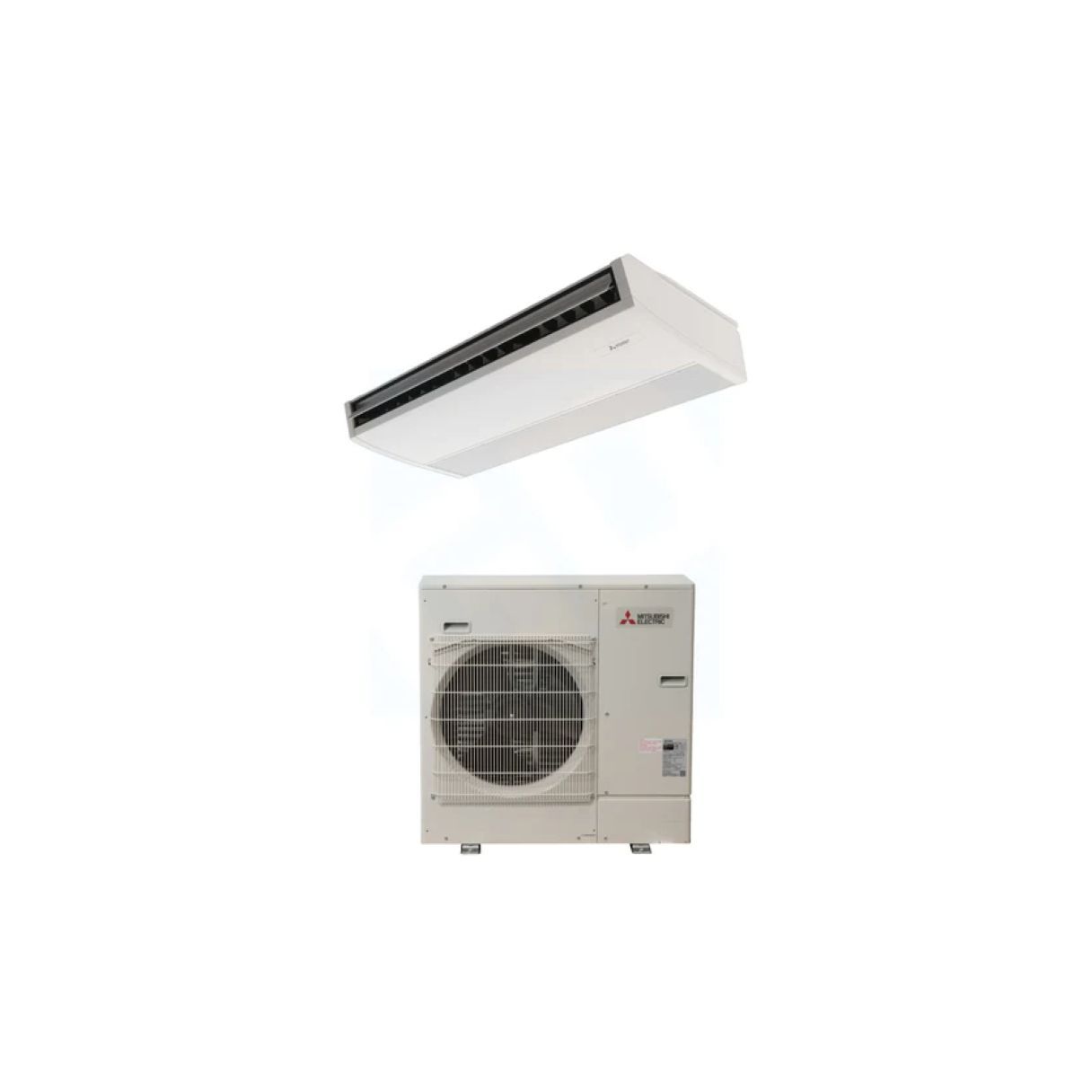

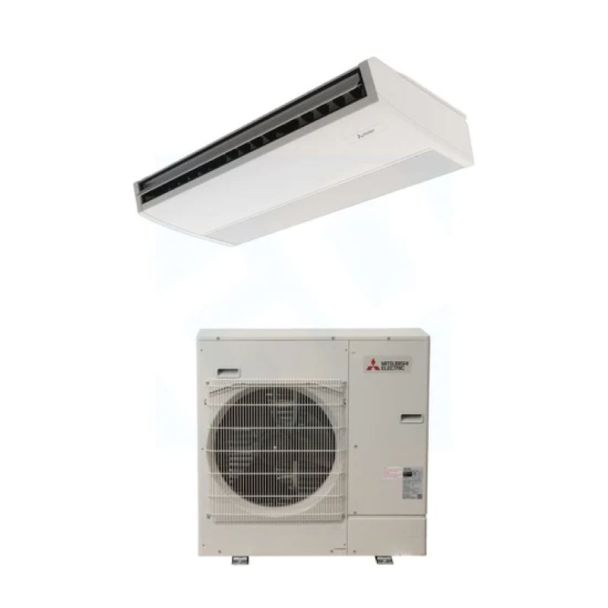

30,000 BTU Mitsubishi P-Series 18.7 SEER2 Single Ceiling-Suspended Mini Split Heat Pump System - R454B | PUY-AH30NL / PCA-AK30NL

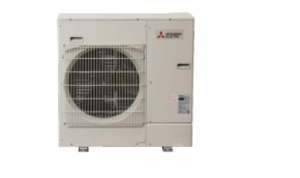

PUY-AH30NL - Outdoor Unit for Ceiling-Suspended Air Conditioning System

The PUY-AH30NL is a high-efficiency outdoor unit designed for use with ceiling-suspended air conditioning systems. It provides excellent cooling and heating capabilities for larger spaces such as retail stores, restaurants, and commercial buildings. Below are the key features and specifications of this outdoor unit:

Key Features:

• Blue Fin Coating: The heat exchanger is coated with an anti-corrosion treatment to protect against salt, sulfur, and other airborne contaminants, especially in coastal and industrial environments.
• Continuous Operation: Capable of 24-hour continuous operation in cooling mode, ensuring consistent comfort throughout the day and night.
• Fast Restart: Quickly resumes operation after power interruptions, minimizing downtime and maintaining comfortable indoor temperatures.
• High Pressure Protection: Features safeguards to prevent system damage due to high pressure, ensuring long-term reliability and performance.
• INVERTER-Driven Compressor: Adjusts compressor speed based on cooling demands, optimizing energy efficiency while maintaining stable temperatures across a wide range of conditions.
• Low Ambient Cooling: Capable of providing full cooling capacity even at outdoor temperatures as low as 0°F, making it suitable for colder climates.
• Pre-Charged Refrigerant: The unit is pre-charged with refrigerant for specific line lengths, which simplifies the installation process and reduces setup time.
• Seacoast Protection: Features a robust anti-corrosion system that includes a treated heat exchanger coil and coated external panels, rated for 2,000 hours of testing under ASTM B117 standards, ensuring durability in coastal areas.
• Superior Energy Efficiency: Designed to deliver high performance while minimizing energy consumption, making it an environmentally friendly and cost-effective solution.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 30,000 BTU/h
  • Rated Capacity: 28,200 BTU/h
  • Minimum Capacity: 9,800 BTU/h
• Power Consumption:
  • Maximum Power Input: 3,070 W
  • Rated Power Input: 2,850 W
• Moisture Removal: 9.9 pints/h
• Energy Efficiency Ratings:
  • SEER2: 18.7
  • EER21: 9.8
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 25 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 37-13/32 x 14 x 37-1/8 inches (950 x 355 x 943 mm)
• Outdoor Unit Weight: 155 lbs (70 kg)

The PUY-AH30NL outdoor unit is engineered for optimal energy efficiency and robust performance, making it an ideal solution for maintaining ideal temperatures in a wide variety of commercial and residential environments.

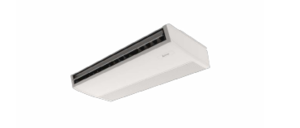

PCA-AK30NL Air Handler Overview

The PCA-AK30NL air handler is a high-performance solution designed to deliver efficient and reliable cooling and heating. When paired with the PUY-AH30NL outdoor unit, this air handler utilizes Inverter-driven technology, ensuring quiet operation, high energy efficiency, and optimal comfort in residential and commercial spaces. With its robust features and design, the PCA-AK30NL is an ideal choice for those seeking dependable comfort year-round while keeping energy consumption to a minimum.

Key Features

• Inverter Technology: The PCA-AK30NL is equipped with advanced Inverter technology, which continuously adjusts the compressor speed based on the current demand for heating or cooling. This results in enhanced energy efficiency, providing precise temperature control while reducing energy consumption.
• Energy Efficient: With its Inverter-driven compressor, the PCA-AK30NL optimizes performance by matching output with real-time demands, resulting in energy savings and lower operational costs. It is an excellent choice for reducing the environmental impact of your heating and cooling system.
• Quiet Operation: The PCA-AK30NL is designed to operate quietly, providing a peaceful and comfortable environment. Its noise-reducing features make it ideal for use in areas such as bedrooms, living rooms, offices, and commercial spaces where noise reduction is essential.
• Compact and Space-Saving Design: The compact size and sleek design of the PCA-AK30NL allow it to be installed in various spaces without taking up valuable room. It is a space-efficient solution for both residential and commercial applications, offering flexibility in placement.
• Durability: The PCA-AK30NL is constructed using high-quality materials, ensuring long-lasting durability and dependable performance. It is designed to withstand the demands of everyday use, providing years of consistent and reliable service.

Specifications

• Cooling Capacity: 30,000 BTU/h
• Heating Capacity: 34,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 40-1/2" (W) x 13-3/8" (H) x 28-3/8" (D)
• Weight: 44.9 lbs

Benefits

• Enhanced Comfort: Thanks to the Inverter technology, the PCA-AK30NL ensures precise and consistent temperature control. It adjusts output in real-time, maintaining an ideal indoor climate without the temperature fluctuations typically seen in traditional systems.
• Improved Energy Savings: By continuously adjusting the compressor speed to match the current demand, the PCA-AK30NL reduces energy waste. This results in significant energy savings, reducing the overall cost of heating and cooling.
• Quiet and Discreet Operation: The PCA-AK30NL operates quietly, ensuring that it will not disturb the comfort of your living or working space. Its low noise levels make it a great choice for bedrooms, study rooms, or offices where a quiet environment is required.
• Compact and Versatile: The PCA-AK30NL's compact and space-saving design allows for easy installation in various locations. Its sleek appearance complements a variety of interior styles, making it a suitable choice for both residential and commercial settings.
• Reliable and Long-Lasting: The high-quality build and materials used in the PCA-AK30NL ensure that it will deliver consistent performance for years to come. With minimal maintenance, this air handler offers long-lasting value for your investment.

Maintenance

• Low Maintenance Requirements: The PCA-AK30NL requires minimal maintenance, thanks to its durable design and advanced technology. Regular cleaning of filters and occasional system checks are recommended to ensure optimal performance.
• Washable Filters: The air handler is equipped with washable filters that can be easily cleaned and reused. This reduces the need for frequent replacements and offers a cost-effective way to maintain the system's performance.
• Easy to Service: With a user-friendly design, the PCA-AK30NL is easy to service, ensuring quick and hassle-free maintenance. This helps to extend the life of the system and ensures it continues to operate efficiently.

Applications

• Residential Use: The PCA-AK30NL is ideal for medium to large homes, providing efficient and reliable cooling and heating for living rooms, bedrooms, kitchens, or any other space that requires consistent temperature control. It ensures year-round comfort while maintaining low energy consumption.
• Light Commercial Use: This air handler is also suitable for light commercial applications, such as small offices, retail spaces, or other commercial environments where quiet operation, energy efficiency, and consistent comfort are needed.

In conclusion, the PCA-AK30NL air handler offers a high-efficiency solution for both residential and commercial applications. With its Inverter-driven technology, energy savings, and quiet operation, it provides consistent comfort and enhanced performance. Whether for a home or business, the PCA-AK30NL is an excellent choice for anyone seeking reliable, energy-efficient heating and cooling throughout the year.
