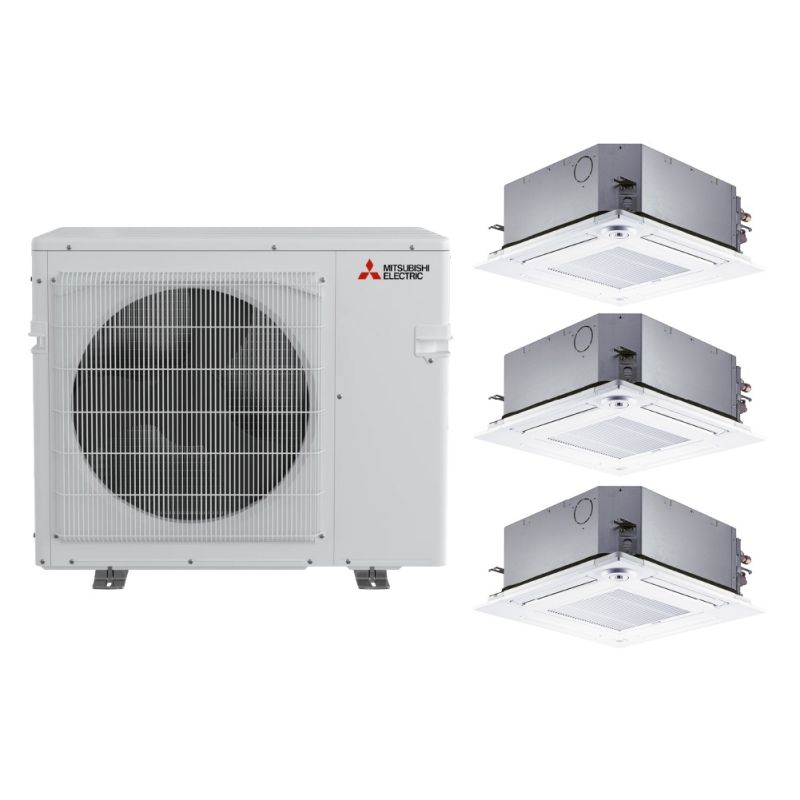

Mitsubishi 30,000 BTU P-Series 21 SEER2 Three Zone Ceiling Cassette Mini Split Heat Pump System – R454B | 230V 9 + 9 + 15

30,000 BTU Mitsubishi P-Series 21 SEER2 Three Zone Ceiling Cassette Mini Split Heat Pump System - R454B | 9 + 9 + 15

With two 9k units and a 15k ceiling cassette, this P-Series system offers excellent flexibility and zone-specific comfort for homes or light commercial spaces.

• Outdoor Unit: MXZ-4D30NL
• Indoor Units: 2 x SLZ-AF09NL, 1 x SLZ-AF15NL
• Total Capacity: 30,000 BTU
• SEER2 Rating: 21
• Refrigerant: R454B
• Mounting Type: Ceiling Cassette

Perfect for diverse room sizes, this unit delivers powerful performance with a sleek, ceiling-integrated look.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.

Mitsubishi SLP-18FAU Grille for KF Cassettes

The Mitsubishi SLP-18FAU is the standard grille option required to complete a KF cassette installation.

Features:

• Overlaps a 2' x 2' ceiling tile to hide indoor unit from view.

Compatible Indoor Units:

Ceiling Cassette

• KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA

Mitsubishi 9,000 BTU P-Series Single or Multi Zone Ceiling Cassette Mini Split Air Handler – R454B | 230V

SLZ-AF09NL Air Handler Overview

The SLZ-AF09NL is a high-performance air handler designed for residential and light commercial use. Paired with the SUZ-AA09NL outdoor unit, this air handler offers reliable and efficient heating and cooling solutions. It features a compact, low-profile design that allows for easy installation in tight spaces, making it ideal for applications where space is limited.

Key Features

• Compact and Low-Profile Design: The SLZ-AF09NL is designed to fit into tight spaces such as ceilings or recessed areas, offering flexibility in installation while maintaining high performance.
• High Energy Efficiency: The air handler is engineered with energy-saving features that reduce electricity consumption, making it a cost-effective option for both residential and commercial applications.
• Quiet Operation: With its advanced noise-reduction technology, the SLZ-AF09NL operates quietly, ensuring a comfortable and peaceful indoor environment.
• Advanced Filtration: The unit is equipped with a high-efficiency filter that improves indoor air quality by capturing dust, allergens, and other airborne particles.
• Flexible Drain Options: The air handler provides flexibility in installation, with options for both horizontal and vertical drainage to suit different building layouts.

Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 26-3/8" x 10-1/8" x 27-1/4”
• Weight: 39.7 lbs
• Refrigerant: R410A
• Airflow: 490 CFM

Benefits

• Space-Saving Design: The compact size of the SLZ-AF09NL allows it to fit into small or confined spaces, making it ideal for installations in apartments, small offices, or commercial settings.
• Energy Efficiency: By optimizing cooling and heating output, the SLZ-AF09NL helps reduce energy costs while maintaining high comfort levels.
• Quiet and Comfortable: The quiet operation makes it suitable for environments where noise levels need to be minimized, such as bedrooms, living rooms, or offices.
• Improved Air Quality: With its advanced filtration system, the SLZ-AF09NL enhances indoor air quality by trapping harmful particles, providing a healthier indoor environment.

Applications

• Residential Applications: Perfect for homes where space is limited, the SLZ-AF09NL provides efficient heating and cooling without taking up valuable room space.
• Light Commercial Applications: Ideal for small commercial spaces, such as small offices, retail stores, and other commercial environments requiring compact and efficient climate control.

Maintenance

• Low Maintenance: The SLZ-AF09NL air handler is designed for easy maintenance. Regular filter cleaning and occasional professional servicing ensure long-lasting performance.
• Durable Components: Built with high-quality materials, this air handler is designed to withstand regular use and provide reliable performance for many years.

The SLZ-AF09NL is an efficient, compact air handler suitable for both residential and light commercial applications. Paired with the SUZ-AA09NL outdoor unit, it provides a reliable and cost-effective solution for year-round comfort. With its advanced features, such as quiet operation, high energy efficiency, and flexible installation options, it is an excellent choice for anyone looking to enhance indoor comfort while minimizing energy consumption.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.

Mitsubishi 15,000 BTU P-Series Single or Multi Zone Ceiling Cassette Mini Split Air Handler – R454B | 230V

SLZ-AF15NL Air Handler Overview

The SLZ-AF15NL air handler, paired with the SUZ-AA15NL outdoor unit, is designed to deliver high-efficiency comfort in both residential and light commercial applications. Its compact design and advanced features ensure optimal performance, even in spaces where installation space is limited. With quiet operation and a high-quality filtration system, the SLZ-AF15NL provides a comfortable and healthy indoor environment year-round.

Key Features

• Compact Design: The SLZ-AF15NL is designed with a low-profile and compact construction, allowing for easy installation in tight spaces such as ceilings or narrow areas.
• Quiet Operation: This air handler is equipped with noise-reducing components, ensuring quiet operation, making it ideal for use in bedrooms, offices, and other noise-sensitive environments.
• Energy-Efficient Performance: Designed to be energy-efficient, the SLZ-AF15NL helps reduce overall energy consumption while providing optimal comfort. It offers both heating and cooling functions for year-round comfort.
• Improved Air Quality: The air handler is equipped with an advanced filtration system that captures dust, allergens, and other airborne particles, promoting cleaner, healthier air indoors.
• Flexible Drainage Options: The SLZ-AF15NL offers versatile drainage options for both horizontal and vertical configurations, making it easy to accommodate various installation needs.

Specifications

• Cooling Capacity: 15,000 BTU/h
• Heating Capacity: 15,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 29-5/8" x 10-1/8" x 28-1/4”
• Weight: 50.7 lbs
• Refrigerant: R410A
• Airflow: 635 CFM

Benefits

• Space-Saving Design: The compact design allows the SLZ-AF15NL to fit in small and narrow spaces where conventional air handlers may not be feasible. It's ideal for residential and light commercial applications.
• Quiet and Comfortable: Designed to operate quietly, the SLZ-AF15NL ensures comfort without disruption. Its quiet performance makes it ideal for installation in noise-sensitive areas like living rooms and bedrooms.
• Energy Savings: By optimizing energy consumption, the SLZ-AF15NL offers lower operating costs and helps reduce overall electricity bills while maintaining optimal performance.
• Cleaner Air: The air filtration system helps remove dust and allergens from the air, ensuring improved air quality and a healthier indoor environment for all occupants.

Applications

• Residential Applications: The SLZ-AF15NL is a perfect solution for homes, apartments, and condominiums. Its compact size and energy-efficient design make it ideal for spaces where installation space is limited.
• Light Commercial Applications: Ideal for small businesses, offices, and retail spaces, the SLZ-AF15NL provides reliable and efficient climate control while keeping energy consumption low.

Maintenance

• Low Maintenance Requirements: The SLZ-AF15NL is easy to maintain with regular filter cleaning and routine service. These simple maintenance tasks ensure the air handler operates efficiently over time.
• Durable and Long-Lasting: Built with high-quality materials, the SLZ-AF15NL is designed to last, providing long-term reliability and performance.

The SLZ-AF15NL air handler, when paired with the SUZ-AA15NL outdoor unit, is an excellent solution for maintaining year-round comfort in residential and light commercial spaces. Its efficient performance, space-saving design, and quiet operation make it a dependable choice for those seeking reliable climate control. The combination of energy efficiency, improved air quality, and flexible installation options ensures that the SLZ-AF15NL is a smart investment for maintaining a comfortable and healthy indoor environment.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.

Mitsubishi 30,000 BTU M-Series Multi Zone Mini Split Heat Pump Condenser – R454B | 230V

*Please Note* This product is currently estimated to ship sometime in January 2026

MXZ-4D30NL - Heat Pump Outdoor Unit

The MXZ-4D30NL is a high-performance outdoor heat pump unit designed for residential and light commercial applications. It offers efficient heating and cooling capabilities, ensuring year-round comfort. Below are the key features and specifications of this model:

Key Features:

• Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels as low as 52 dB(A) during cooling and 56 dB(A) during heating, minimizing noise disturbances.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
• Seacoast Protection: Rated for 2,000 hours of spraying time per ASTM B117 Standard, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum: 28,600 BTU/h
  • Rated: 28,600 BTU/h (Non-Ducted), 28,000 BTU/h (Mixed), 27,400 BTU/h (Ducted)
  • Minimum: 11,600 BTU/h (Non-Ducted), 11,300 BTU/h (Mixed), 11,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum: 36,000 BTU/h
  • Rated: 28,600 BTU/h (Non-Ducted), 28,000 BTU/h (Mixed), 27,600 BTU/h (Ducted)
  • Minimum: 13,600 BTU/h (Non-Ducted), 13,200 BTU/h (Mixed), 12,800 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Rated: 18,200 BTU/h (Non-Ducted), 18,000 BTU/h (Mixed), 17,800 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum: 19,800 BTU/h
• Efficiency Ratings:
  • SEER2: 21 (Non-Ducted), 18.55 (Mixed), 16.10 (Ducted)
  • EER2: 13 (Non-Ducted), 11.30 (Mixed), 9.60 (Ducted)
  • HSPF2 (IV): 10 (Non-Ducted), 9.40 (Mixed), 8.80 (Ducted)
  • COP at 47°F: 3.90 (Non-Ducted), 3.78 (Mixed), 3.68 (Ducted)
  • COP at 17°F (Maximum Capacity): 2.06 (Non-Ducted), 2.06 (Mixed), 2.06 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.06 (Non-Ducted), 2.02 (Mixed), 2 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 28.7 A
  • Maximum Overcurrent Protection (MOCP): 48 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)
• Unit Dimensions:
  • Width: 37-13/32 inches
  • Depth: 13 inches
  • Height: 31-11/32 inches
  • Weight: 137 lbs (62 kg)

The MXZ-4D30NL is ideal for applications requiring efficient heating and cooling performance. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

Cielo Breez Max Mini Split Thermostat with WiFi

Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.

Features:

• Energy Savings
• WiFi Connectivity
• Weekly Schedule
• Geofencing
• Temperature Range Lock
• Real-Time Notifications
• HVAC Zoning

Weekly Schedule lets you set on and off periods throughout the week based on your needs.

Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.

Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.

Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.

HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.

The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.

Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 1/2" x 6' Electrical Whip – SKU: 84136
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

• Insulated
• Flared Line Ends
• Heavy Duty Refrigerant Lines

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
