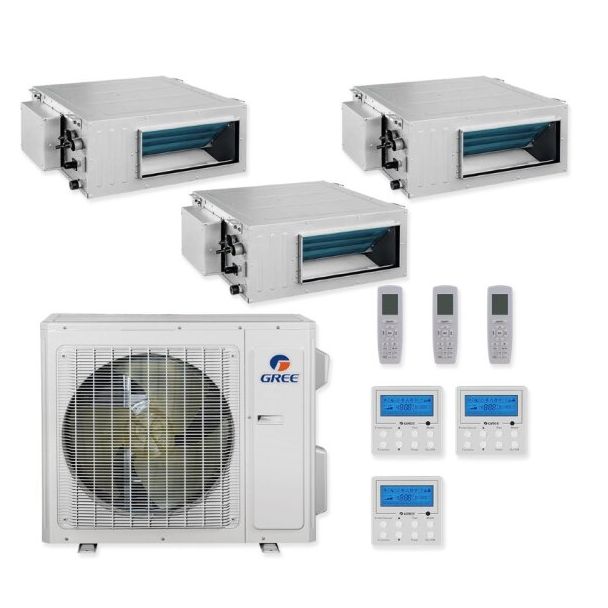

36,000 BTU 14 SEER Tri Zone Concealed Duct Gree Heat Pump System 12+12+24

Name: 36,000 BTU 14 SEER Tri Zone Concealed Duct Gree Heat Pump System 12+12+24
Brand: Gree
SKU: MULTIU36HP230V1DO / 2-DUCT12HP230V1BD / DUCT24HP230V1BD
Price: 1045 USD
Availability: InStock

Gree 36,000 BTU 14 SEER Tri Zone Concealed Duct Heat Pump System 12+12+24 - MULTIU36HP230V1DO / 2-DUCT12HP230V1BD / DUCT24HP230V1BD

Required Fields *

Gree

Out of stock

Model

MULTIU36HP230V1DO / 2-DUCT12HP230V1BD / DUCT24HP230V1BD

53625

Be the first to review this product

Call for Availability

Was $1,672.00

Your Low Price $1,045.00

Free Shipping

Description

The Gree Tri Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 14 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

24,000 BTU Concealed Duct Gree Mini Split High Static Multi Zone Air Handler

The Gree High Static Slim Duct indoor unit offers flexibility. It is designed to be installed above suspended ceilings, or in open closet spaces. This unit delivers conditioned air via ducting and ceiling or wall grilles. It has a high static pressure capability and is only 13-5/8" High.

The Gree High Static Slim Duct is AHRI Certified and comes with a 5-year limited warranty.

Features:

Heating, Cooling, Dry, and Fan modes
Fahrenheit °F / Celsius °C
Handheld IR remote control and XK-19 wall mounted control included

Product Specifications

More Information
36,000 BTU 23 SEER Gree Mini Split Multi+ Ultra 2-4 Zone Heat Pump Condenser - R410A
SKU	MULTIU36HP230V1DO
Refrigerant Charge	Pre-charged for: 131'
Weight (in lbs)	298.000000
AHRI Certificate Number	204288780 & 204630894 & 204664397
Brand/Manufacturer	Gree
Product Features	Low Ambient Heating
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 82'
Additional Information	Maximum System Piping: 246'
HSPF	10
Cooling BTU	36,000
Heating BTU	36,000
Decibel Level (dBA)	Outdoor Unit: 62 dB(A)
Energy Star	No
Refrigerant	R410A
SEER1 (Efficiency)	23-24
EER	9
Compressor Type	Rotary
Liquid Line	liquid_line=1/4" (5)
Suction Line	suction_line=3/8" (5)
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	40 amps
Min. Breaker Size	23 amps
Tonnage	3 Ton
BTU/Tonnage	36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating	-31F - 75F
Min/Max Outdoor Temp for Cooling	0F - 115F
Height	43.5"
Width	40"
Depth	17.3"
Warranty	5 year Limited Parts Warranty
Resources	Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Concealed Duct Gree Mini Split High Static Multi Zone Air Handler
SKU	DUCT12HP230V1BD
Weight (in lbs)	84.000000
Brand/Manufacturer	Gree
Product Features	Low Ambient Heating
Additional Information	Drain: 1"
Cooling BTU	12,000
Heating BTU	13,000
Maximum CFM	211-353 CFM
Decibel Level (dBA)	Indoor Unit: 26-42 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=1/4"
Suction Line	suction_line=1/2"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone
Height	13.6"
Width	32.7"
Depth	29.7"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
24,000 BTU Concealed Duct Gree Mini Split High Static Multi Zone Air Handler
SKU	DUCT24HP230V1BD
Weight (in lbs)	107.000000
Brand/Manufacturer	Gree
Product Features	Low Ambient Heating
Additional Information	Drain: 1"
Cooling BTU	24,000
Heating BTU	27,000
Maximum CFM	406-735 CFM
Decibel Level (dBA)	Indoor Unit: 28-42 dB(A)
Refrigerant	R410A
Liquid Line	liquid_line=3/8"
Suction Line	suction_line=5/8"
Electrical	208/230V 1 Phase 60Hz
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Concealed Duct
Zone Compatibility	Multi Zone
Height	13.6"
Width	44.5"
Depth	29.7"
Warranty	5 year Limited Parts Warranty
Resources	Brochure Submittal Installation Manual Operation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Questions and Answers

Customer Questions

Why Choose Gree?

For over 20 years, Gree has been manufacturing HVAC products for many of the world's most respected brands. They are the trusted manufacture when it comes to high quality products that push the limits of features and designs. Using their extensive experience, Gree is now creating its own brand of products to provide consumers with their proven quality and reliability.
