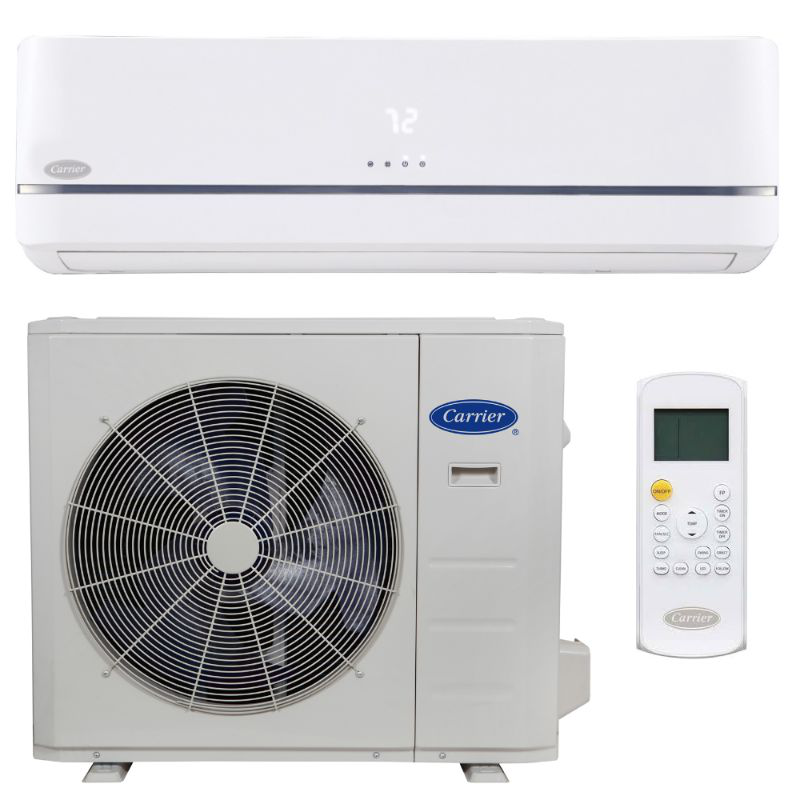

36,000 BTU 16 SEER Wall Mounted Carrier Mini-Split Performance Series Single Zone Heat Pump

By

Carrier

Model

40MAHBQ36XA3 / 38MARBQ36AA3

ID

9770

Availability: Call for Availability

Authorized Carrier Dealer

AHRI Certified

AHRI Number:8738640

Suggested Retail $6,228.63 Your Low Price Special Price $4,982.90

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

OVERVIEW

The 40MAHBQ36XA3 / 38MARBQ36AA3 Performance series single zone mini split is a heat pump solution with a wall mounted air handler for almost any space. With its wide heating and cooling range and quiet operation, the 40MAHBQ36XA3 / 38MARBQ36AA3 is a reasonably priced solution for almost any application.

QUICK FACTS

  • Can generally heat and cool up to a medium-sized room in mild climates
  • 36,000 BTU, 16 SEER heat pump wall mounted mini split with remote control
  • Cooling from -13°F - 122°F outside temperatures
  • Integrated base pan heater allows heating from -22°F - 86°F outside temperatures
  • Built-in safety monitoring, including refrigerant leakage detection
  • Improved serviceability
  • Quiet and efficient operation
36,000 BTU, 16 SEER

With an output of 36,000 BTU, the 40MAQB36B-3 / 38MAQB36R-3 has the capability to heat and cool up to a medium-sized room in average climates. With an efficiency rating of 16 SEER, bringing comfort to that space is possible while maintaining a high efficiency over many other solutions, allowing you to keep more of your hard-earned money over time by not spending it on your electric bill.

Warranty

With an installation that follows your state and local installation codes and registration through the manufacturer within 90 days of installation, the 40MAQB36B-3 / 38MAQB36R-3 is backed by Carrier's 10 year parts and compressor warranty for the original registrant.

Quality of Comfort

With its many settings selectable from the unit's included remote, the 40MAQB36B-3 / 38MAQB36R-3 can match almost any comfort-based need, from its Follow Me setting that senses the temperature at the remote instead of at the unit to your standard, unchanged output setting. These settings along with others and its quiet operation allow the 40MAQB36B-3 / 38MAQB36R-3 to bring a high quality of comfort to almost any space.

Reliable Heating and Cooling

For a much more reliable operation, safety monitors all over the 40MAQB36B-3 / 38MAQB36R-3 are constantly taking readings to prevent any possible problems that may arise from general wear-and-tear on the unit. Moreover, the unit has an integrated base pan heater, allowing it to heat all the way down to -22°F.

Product Specifications

More Information
36,000 BTU 16 SEER Wall Mounted Carrier Mini-Split Performance Series Single Zone Heat Pump
SKU40MAHBQ36XA3 / 38MARBQ36AA3
Refrigerant ChargePre-charged for: 26'
Weight (in lbs)100.000000
AHRI Certificate Number8738640
Brand/ManufacturerCarrier
ControllerWireless Included
Additional InformationHeat Pump
Additional InformationMinimum Line Set Length: 10'
Additional InformationMaximum Line Set Length: 164'
Additional InformationDrain: 5/8"
HSPF8.5
Cooling BTU36,000 BTU
Heating BTU36,000 BTU
Maximum CFM520-870 CFM
Energy StarNo
RefrigerantR410A
CapacityDehumidification Rate: 1.4625 gal/hr
SEER1 (Efficiency)16-17
EER8.6
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size35 Amps
Min. Breaker Size25 Amps
Amperage Requirement35A
Tonnage3 Ton
System Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini-Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-13°F-86°F
Min/Max Outdoor Temp for Cooling-13°F-122°F
Zone CompatibilitySingle Zone
HeightIndoor Unit: 13.39" | Outdoor Unit: 31.89"
WidthIndoor Unit: 46.69" | Outdoor Unit: 37.24"
DepthIndoor Unit: 10.16" | Outdoor Unit: 16.14"
Warranty10 years with online registration, 5 years without
