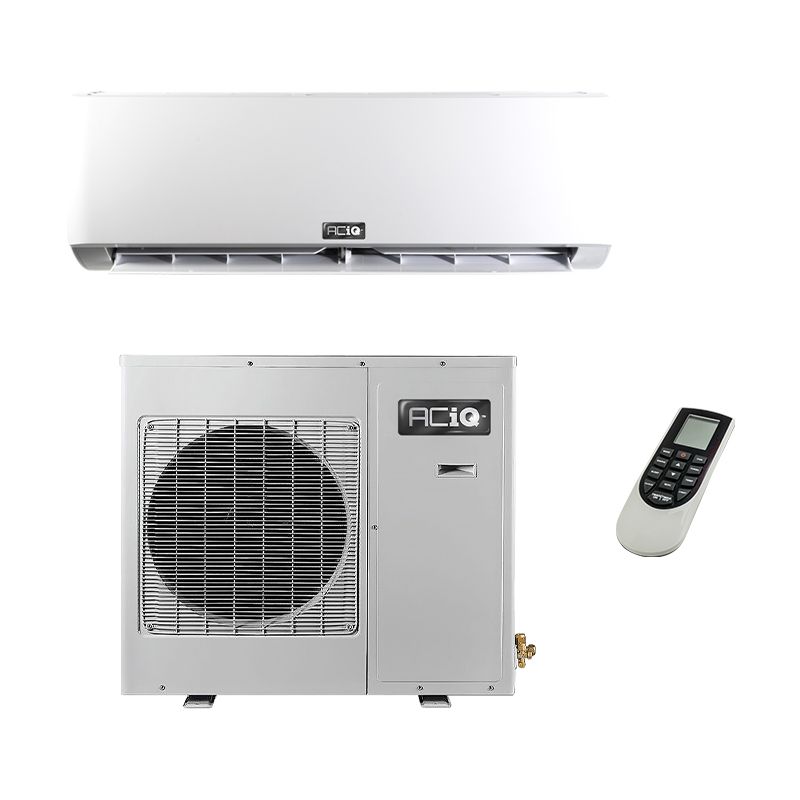

36,000 BTU 18 SEER ACiQ Single Zone Wall Mount Mini Split System w/ WiFi-R410A

SAVE -$219.90
36,000 BTU 18 SEER ACiQ Single Zone Wall Mount Mini Split System w/ WiFi-R410A

Required Fields *

By

ACiQ

Out of stock

Model

SC-36ZGLD-HP230 / SC-36WGLD-HP230

ID

107224

Enhanced Comfort

The Stealth Emerald Series Single Zone mini split systems provide precise temperature control, near silent operation, and maximum efficiency at a competitive price. Stealth Emerald systems complement your space, with attention to detail in design, and state-of-the-art manufacturing. Get a system that blends with your environment to create seamless comfort. Get Stealth.

Installation Kit for Condensers

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

  • 3/4" x 6' Electrical Whip – SKU: 84138
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

More Information
36,000 BTU ACiQ Wall Mount Air Handler - R410A
FeatureSpec
SKUSC-36WGLD-HP230
Weight (in lbs)42
Brand/ManufacturerACiQ
UPC00850048551046
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 98'
Additional InformationMinimum Line Set Length: 10'
Additional InformationDrain: 5/8"
Cooling BTU33,600
Heating BTU34,600
Maximum CFM412-736 CFM
Decibel Level (dBA)Indoor Unit: 37-54 dB(A) | Outdoor Unit: 65 dB(A)
Electric HeatHeat Pump
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)23-24
EER8.2
Compressor TypeRotary
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size40 Amps
Min. Breaker Size24 Amps
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-31F - 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Zone CompatibilitySingle Zone
HeightIndoor Unit: 12.8" | Outdoor Unit: 31.1"
WidthIndoor Unit: 53.1" | Outdoor Unit: 38.6"
DepthIndoor Unit: 10" | Outdoor Unit: 14.5"
Additional InfoIndoor Unit Weight: 53.1 lbs | Outdoor Unit Weight: 172 lbs
Warranty12 year compressor, 7 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
36,000 BTU ACiQ Single Zone Condenser - R410A
FeatureSpec
SKUSC-36ZGLD-HP230
Weight (in lbs)172
AHRI Certificate Number208674278
Brand/ManufacturerACiQ
UPC00850048551190
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 98'
Additional InformationMinimum Line Set Length: 10'
Additional InformationDrain: 5/8"
Cooling BTU33,600
Heating BTU34,600
Maximum CFM412-736 CFM
Decibel Level (dBA)65 dB(A)
Electric HeatHeat Pump
Energy StarNo
RefrigerantR410A
HSPF9
SEER1 (Efficiency)18-20
EER8.2
Compressor TypeRotary
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size40 Amps
Min. Breaker Size24 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-22F - 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Zone CompatibilitySingle Zone
Height31.1"
Width38.6"
Depth14.5"
Warranty12 year compressor, 7 year parts with online registration
