Daikin ductless mini-split air handlers feature individual temperature control per room, motion sensors for automatic economy mode operation, and stylish, modern designs that fit in with any home decor. Daikin's ductless systems deliver continuous circulation and filtration quietly, with none of the noise and inconsistent airflow of older furnace and AC systems, all while doing so with greater efficiency and reduced maintenance costs and worries.
Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.
The Daikin Multi Zone MXL Series is the perfect fit for multi-room applications. You can connect two, three, or four indoor units to a single outdoor unit. The ability to choose from wall mount, duct units, floor mount, or ceiling cassette units offers you over 1000 combinations for your installation needs. The system also offers up to 21.7 SEER for home comfort and energy savings. The MXL Series also provides enhanced capacity performance in extreme heat and cold ambient conditions. With long-life filters and quiet operation, the MXL Series is a reliable and efficient solution for your home.
With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. The MXL Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units, allowing you to blend them in almost invisibly with your home's existing furnishings.
FeaturesThe Daikin Floor Mounted Mini Split Air Handler is a component of a Daikin mini-split system designed to keep your room comfortable while bringing highly efficient cooling and heating solutions.
The Daikin Floor Mounted Air Handler provides high efficiency and comfort. With a variety of modes and features, you can be sure that your home will stay comfortable while consuming less energy. The Powerful Operation mode will give your system a boost of cooling of heating power, and the unit also features an ECO+ Intelligent feature which balances energy consumption and your comfort needs. It mounts onto the floor and features adjustable air direction and flow rate so that the air doesn't blow onto people in the room.
This product needs a compatible outdoor unit to operate effectively. The Daikin FVXS09WVJU9 is an affordable, cost saving unit which provides energy efficiency and comfort control.

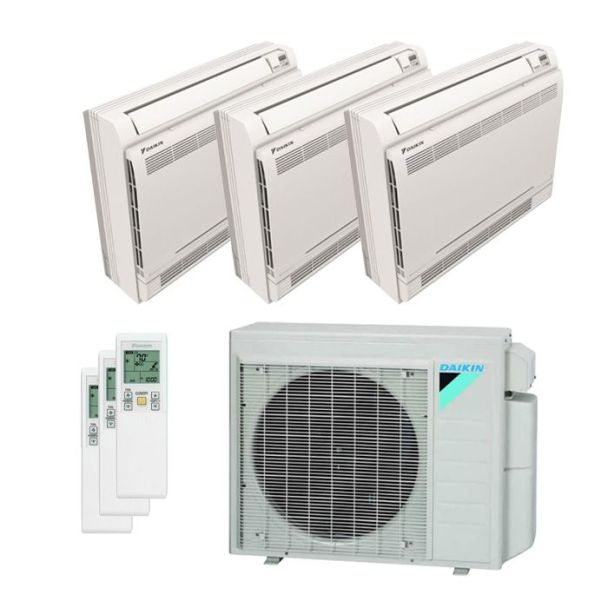

36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser | |
---|---|
SKU | 4MXL36WVJU9 |
Refrigerant Charge | precharged for: 131' |
Weight (in lbs) | 214.000000 |
AHRI Certificate Number | 202522139, 202521824, 202522140 |
Brand/Manufacturer | Daikin |
Additional Information | Heat Pump |
Additional Information | Precharged for: 131' |
Additional Information | Maximum Line Set Length: 98' |
Additional Information | Maximum System Line Set Length: 230' |
Additional Information | Number of Zones: 2-4 |
HSPF2 | 15.9 |
Cooling BTU | 36000 |
Heating BTU | 36000 |
Decibel Level (dBA) | 53-55 |
Energy Star | Yes |
Refrigerant | R410A |
SEER2 (Efficiency) | 20 |
EER | 11.7 |
Compressor Type | Swing |
Liquid Line | 1/4" (4) |
Suction Line | 3/8" (1), 1/2" (2), 5/8" (1) |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 27 Amps |
Min. Breaker Size | 27 Amps |
Tonnage | 3 Ton |
BTU/Tonnage | 36,000 BTU/3 Ton |
Min/Max Outdoor Temp for Heating | -13°F - 60°F |
Min/Max Outdoor Temp for Cooling | 14°F - 115°F |
Zone Compatibility | Multi Zone |
Height | 34-1/4" |
Width | 43-5/16" |
Depth | 18-1/8" |
Warranty | 12 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Daikin 9,000 BTU Floor Mounted Mini Split Aurora Air Handler- R410A | |
SKU | FVXS09WVJU9 |
Refrigerant Charge | precharged for: 33' |
Weight (in lbs) | 31.000000 |
Brand/Manufacturer | Daikin |
HSPF | 9.7 |
Cooling BTU | 9,000 |
Heating BTU | 10,100 |
Maximum CFM | 145-311 CFM |
Decibel Level (dBA) | 23-38 decibel |
Energy Star | Yes |
Refrigerant | R410A |
Electrical | 208/230V 1 Phase 60 Hz |
BTU/Tonnage | 9,000 BTU/0.75 Ton |
Mini Split Type | Floor Mounted |
Zone Compatibility | Single Zone |
Height | 23-5/8" |
Width | 27-9/16" |
Depth | 8-1/4" |
Warranty | 12 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
