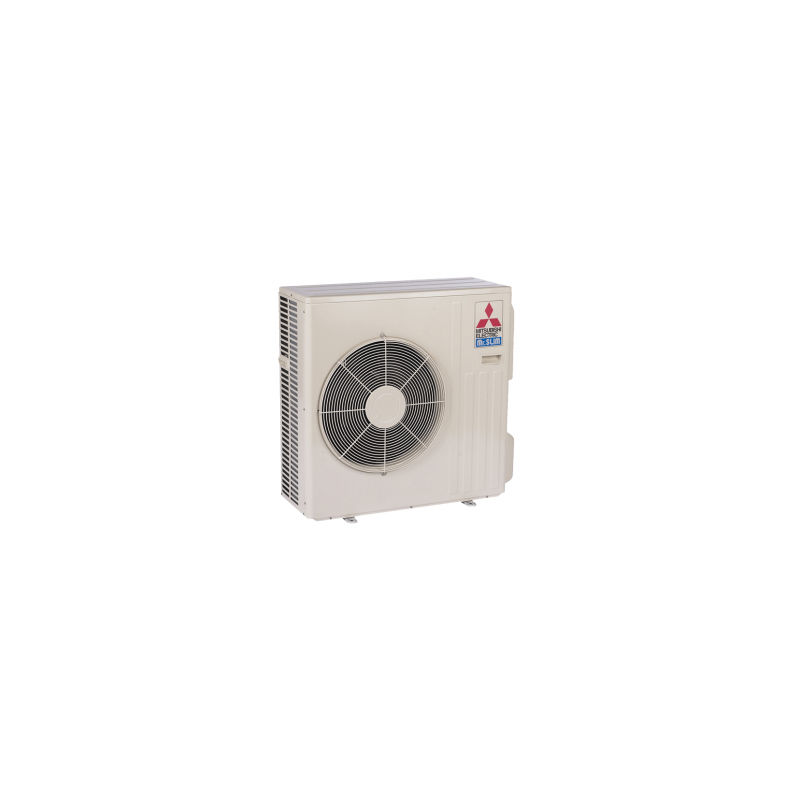

Mitsubishi 36,000 BTU R410A GS/GL-Series Single Zone Mini Split Cooling Only Condenser - 230V

Mitsubishi 36,000 BTU R410A GS/GL-Series Single Zone Mini Split Cooling Only Condenser - 230V
By

Mitsubishi

Out of stock
Model

MUY-GS36NA

ID

201487

Mitsubishi 36,000 BTU R410A GS/GL-Series Single Zone Mini Split Cooling Only Condenser - 230V

Designed for efficient cooling in large single-zone spaces, this Mitsubishi GS-Series 36,000 BTU condenser uses R410A to cover rooms up to 1,200 sq ft.

Key Features

  • 36,000 BTU single-zone cooling-only mini split condenser.
  • Compatible with R410A refrigerant systems.
  • Designed for use with Mitsubishi GS/GL-Series indoor air handlers.
  • 230V electrical configuration.
  • Quiet operation suitable for homes and offices.
  • Energy-efficient inverter-driven cooling performance.
  • Durable outdoor construction for long-lasting reliability.

Feature Highlights

Reliable Single-Zone Cooling

Provides consistent cooling for a single room or zone, ensuring comfortable indoor temperatures during hot weather.

Energy-Efficient Operation

The inverter-driven compressor adjusts output based on cooling demand, reducing energy consumption while maintaining stable indoor comfort.

Quiet and Durable Design

Engineered for quiet operation, this outdoor condenser is built to withstand various weather conditions while providing dependable cooling performance.

What’s Included

  • 1 x Mitsubishi 36,000 BTU GS/GL-Series Single Zone Mini Split Cooling Only Outdoor Condenser
  • Installation Manual

Recommended Accessories

  • Compatible Mitsubishi GS/GL-Series Single Zone Indoor Air Handler
  • R410A Line Set
  • Condenser Pad or Wall Mount Bracket
  • Line Set Covers for exterior protection
  • Electrical Disconnect Box

Warranty

Mitsubishi provides a manufacturer warranty for the 36,000 BTU GS/GL-Series single zone cooling-only condenser when installed with compatible equipment and according to manufacturer guidelines.

More Information
Mitsubishi 36,000 BTU R410A GS/GL-Series Single Zone Mini Split Cooling Only Condenser - 230V
FeatureSpec
SKUMUY-GS36NA
Weight (in lbs)121
Brand/ManufacturerMitsubishi
Additional InformationMaximum Line Set Length: 100 Feet
Cooling BTU30,600 BTU
Decibel Level (dBA)56 dB
Energy StarYes
RefrigerantR410A
CapacityDehumidification Rate: 0.23 gal/hr
SEER2 (Efficiency)18.5
EER8.8
Liquid Line1/4 Inch
Suction Line5/8 Inch
Electrical208/230v 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size20 Amps
Min. Breaker Size19 Amps
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-4 F - 14 F
Zone CompatibilitySingle Zone
Operating ModeCooling
Height39 Inches
Width38 3/4 Inches
Depth16 3/4 Inches
Warranty10 Years with Online Registration
