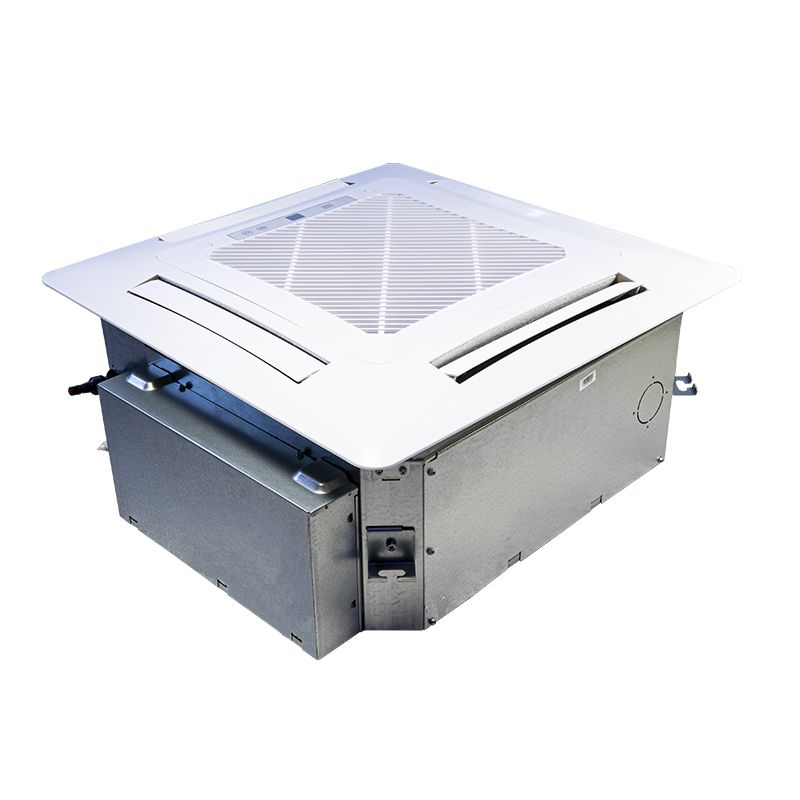

Stealth Designer Series Ceiling Cassettes flush mount into your existing ceiling, allowing you to maintain the appearance of your walls. Ceiling Cassettes supply conditioned air in all four directions, resulting in quick, even cooling and heating. Every Ceiling Cassette has a factory installed condensate drain pump to move water to a safe discharge location. A wall mount thermostat and remote control are included.
IMPORTANT:This ceiling cassette requires separate high voltage power, wired directly to the breaker panel in your home.
Please note: Product does not include grille cover – please order from Accessories.
| 36,000 BTU Stealth Designer Ceiling Cassette Single Zone Air Handler | |
|---|---|
| SKU | SC-36CC-UM |
| Weight (in lbs) | 70.400000 |
| Brand/Manufacturer | Stealth |
| HSPF | 9 |
| Cooling BTU | 34,000 |
| Heating BTU | 41,000 |
| Maximum CFM | 1095 CFM |
| Decibel Level (dBA) | 51 dB(A) |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 16-17 |
| EER | 10.4 |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 45 |
| Min. Breaker Size | 27.7 |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Ceiling Cassette |
| Min/Max Outdoor Temp for Heating | 0F - 75F |
| Min/Max Outdoor Temp for Cooling | 0F - 118F |
| Zone Compatibility | Single Zone |
| Height | 09.1" |
| Width | 29.5" |
| Depth | 43.9" |
| Warranty | 14 year compressor, 5 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
