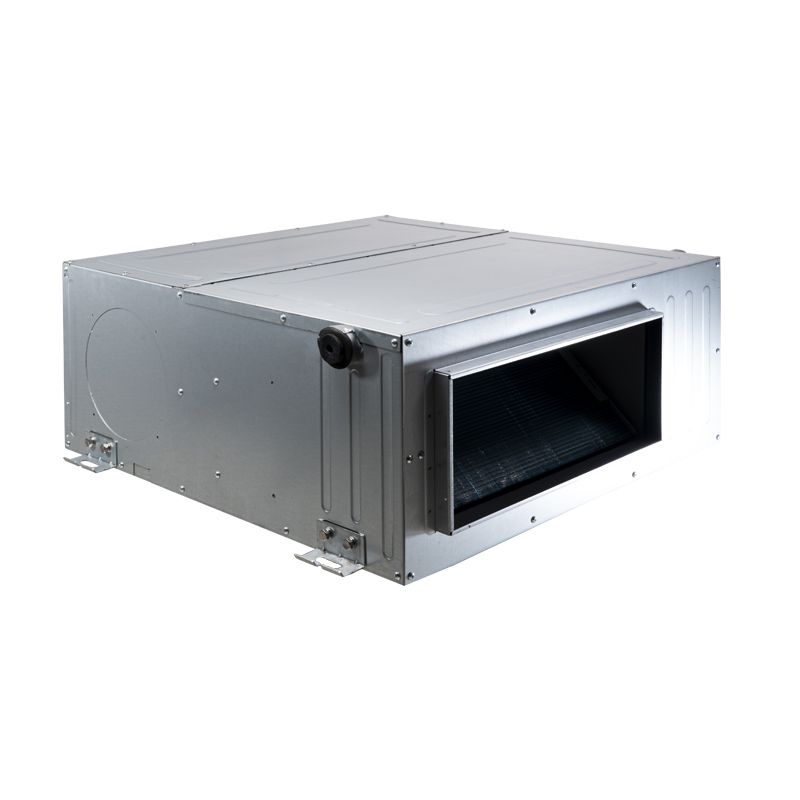

36,000 BTU Stealth Comfort Designer Concealed Duct Single Zone Air Handler

SAVE $2,238.17
36,000 BTU Stealth Comfort Designer Concealed Duct Single Zone Air Handler
36,000 BTU Stealth Comfort Designer Concealed Duct Single Zone Air Handler
By

Stealth

Out of stock
Model

SC-36CD-UM

ID

107026

Stealth Designer Series Concealed Ducted units are flexible air handlers that can be concealed above ceilings, beneath floors, above closets or in hallways.  Supply air can be delivered directly into rooms through a grate, or through a field-fabricated duct board plenum and flex ducting.  Concealed duct air handlers all come equipped with a factory installed condensate drain pump to move water to a safe discharge location.  A wall-mounted thermostat is included. 

Please note: This air handler must be connected to an outdoor condenser in order to function.

More Information
36,000 BTU Stealth Comfort Designer Concealed Duct Single Zone Air Handler
FeatureSpec
SKUSC-36CD-UM
Weight (in lbs)101.2
Brand/ManufacturerStealth
UPC689526902670
Cooling BTU34,000
Heating BTU41,000
Maximum CFM1175 CFM
Decibel Level (dBA)52 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
HSPF9
SEER1 (Efficiency)16-17
EER10.4
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size45
Min. Breaker Size27.7
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeConcealed Duct
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height09.5"
Width32.8"
Depth30.8"
Warranty14 year compressor, 5 year parts with online registration
