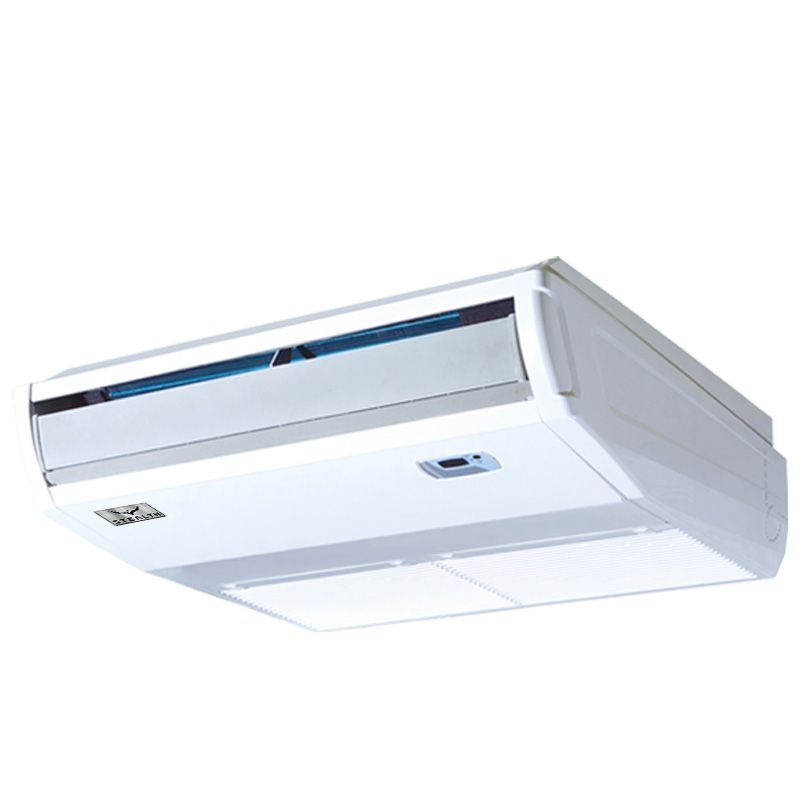

36,000 BTU Stealth Comfort Designer Floor or Ceiling Mounted Single Zone Air Handler

SAVE $131.56
36,000 BTU Stealth Comfort Designer Floor or Ceiling Mounted Single Zone Air Handler
36,000 BTU Stealth Comfort Designer Floor or Ceiling Mounted Single Zone Air Handler
By

Stealth

Out of stock
Model

SC-36FM-UM

ID

107011

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement.  The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room.  Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water. 

Please note: This air handler must be connected to an outdoor condenser in order to function. 

More Information
36,000 BTU Stealth Comfort Designer Floor or Ceiling Mounted Single Zone Air Handler
FeatureSpec
SKUSC-36FM-UM
Weight (in lbs)105.6
Brand/ManufacturerStealth
UPC689526902601
Cooling BTU34,000
Heating BTU41,000
Maximum CFM1115 CFM
Decibel Level (dBA)53 dB(A)
Electric HeatHeat Pump
Energy StarNo
RefrigerantR410A
HSPF9
SEER1 (Efficiency)16-17
EER10.4
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size45
Min. Breaker Size29
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeFloor Mounted
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height27.5"
Width55.9"
Depth09.6"
Warranty14 year compressor, 5 year parts with online registration
