Mitsubishi 36,000 BTU GX-Series Single Zone Wall Mounted Mini Split Air Handler R454B | 230V

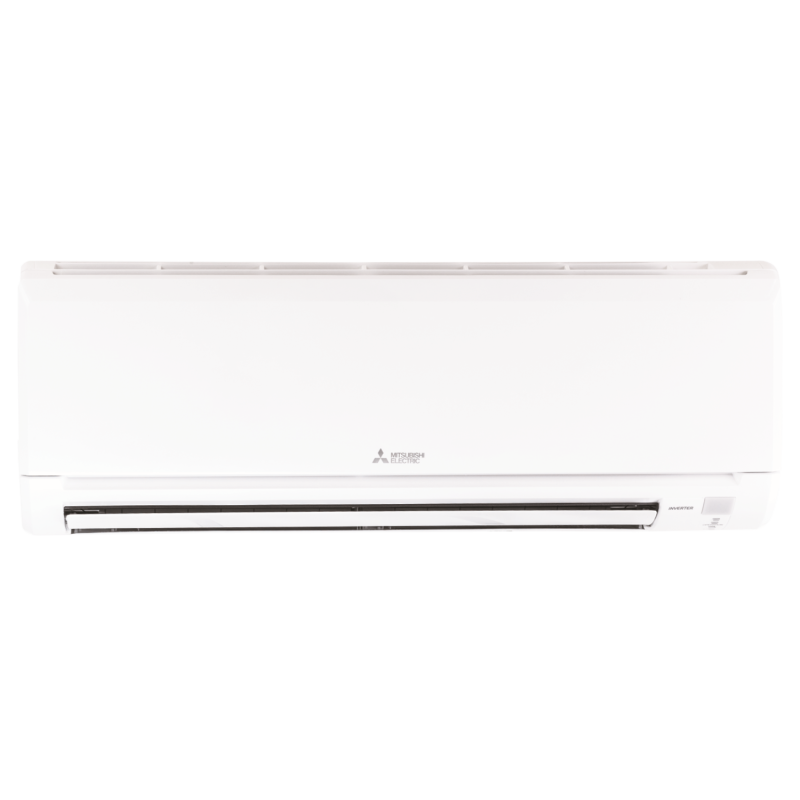

Mitsubishi Electric MSY-GX36NL Wall-Mounted Air Handler

The Mitsubishi Electric MSY-GX36NL is a high-performance, wall-mounted air handler designed to provide efficient and reliable cooling for residential and commercial applications. It incorporates advanced features that enhance comfort, air quality, and energy efficiency, making it an ideal choice for modern climate control solutions.

Key Features

• Dual Barrier Coating: Prevents the accumulation of dust, dirt, and oil on internal components, ensuring long-term performance and reduced maintenance requirements.
• Econo Cool Mode: Adjusts airflow distribution and temperature settings to optimize energy consumption while maintaining comfort.
• Multi-Speed Fan: Offers multiple fan speed settings, including Low, Medium, High, Powerful, and Auto, for customized airflow control.
• Quiet Operation: Designed to operate with minimal noise, making it ideal for bedrooms, offices, and other noise-sensitive environments.
• Smart Dry Mode: Enhances dehumidification while maintaining optimal cooling, reducing excess moisture in the air.
• Powerful Mode: Provides a temporary boost in cooling capacity for rapid temperature adjustments.
• Wi-Fi Compatibility: Allows seamless integration with smart home systems and mobile applications for remote control.
• Advanced Filtration: Includes a Nano Platinum Filter that helps reduce airborne contaminants and improve indoor air quality.
• Compact and Sleek Design: The slim, modern design ensures easy installation and blends well with various interior spaces.

Performance Specifications

• Cooling Capacity: 33,800 BTU/h (Maximum), 10,300 BTU/h (Minimum)
• Moisture Removal: 10 pints per hour, enhancing humidity control.
• Airflow Rates: 324, 392, 454, 636, and 765 CFM based on fan speed selection.
• Sound Pressure Levels: 30 dB(A) (Low) to 53 dB(A) (High), ensuring quiet operation.
• Energy Efficiency Ratings: SEER2: 18.5, EER2: 8.4, meeting ENERGY STAR® certification requirements.

Electrical and Installation Details

• Power Supply: 208/230V AC, single-phase, 60Hz.
• Recommended Breaker Size: 25A.
• Indoor Unit Dimensions (W x D x H): 43-5/16" x 10-1/8" x 12-13/16" (1,100 mm x 257 mm x 325 mm).
• Drain Pipe Size: 5/8 inch (15.88 mm) outer diameter.
• Installation Flexibility: Designed for easy mounting and compatibility with various room layouts.

The Mitsubishi Electric MSY-GX36NL air handler combines energy-efficient operation with innovative technology to deliver superior cooling and comfort. Its advanced features, quiet performance, and modern design make it an excellent choice for maintaining a comfortable indoor environment.
