Mitsubishi 36,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V

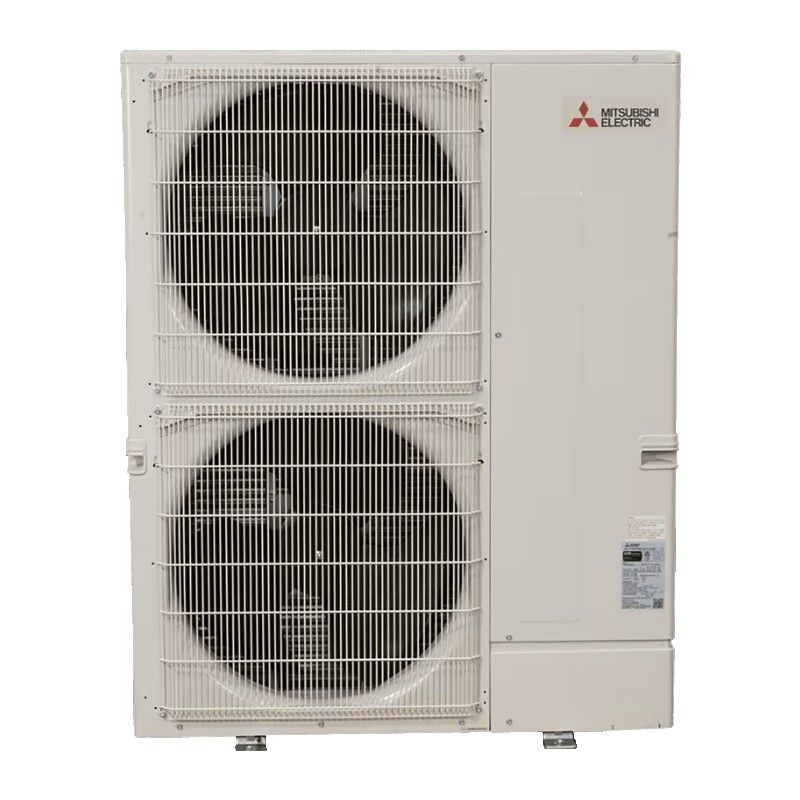

PUZ-AK36NL - Outdoor Unit for Heat Pump System

The PUZ-AK36NL is a high-efficiency outdoor unit designed to pair with Mitsubishi Electric's PCA-AK36NL ceiling-suspended indoor unit, delivering reliable heating and cooling for commercial applications. Below are the key features and specifications of this outdoor unit:

Key Features:

• INVERTER-Driven Compressor: Utilizes an INVERTER-driven compressor that adjusts capacity to maintain the desired temperature efficiently, enhancing energy savings.
• Low Ambient Cooling: Supports cooling operation down to 0°F, providing 100% capacity, making it suitable for various commercial environments.
• Continuous Operation: Capable of 24-hour continuous operation in cooling mode, ensuring consistent temperature control during extended periods.
• Fast Restart: Quickly resumes operation after a power failure, minimizing downtime and maintaining indoor comfort.
• High Pressure Protection: Equipped with safeguards to protect the system from high-pressure anomalies, ensuring safe and reliable operation.
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Seacoast Protection: Features a robust anti-corrosion system with coated external panels and Blue Fin treatment for the heat exchanger coil, ensuring longevity in coastal environments.
• Pre-Charged Refrigerant: Comes pre-charged with refrigerant suitable for piping lengths up to 225 feet, simplifying installation and reducing setup time.

Specifications:

• Cooling at 95°F:
  • Maximum Capacity: 37,000 BTU/h
  • Rated Capacity: 36,000 BTU/h
  • Minimum Capacity: 13,500 BTU/h
  • Maximum Power Input: 3,040 W
  • Rated Power Input: 2,930 W
• Heating at 47°F:
  • Maximum Capacity: 40,000 BTU/h
  • Rated Capacity: 40,000 BTU/h
  • Minimum Capacity: 13,200 BTU/h
  • Maximum Power Input: 2,790 W
  • Rated Power Input: 2,791 W
• Heating at 17°F:
  • Rated Capacity: 23,200 BTU/h
  • Maximum Power Input: 2,480 W
• Heating at 5°F:
  • Maximum Capacity: 20,000 BTU/h
  • Maximum Power Input: 2,140 W
• Heating at -4°F:
  • Maximum Capacity: 17,600 BTU/h
• SEER2 Rating: 20.6, indicating high energy efficiency.
• EER21 Rating: 12.2, reflecting efficient energy use during cooling.
• HSPF2 Rating: 9.1, demonstrating effective heating performance.
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Indoor-Outdoor Voltage (S2-S3): 12-24 V DC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size (Outdoor): 35 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 41 x 14 x 53 inches (1,041 x 355 x 1,346 mm)
• Outdoor Unit Weight: 251 lbs (114 kg)

The PUZ-AK36NL outdoor unit, when paired with the PCA-AK36NL indoor unit, offers a comprehensive heating and cooling solution suitable for various commercial settings. For detailed installation guidelines and comprehensive information, please refer to the official Mitsubishi Electric documentation.
