Today's Hours 8am - 11pm estMRCOOL 36,000 BTU DIY 5th Gen 23 SEER2 3 Zone Ceiling Cassette Mini Split Heat Pump System R454B | 230V 18 + 18 + 18
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI5-36HP / DIYCASSETTE18HP-230-3
ID
207475
Was $7,549.30
Your Low Price $6,863.00
Product Features
- Sized At 36,000 BTU For 1500 Sq Ft
- Designed For Spaces Up To 1500 Sq Ft
- Energy-Efficient Comfort With 23 SEER2
- Adjust Temperature From Anywhere (WiFi)
- EZ-Connect Line Set Simplifies Installation
- High-Ambient Cooling Up To 122°F
High-efficiency multi-zone ceiling cassette system designed for discreet installation, energy savings, and personalized comfort across three separate rooms.
Enjoy year-round comfort with the MRCOOL DIY 5th Generation Multi-Zone Series Ceiling Cassette Mini Split. This 36,000 BTU multi-zone system pairs a high-capacity outdoor condenser with three 18,000 BTU ceiling cassette indoor air handlers, each designed to condition up to approximately 1,000 sq. ft. Perfect for multi-room residential layouts where wall space is at a premium, the flush-mount ceiling design delivers discreet climate control, independent room temperatures, and quiet, energy-efficient performance.
Why Customers Choose the MRCOOL 3 Zone
- Easy DIY Installation — Install it yourself with MRCOOL's Quick Connect technology. Pre-charged line sets and simple connections eliminate the need for specialized HVAC tools, helping you save both time and money.
- Discreet Ceiling-Mount Design — Ceiling cassette units mount flush into the ceiling, leaving walls unobstructed and blending seamlessly into your room's interior design while distributing air evenly in multiple directions.
- Independent Multi-Zone Comfort — The 36,000 BTU outdoor condenser works with three 18,000 BTU ceiling cassette indoor air handlers, allowing each room to maintain its own temperature setting. Each indoor unit is designed for spaces up to approximately 1,000 sq. ft., providing customized comfort where it's needed most.
- Energy-Efficient Comfort — Inverter technology automatically adjusts system performance to maintain your desired temperature while using energy efficiently and helping reduce utility costs.
- Quiet Everyday Operation — Advanced inverter technology and low-noise indoor units provide reliable heating and cooling with minimal sound, making this system ideal for bedrooms, offices, living areas, and other spaces.
Control Your Comfort from Anywhere
Built-in Wi-Fi lets you control your mini split from virtually anywhere using the MRCOOL Smart HVAC app on your compatible smartphone or tablet. Adjust the temperature, switch operating modes, create schedules, and manage your comfort whether you're at home or away.
Reliable Heating During Cooler Weather
Designed for year-round comfort, this heat pump provides dependable heating during cooler weather and is capable of operating in heating mode at outdoor temperatures as low as -13°F.
What’s Included
- MRCOOL DIY 5th Generation 36,000 BTU Ductless Mini Split Outdoor Condenser (DIY-MULTI5-36HP)
- Three (3) MRCOOL DIY 5th Generation 18,000 BTU Ductless Mini Split Ceiling Cassette Indoor Air Handlers (DIYCASSETTE18HP-230-3)
- Quick Connect Line Sets and Installation Components
- Drain Hose
- Air Filters
- Wireless Remote Controls
- Owner's Manual, Guides, and Other Documents
Recommended Accessories
- 30" Wall Mount Bracket for Mini Split Systems
- Cielo Breeze Max Mini Split Thermostat with WiFi, SKU: BM101WA
- Installation Kit • 3/4" x 6' Electrical Whip – SKU: 84138 • 60A Non-Fused Disconnect – SKU: 83335 • Surge Protector – SKU: ICM517 • CPS Charging Adapter – SKU: 87-AD87 • Telescoping Wall Sleeve – SKU: NFP-75
- Additional line set options with a coupler • Coupler - DIYCOUPLER-1412K75C • 16 ft – DIY16-1412-O • 25 ft – DIY25-1412-O • 35 ft – DIY35-1412C-O • 50 ft – DIY50-1412C-O
Warranty
MRCOOL offers a 7-Year Compressor / 5-Year Parts limited warranty when installed according to manufacturer guidelines.
36,000 BTU MRCOOL 5 Zone Condenser - R454B
MRCOOL 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
The MRCOOL® DIY-MULTI5-36HP230D-O is a powerful and flexible 5th Generation Multi-Zone Mini-Split Condenser designed for up to five zones of customized climate control. Ideal for homeowners seeking an energy-efficient, easy-to-install system, this 36,000 BTU unit supports MRCOOL® DIY® Quick Connect® air handlers and features industry-leading convenience and performance.
Key Features
- 5-Zone Capacity: Supports up to five indoor units with varied BTU ratings for personalized room-by-room temperature control.
- Smart Technology: Works with the SmartHVAC app, Amazon Alexa, and Google Assistant for remote monitoring and control.
- Energy Efficiency: High SEER2 and HSPF2 ratings provide year-round comfort while reducing utility costs.
- Durable Design: Features a corrosion-resistant Gold Fin coating for long-term outdoor reliability.
Performance Specifications
- Model: DIY-MULTI5-36HP230D-O
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 36,000 BTU
- Heating Capacity: 36,000 BTU
- SEER2: Up to 23
- HSPF2: Up to 8.5
Additional Features
- Low Ambient Cooling: Operates in temperatures as low as 5°F for cooling and -13°F for heating
- Quiet Operation: Low noise output for minimal disturbance indoors and outdoors
- Auto Restart: Automatically resumes settings after a power outage
- Multiple Fan Speeds: Adjustable airflow settings for increased comfort
The MRCOOL 36k DIY 5th Generation Multi-Zone Condenser is the ideal solution for homeowners who want full control, top-tier performance, and hassle-free installation. With smart features and powerful climate management across five zones, it delivers dependable comfort all year long.
MRCOOL 18,000 BTU DIY 5th Generation OuttaSight Single Zone One-Way Ceiling Cassette Mini Split Air Handler - R454B | 230V
MRCOOL® DIY® Series 5th Gen OuttaSight® 18K BTU 230V One-Way Ceiling Cassette
The MRCOOL® DIY® Series 5th Generation OuttaSight® 18K BTU One-Way Ceiling Cassette offers powerful and efficient climate control in a sleek, ceiling-mounted design. Perfect for larger rooms and open spaces, this unit provides discreet heating and cooling while saving valuable floor and wall space.
Key Features:
- 18,000 BTU Capacity: Ideal for medium to large-sized spaces requiring robust temperature regulation.
- One-Way Ceiling Cassette Design: Integrates seamlessly into ceilings for a clean, low-profile look.
- DIY® Quick Connect® Installation: Enables fast, professional-quality setup without the need for specialized HVAC tools.
- Smart Home Compatibility: Works with MRCOOL® SmartHVAC app, Amazon Alexa, and Google Assistant for convenient voice and app control.
- Quiet Operation: Engineered to operate with minimal noise, suitable for offices, living rooms, and other quiet environments.
- Directional Airflow: One-way air distribution ensures efficient and targeted comfort.
- Energy-Efficient Inverter Technology: Provides consistent temperature control while minimizing energy consumption.
- Durable and Reliable: Constructed with corrosion-resistant materials for long-lasting performance.
Specifications:
- Model: DIYCASSETTE18HP-230D25-O
- BTU Rating: 18,000 BTU
- Voltage: 230V
- Mounting Style: One-Way Ceiling Cassette
- Refrigerant: R-454B
- Compatible Line Sets: MRCOOL® Pre-charged Quick Connect® line sets
Combining high performance, ease of installation, and smart features, the MRCOOL® OuttaSight® 18K BTU One-Way Ceiling Cassette is an excellent choice for efficient, unobtrusive climate control in larger spaces.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers with 3/4" Whip
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
MRCOOL DIY 75' Line Set Couplers - 1/4" x 1/2"
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIYCOUPLER-1412K50 as a means of coupling two of MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. To prevent the need of extending the control wire included with the air handler, the coupler also includes 50' of control wire to replace what comes with MRCOOL DIY air handlers. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation. Please note that this line set will only function with MRCOOL's DIY multi zone line of products and will not function with any other brand or system series.
16ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY16-1412-O 16ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL DIY16-1412-O is a 16-foot pre-charged lineset designed for MRCOOL® DIY 18K indoor units using R-454B refrigerant. This lineset offers an easy-to-install, reliable solution that eliminates the need for vacuum pumps or refrigerant charging.
Featuring Quick Connect fittings, it allows for quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing provide excellent thermal performance and long-lasting durability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended service life
This lineset is an ideal choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing an efficient and hassle-free installation.
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.

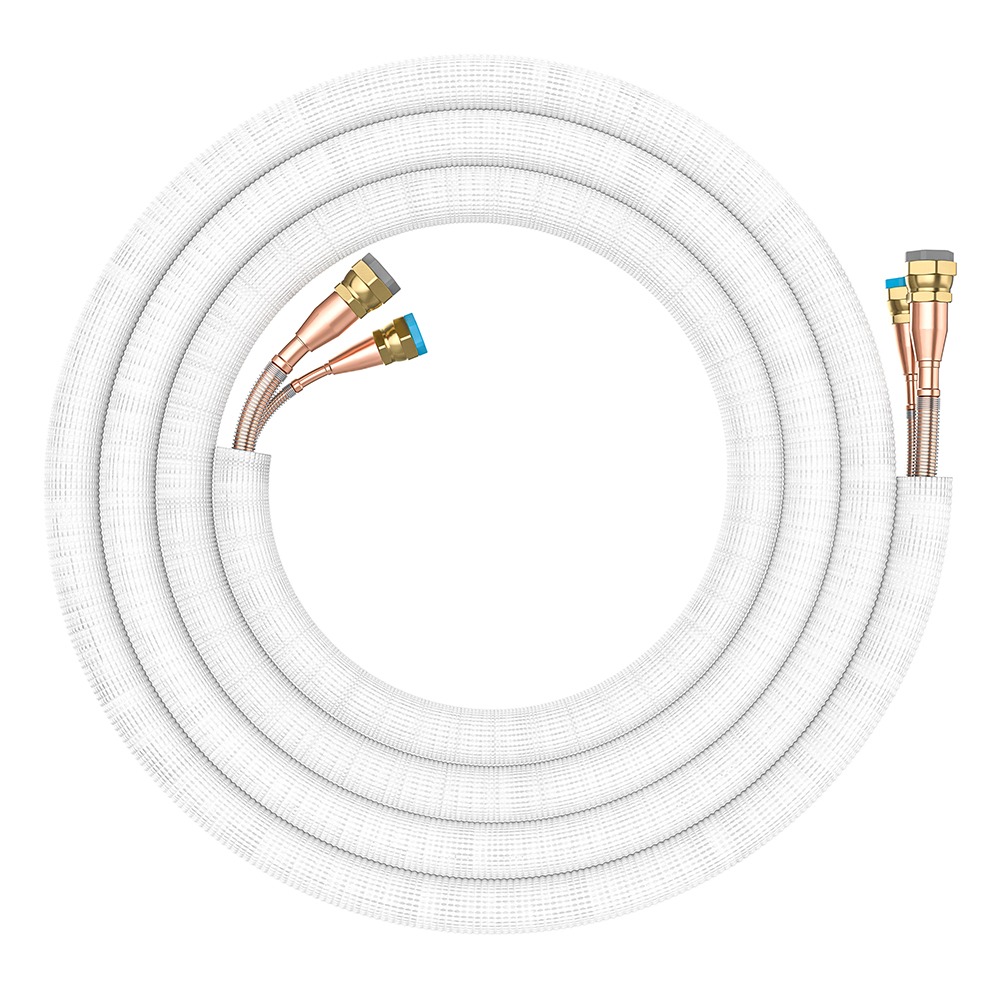

25ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY25-1412-O 25ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL® DIY25-1412-O is a 25-foot pre-charged lineset designed for MRCOOL DIY 18K indoor units using R-454B refrigerant. This lineset offers a convenient and reliable solution that eliminates the need for vacuum pumps or refrigerant charging during installation.
Featuring Quick Connect fittings, it enables quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing ensure optimal thermal efficiency and long-lasting performance.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for easy installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended lifespan
This lineset is an excellent choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing hassle-free installation and dependable operation.
50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor w/ DIY Pro Cable - R454B
DIY50-1412C-O 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY50-1412C-O is a 50-foot pre-charged lineset featuring an integrated DIY Pro Cable, designed for MRCOOL® DIY 9K, 12K, and 18K indoor units using R-454B refrigerant. This comprehensive lineset simplifies installation by combining refrigerant lines and power wiring into a single, easy-to-install assembly.
Equipped with patented Quick Connect® fittings, it allows for a secure, tool-free connection between indoor and outdoor units. The integrated DIY Pro Cable streamlines wiring, enhancing installation efficiency and safety. High-quality insulation and corrosion-resistant materials ensure long-lasting durability and optimal energy performance.
Key Features:
- Length: 50 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL® DIY 9K, 12K, and 18K indoor units
- Connection Type: Quick Connect® fittings for easy, tool-free installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
- Insulation: High-quality insulation to improve energy efficiency and prevent condensation
- Durability: Built with corrosion-resistant materials for extended service life
This 50-foot lineset with integrated DIY Pro Cable is ideal for longer installations, providing a reliable and convenient solution for MRCOOL® DIY mini-split systems.
Customer Questions
Why Choose MRCOOL?
MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
