Today's Hours 8am - 11pm estMRCOOL 36,000 BTU DIY 5th Gen 23 SEER2 3 Zone Wall Mount Mini Split Heat Pump System R454B | 230V 9 + 9 + 12
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI5-36HP / DIY-09-HP-WMAH-230-2 / DIY-12-HP-WMAH-230
ID
206747
Your Low Price $5,465.89
Product Features
- Sized At 36,000 BTU For 1500 Sq Ft
- Ideal For Rooms Up To 1500 Sq Ft
- High-Efficiency 23 SEER2 Performance
- Comfort Designed For Everyday Use
- Great For Remodels And Retrofits
- High-Ambient Cooling Up To 122°F

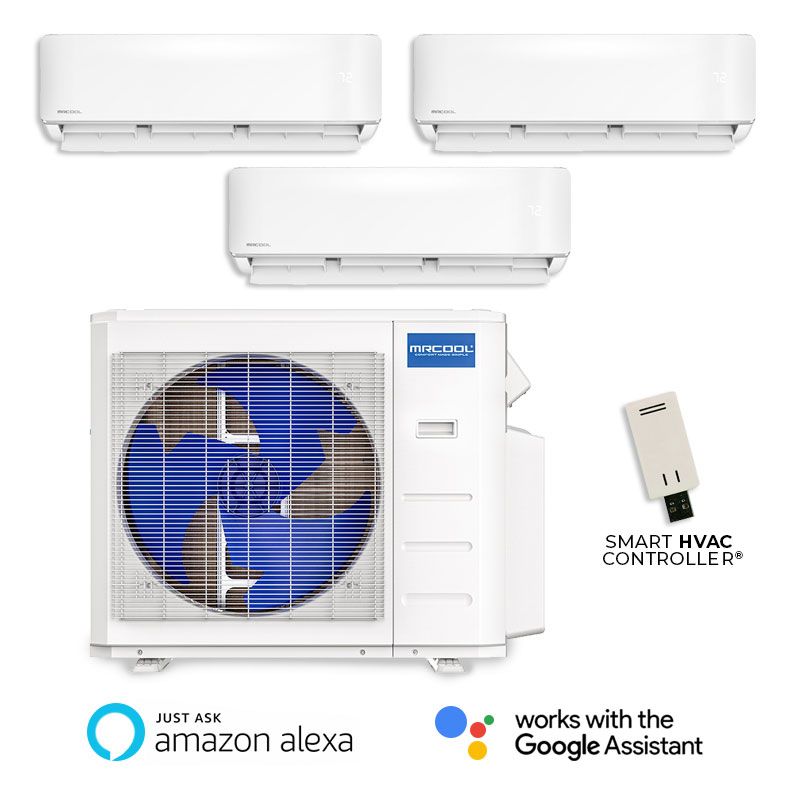

MRCOOL DIY 5th Gen 36,000 BTU Tri Zone Ductless Heat Pump Split System (9,000 + 9,000 + 12,000 BTU)
The MRCOOL DIY 5th Gen 36,000 BTU Tri Zone Ductless Heat Pump Split System is the perfect solution for multi-room comfort in homes with medium to large spaces. This configuration includes two 9,000 BTU indoor units and one 12,000 BTU indoor unit, making it ideal for pairing two mid-sized rooms with a larger area like a living room or master bedroom. With smart controls, energy-efficient performance, and no need for professional installation, this system makes advanced comfort accessible to every homeowner.
System Features
- Balanced Multi-Room Coverage: Two 9,000 BTU units handle mid-sized rooms, while a 12,000 BTU unit conditions a larger space.
- 36,000 BTU Outdoor Condenser: Inverter compressor provides consistent, high-efficiency performance across all zones.
- Smart Control Options: Compatible with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant for voice and remote access.
- High Efficiency: SEER2-rated for optimized energy savings without sacrificing comfort.
- Quiet Operation: Designed for minimal noise, making it ideal for use in bedrooms, studies, or shared spaces.
- Corrosion-Resistant Protection: Gold Fin coating protects the outdoor condenser from weather and environmental wear.
- Leak Detection Feature: System includes integrated leak detection to protect refrigerant levels and ensure safety.
Year-Round Comfort Control
This tri-zone system offers cooling capabilities down to 5 F and heating as low as -13 F. With individual temperature control for each room, you can create personalized comfort zones and reduce energy usage in areas not in use.
Whats Included
- One 36,000 BTU Outdoor Condenser
- Two 9,000 BTU Wall-Mounted Indoor Units
- One 12,000 BTU Wall-Mounted Indoor Unit
- Three Wireless Remote Controls
- Smart Controller Module
- Full DIY Installation Kit and Manuals
Why Choose the MRCOOL 5th Gen 9K + 9K + 12K Tri Zone System?
The MRCOOL DIY 5th Gen Tri Zone System with two 9,000 BTU and one 12,000 BTU indoor units is an excellent choice for homeowners who need reliable, efficient comfort across medium to large rooms. With easy installation, smart features, and year-round performance, its built for comfort and convenience. These bundles require the purchase of a Pre-Charged Line Set, these are not included.
36,000 BTU MRCOOL 5 Zone Condenser - R454B
MRCOOL 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
The MRCOOL® DIY-MULTI5-36HP230D-O is a powerful and flexible 5th Generation Multi-Zone Mini-Split Condenser designed for up to five zones of customized climate control. Ideal for homeowners seeking an energy-efficient, easy-to-install system, this 36,000 BTU unit supports MRCOOL® DIY® Quick Connect® air handlers and features industry-leading convenience and performance.
Key Features
- 5-Zone Capacity: Supports up to five indoor units with varied BTU ratings for personalized room-by-room temperature control.
- Smart Technology: Works with the SmartHVAC app, Amazon Alexa, and Google Assistant for remote monitoring and control.
- Energy Efficiency: High SEER2 and HSPF2 ratings provide year-round comfort while reducing utility costs.
- Durable Design: Features a corrosion-resistant Gold Fin coating for long-term outdoor reliability.
Performance Specifications
- Model: DIY-MULTI5-36HP230D-O
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 36,000 BTU
- Heating Capacity: 36,000 BTU
- SEER2: Up to 23
- HSPF2: Up to 8.5
Additional Features
- Low Ambient Cooling: Operates in temperatures as low as 5°F for cooling and -13°F for heating
- Quiet Operation: Low noise output for minimal disturbance indoors and outdoors
- Auto Restart: Automatically resumes settings after a power outage
- Multiple Fan Speeds: Adjustable airflow settings for increased comfort
The MRCOOL 36k DIY 5th Generation Multi-Zone Condenser is the ideal solution for homeowners who want full control, top-tier performance, and hassle-free installation. With smart features and powerful climate management across five zones, it delivers dependable comfort all year long.
9,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler 230v
The MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler offers powerful, energy-efficient heating and cooling for small to mid-sized spaces. Engineered with the do-it-yourself homeowner in mind, this 230-volt unit combines superior performance with simplified installation and smart home compatibility. It is part of the advanced 5th Generation MRCOOL® DIY lineup, bringing comfort, control, and convenience to your fingertips.
Key Features:
- High Efficiency: Delivers a strong balance of comfort and energy savings with high SEER2 performance ratings.
- Easy DIY Installation
- Smart Home Ready: Works with the MRCOOL® SmartHVAC app and is compatible with Amazon Alexa and Google Assistant.
- Quiet Operation: Minimizes indoor noise for enhanced comfort and relaxation.
- Auto Restart: Automatically resumes operation after a power outage with previous settings restored.
- Multiple Modes: Offers heating, cooling, dehumidification, and fan-only modes to adapt to varying climate needs.
- Compact Wall-Mount Design: Saves space while delivering effective room-wide air circulation.
Specifications:
- Model Number: DIY-09-HP-WMAH-230D25-O
- Voltage: 230V
- Cooling/Heating Capacity: 9,000 BTU
- Refrigerant Type: R-454B
- Mounting: Wall-mounted
Whether you're upgrading your comfort system or outfitting a new area, the MRCOOL 9k DIY Mini-Split Air Handler provides reliable performance, energy efficiency, and easy installation. It’s the perfect choice for those looking for comfort without the hassle of traditional HVAC setups.
12,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler 230v
The MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler is an efficient, user-friendly solution for heating and cooling medium-sized spaces. With a capacity of 12,000 BTU and a 230-volt configuration, this air handler is part of the innovative MRCOOL® DIY series, designed for fast installation without specialized HVAC tools or training. Ideal for homeowners looking to upgrade their comfort without added labor costs, it combines smart technology with dependable performance.
Key Features:
- DIY-Friendly Installation
- Efficient Performance: High SEER2 efficiency helps reduce energy bills while maintaining reliable comfort all year long.
- Smart Controls: Compatible with the MRCOOL® SmartHVAC app, as well as Alexa and Google Assistant, for remote operation and scheduling.
- Low Noise Operation: Engineered for quiet performance, making it perfect for bedrooms, offices, and other quiet zones.
- Versatile Functionality: Supports cooling, heating, fan-only, and dehumidification modes to suit any seasonal need.
- Auto Restart and Sleep Mode: Automatically resumes with previous settings after power outages and adjusts temperatures overnight for energy savings.
- Wall-Mounted Design: Sleek and compact unit fits easily into most interior layouts without taking up valuable floor space.
Specifications:
- Model Number: DIY-12-HP-WMAH-230D25-O
- Voltage: 230V
- Cooling/Heating Capacity: 12,000 BTU
- Refrigerant: R-454B
- Mounting Style: Wall-mounted
The MRCOOL® 12k DIY Air Handler delivers the performance and features you need to efficiently control your home’s climate without the complexity of traditional HVAC systems. Ideal for bedrooms, living rooms, and other medium-sized spaces, this unit blends technology, convenience, and cost-saving efficiency into one smart package.
25ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454BÂ
DIY25-1438-O 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY25-1438-O is a 25-foot pre-charged line set engineered for easy installation with MRCOOL DIY 6K, 9K, and 12K indoor units that utilize R-454B refrigerant. This lineset offers an efficient, mess-free solution for both homeowners and professionals who want a clean and secure HVAC connection without the need for vacuum pumps or refrigerant handling.
Equipped with Quick Connect fittings, this lineset simplifies the installation process by providing a tight, reliable seal—eliminating the need for special tools. The pre-charged refrigerant lines and durable insulation deliver excellent performance and energy efficiency in a wide range of settings.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Works with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation for optimized thermal performance and protection
- Construction: Built with corrosion-resistant materials for long-term durability
Perfect for extending the installation distance or replacing an existing lineset, the DIY25-1438-O provides a flexible and user-friendly option for MRCOOL® mini-split systems. Its DIY design ensures users can achieve a professional-grade setup with minimal effort and maximum confidence.
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
35ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY35-1438C-O 35ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY35-1438C-O is a 35-foot pre-charged lineset with an integrated DIY Pro Cable, engineered for compatibility with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This advanced installation component simplifies setup while delivering excellent durability, refrigerant integrity, and safety.
Equipped with patented Quick Connect fittings, this lineset allows for a hassle-free, tool-free connection between indoor and outdoor units. The added DIY Pro Cable enhances reliability and safety during installation, offering pre-attached wiring in a single bundled solution. It's the ideal choice for extended installations requiring both performance and convenience.
Key Features:
- Length: 35 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with R-454B refrigerant for environmentally responsible performance
- Compatibility: Designed for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy and secure installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and increased safety
- Insulation: High-quality insulation ensures efficiency and protection from condensation
- Durability: Built with corrosion-resistant materials for long-term use
The DIY35-1438C-O is the perfect solution for users seeking an extended lineset with built-in power and communication cabling. Its all-in-one design streamlines setup and supports reliable performance in MRCOOL® DIY mini-split systems.
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
16ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY16-1438-O is a pre-charged 16-foot line set designed specifically for MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. It is engineered to simplify installation for homeowners and HVAC professionals alike, while maintaining efficiency and refrigerant integrity without the need for vacuuming or charging.
This lineset offers a flexible, durable, and easy-to-connect solution that supports the revolutionary MRCOOL DIY ductless mini-split systems. The Quick Connect® fittings provide a secure and tight seal, ensuring a hassle-free installation and long-term reliability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with environmentally friendly R-454B
- Compatibility: Designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for fast, tool-free installation
- Insulation: High-quality insulation for efficient thermal performance and reduced energy loss
- Corrosion Resistance: Durable construction resists environmental wear and corrosion
This lineset is ideal for both first-time installations and replacements, ensuring optimal performance and easy integration with compatible MRCOOL® systems. With a 100% DIY approach, this component allows users to complete professional-level installations without special tools or equipment.
50ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454BÂ Â
DIY50-1438C-O 50ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY50-1438C-O is a 50-foot pre-charged lineset with an integrated DIY Pro Cable, designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This extended-length lineset offers a convenient, all-in-one solution for efficient and reliable HVAC installations.
Featuring patented Quick Connect fittings, this lineset enables a quick and secure connection between indoor and outdoor units without specialized tools. The integrated DIY Pro Cable streamlines wiring and enhances installation safety, making it ideal for professional-quality DIY projects.
Key Features:
- Length: 50 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Suitable for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy, tool-free installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
- Insulation: High-quality insulation to improve energy efficiency and prevent condensation
- Durability: Constructed with corrosion-resistant materials for lasting performance
This 50-foot lineset with integrated Pro Cable is perfect for installations requiring longer reach and professional-grade convenience. It ensures reliable operation and an efficient setup for MRCOOL® DIY mini-split systems.
