Today's Hours 8am - 11pm est36,000 BTU Stealth DIYCOOL 23 SEER2 4 Zone Wall Mount Mini Split Heat Pump System R454B | 230V 6 + 6 + 6 + 6
Required Fields *
Out of stock
By
Stealth
Out of stock
Model
EZ-36Z-M4B / EZ-06W-MB-4
ID
227879

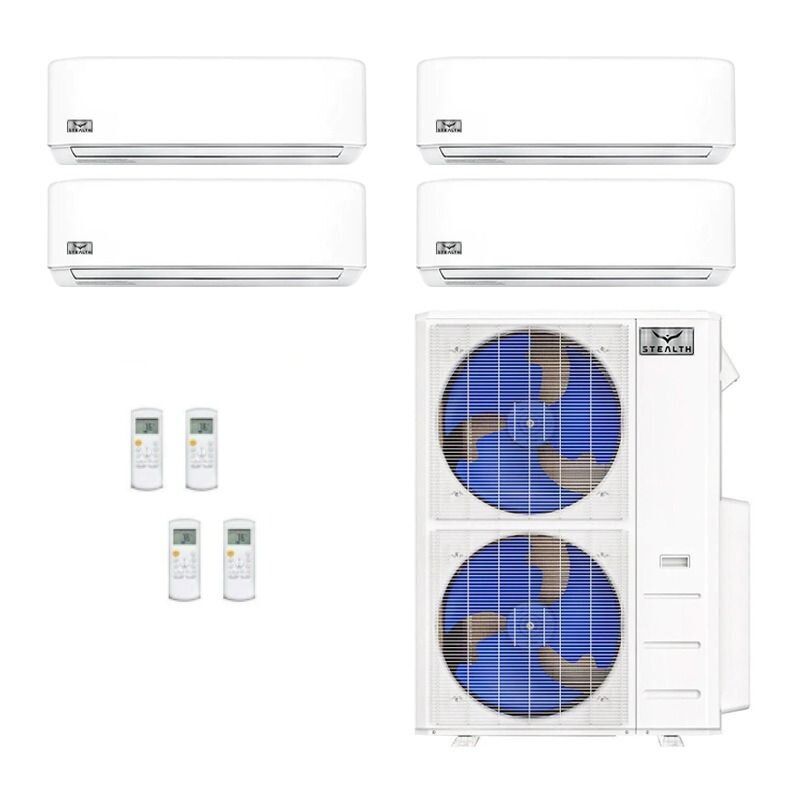

36,000 BTU Stealth DIYCOOL 23 SEER2 4-Zone Wall Mount Mini Split Heat Pump System R454B | 230V 6 + 6 + 6 + 6
Designed for flexible, whole-home style comfort, this 4-zone mini split is ideal for bedrooms, home offices, and small open layouts. It covers up to 1,600 sq ft, delivering quiet, efficient heating and cooling that's easy to manage room-by-room.
Key Features
- Covers up to 1,600 sq ft
- 23 SEER2 efficiency
- Quiet operation for bedrooms, offices, and shared spaces
- Four 6,000 BTU indoor heads for uniform room coverage
Feature Highlights
Efficiency
This 23 SEER2 system helps keep energy use in check while maintaining steady heating and cooling across multiple rooms. Inverter-driven technology adjusts output to match demand, so the system runs longer at lower speeds and avoids hard starts.
Quiet Operation
Engineered for low-noise indoor performance, this system is ideal for bedrooms, home offices, and shared living areas. Quieter operation helps you stay comfortable without drawing attention to the equipment itself.
Right-Sized Power
The 36,000 BTU outdoor unit paired with four 6,000 BTU indoor heads provides balanced coverage for up to 1,600 sq ft. This uniform configuration perfectly suits multiple smaller bedrooms or compact living spaces.
What's Included
- Outdoor condenser 36,000 BTU, 23 SEER2
- Four wall-mount 6,000 BTU indoor air handlers (up to 400 sq ft each)
- Wireless remote control
- Installation manual
Recommended Accessories
- Refrigerant line set
- Wall bracket or condenser pad
- Wi-Fi adapter for smart control
- Drain hose and insulation kit
Warranty
This Stealth DIYCOOL system includes up to a 5 year parts and 7 year compressor warranty from the date of initial installation for the original registrant.
36,000 BTU Stealth Multi Zone Condeser-R454B
Enjoy flexible, year-round comfort with a powerful multi-zone outdoor condenser designed for customizable zoning, efficient performance, and simplified DIY installation.
The Stealth DIYCOOL Series 36,000 BTU Multi-Zone Mini Split Heat Pump Condenser delivers efficient heating and cooling for spaces up to 2,000 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this inverter-driven outdoor condenser provides reliable performance with up to 23 SEER2 efficiency. Designed to support multiple compatible indoor air handlers, it allows homeowners to create customized comfort zones throughout different rooms while maintaining quiet, energy-efficient operation throughout the year.
Key Features
- Multi-Zone Comfort Control — Supports multiple compatible indoor units, allowing personalized temperature control across different rooms and living areas.
- High-Efficiency Inverter Performance — Delivers 36,000 BTU of heating and cooling capacity with up to 23 SEER2 efficiency for dependable comfort and improved energy savings.
- DIY-Friendly Installation — Designed with Stealth DIYCOOL technology to help simplify installation and provide a more convenient setup experience.
- Quiet, Reliable Operation — Engineered with advanced inverter technology and durable outdoor construction for smooth, low-noise performance in varying weather conditions.
- Smart Comfort Compatibility — Works with compatible Stealth DIYCOOL indoor units featuring convenient functions such as Wi-Fi control, sleep mode, auto swing, and louver position memory.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
21" Wall Mount Bracket
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
- 21" Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Stealth 25' EZ Connect DIYCOOL Line Set for 9k, 12k, & 18k Air Handlers - R454B
25 ft Stealth DIYCOOL Multi‑Zone Pre‑Charged Line Set – R454B
The Stealth EZ-25-1412-MB is a 25-foot EZ Connect DIYCOOL line set designed for use with 9,000, 12,000, and 18,000 BTU Stealth air handlers. Compatible with R454B refrigerant, this line set ensures easy and efficient installation of multi-zone mini-split systems.
Its durable construction and pre-flared connections simplify setup, making it ideal for DIYCOOL installations while maintaining reliable performance and system efficiency.
Key Features
- Length: 25 feet
- Compatible with 9k, 12k, and 18k BTU DIYCOOL air handlers
- Supports eco-friendly R454B refrigerant
- EZ Connect design for simplified installation
- Durable, pre-flared connections for reliable performance
- Ideal for DIYCOOL or professional multi-zone mini-split setups
Note: Line set only; requires compatible indoor and outdoor units for full operation.
The Stealth brand is formerly know as Infinity Living.
Stealth 50’ EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B
50 ft Stealth DIYCOOL Multi‑Zone Pre‑Charged Line Set – R454B
The Stealth EZ-50-1412-MB is a 50-foot EZ Connect DIYCOOL line set designed for use with 9,000, 12,000, and 18,000 BTU Stealth air handlers. Compatible with R454B refrigerant, this line set ensures efficient and reliable installation of multi-zone mini-split systems.
Its durable construction and pre-flared connections simplify setup, making it ideal for DIYCOOL or professional installations while maintaining system efficiency.
Key Features
- Length: 50 feet
- Compatible with 9k, 12k, and 18k BTU DIYCOOL air handlers
- Supports eco-friendly R454B refrigerant
- EZ Connect design for simplified installation
- Durable, pre-flared connections for reliable performance
- Ideal for DIYCOOL or professional multi-zone mini-split setups
Note: Line set only; requires compatible indoor and outdoor units for full operation.
The Stealth brand is formerly know as Infinity Living.
Stealth 35’ DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B
35 ft Stealth DIYCOOL Multi‑Zone Pre‑Charged Line Set – R454B
The Stealth EZ-35-1412-MB is a 35-foot EZ Connect DIYCOOL line set designed for use with 9,000, 12,000, and 18,000 BTU Stealth air handlers. Compatible with R454B refrigerant, this line set ensures efficient and reliable installation of multi-zone mini-split systems.
Its durable construction and pre-flared connections simplify setup, making it ideal for DIYCOOL or professional installations while maintaining system efficiency.
Key Features
- Length: 35 feet
- Compatible with 9k, 12k, and 18k BTU DIYCOOL air handlers
- Supports eco-friendly R454B refrigerant
- EZ Connect design for simplified installation
- Durable, pre-flared connections for reliable performance
- Ideal for DIYCOOL or professional multi-zone mini-split setups
Note: Line set only; requires compatible indoor and outdoor units for full operation.
The Stealth brand is formerly know as Infinity Living.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
