Goodman 4 Ton 14.5 SEER2 Air Conditioner Split System - R410A Single Stage - Multi-Positional

Goodman 4 Ton 14.5 SEER2 Air Conditioner Split System - R410A Single Stage - Multi-Positional

Required Fields *

Customer reviews
Rating:
4.8 out of 5
Out of stock
By

Goodman

Out of stock

Model

GSXH504810 / AMST48DU1400

ID

138747

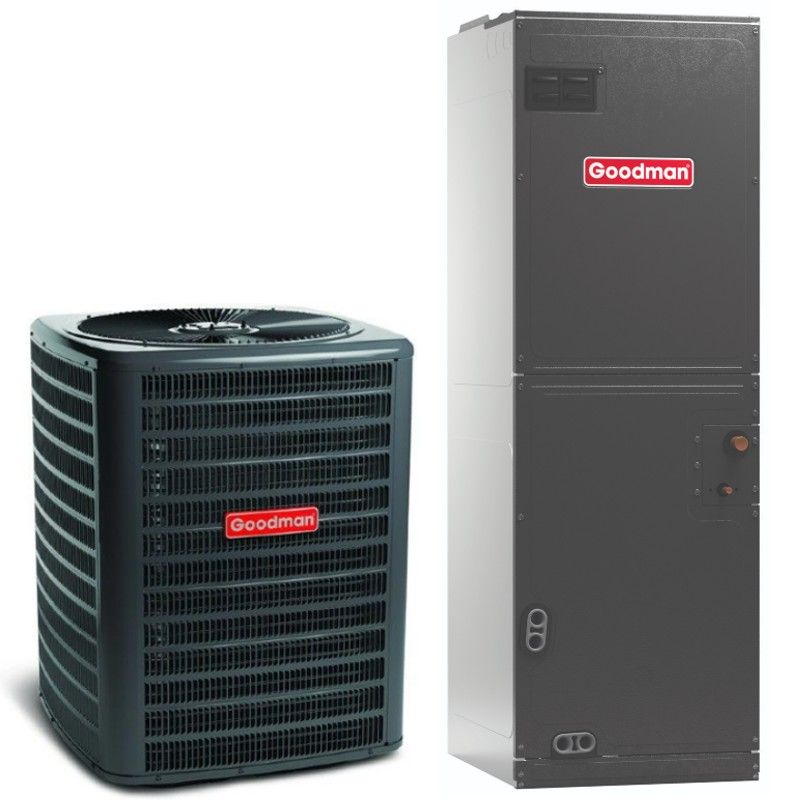

The Goodman 4.0 Ton 14.5 SEER Air Conditioner Split System Bundle kit is a complete and efficient cooling system for homes or small commercial spaces. It includes both the outdoor air conditioner unit and the indoor air handler unit, uses eco-friendly refrigerant, and has a 10-year warranty. With its reliable performance and energy efficiency, this bundle kit is a great choice for anyone looking for an affordable and effective air conditioning solution.

More Information
4 Ton Multi-Positional Goodman Air Handler - Open Box
FeatureSpec
SKUAMST48DU1400
Weight (in lbs)155
Brand/ManufacturerGoodman
Replaces

ASPT48B14

ARUF48B14

UPC663051630765
Blower MotorMulti-Speed Direct Drive ECM Motor
Maximum CFM1875
Horsepower0.75 HP
Electric Backup Heat Capabilities (Optional)3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
RefrigerantR410A
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208/240v 1 Phase 60Hz
Max Breaker Size15 Amps
Min. Breaker Size8.6 Amps
Tonnage4 Ton
Connection3/4" FPT
Height53 7/16"
Width24 5/8"
Depth21"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING ,
Goodman 4 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R410A Single Stage
FeatureSpec
SKUGSXH504810
Weight (in lbs)282
Brand/ManufacturerGoodman
ReplacesGSX160481
UPC663051628977
Cooling BTU48,000
Blower MotorSingle Speed PSC Motor
Decibel Level (dBA)73
Horsepower0.25 HP
RefrigerantR410A
SEER2 (Efficiency)15.2
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line7/8"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size45 Amps
Min. Breaker Size26.2 Amps
Tonnage4 Ton
ConnectionSweat
Height36 1/2"
Width35 1/2"
Depth35 1/2"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. So far, so good
    Price
    80%
    Service
    100%
    Quality
    100%
    I wanted a reliable, middle-of-the-road HVAC package with proven technology that was 1) easy to work on, 2) did NOT require proprietary replacement parts and 3) did NOT employ cutting-edge (expensive) technology. Goodman (now owned by Daiken) filled the bill for me, altho there were other brands that might have worked just as well. Delivery was reasonably prompt. The truck driver used a motorized pallet to move everything from the curb to my rear patio without a complaint (I tipped him anyway). Installation took the better part of 2 days, with some misc. clean up & adjustments later. Now that summer has arrived with 90+ degree temps, the a/c unit seems to be performing fine. It's also quiet. I did have some thermostat issues that required rewiring on a follow up visit, but otherwise no complaints. The furnace review will have to wait for roughly 5 more months when it gets cold again. HVACDirect was very good to work with, and I would buy from them again. Goodman's warranty registration process was a tad complex, but eventually I got it done & accepted via email. Oh, and the bottom line was $9,000 LESS than my highest bid for a comparable Lennox system from a local HVAC dealer. Not too shabby, but it did take the better part of April & May (including my self-education) to make it all happen, so you can't be in a big hurry when managing a project like this from scratch all by yourself. It also helps if the weather cooperates. Otherwise, you won't have the luxury of all that time to get the job done. My advice: if your HVAC equipment is fairly old (15-20+ years) & living on borrowed time, BE PROACTIVE. REPLACE IT ALL WHEN YOUR LOCAL WEATHER IS MILD & you'll save a TON of money -- thousands of dollars -- compared to waiting until it suddenly dies and you're forced to pay up big time for an immediate local replacement. Being proactive is by far the best and cheapest way to do it. You can thank me later.

    Review by

    Posted on

  2. 4 ton unit, inside and out good job boys 1 day install
    Quality
    100%
    Price
    80%
    Service
    100%
    we haven't had it long enough to really evaluate the thing.. We live in South Texas where summer stats in mid February and I tell you it's 85deg+ right now.. Right now I have "NO" complaints what-so-ever.. Fine job boys!!!!!!!!!!!!!!

    Review by

    Posted on

  3. Everything went great. Thanks
    Price
    100%
    Service
    100%
    Quality
    100%
    Everything went great. Thanks

    Review by

    Posted on

  4. Comfortable
    Price
    100%
    Service
    100%
    Quality
    100%
    Everything is fast and efficient as well as quieter than what we had before. Before, our ac would chug away 24/7 just to struggle to keep the house at 77, now it comes on for a few minutes periodically and the house is staying cool and pleasant. With the weird weather this year, we have also used the heater. Same story. Runs for a few minutes and keeps everything comfortable and me happy!

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
