Customer Reviews

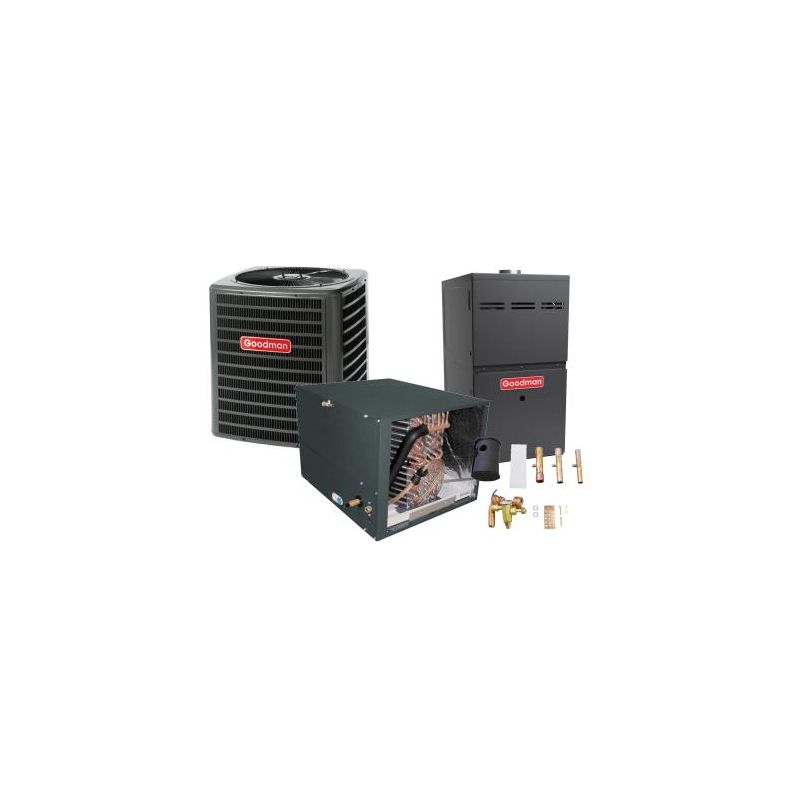

4 Ton 14 SEER 80% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

By

Goodman

In Stock - Ready to Ship
Model

GSZ140481 / CHPF4860D6 / GMEC801205DN / TX5N4

ID

44466

Rating:
100 % of 100
Availability: In Stock - Ready to Ship
Goodman Manufacturing

Authorized Goodman Dealer

AHRI Certified

AHRI Number:203867860

Your Low Price $5,072.00
Bread Checkout

Free Shipping

Requires: Metal Flue Vent Piping

Required Fields *

Customize 4 Ton 14 SEER 80% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal
120,000 BTU 80% AFUE Multi-Speed Two Stage Goodman Gas Furnace - Upflow/Horizontal (Ships in 1-2 Weeks)   + $1,747.00
4 Ton 14 SEER Goodman Heat Pump (In Stock - Ready to Ship)   + $2,605.00
4 to 5 Ton 24.5" Goodman Horizontal Evaporator Cased Coil (In Stock - Ready to Ship)   + $621.00
Goodman 3.5 to 5 Ton TXV Kit - R-410A (In Stock - Ready to Ship)   + $99.00
4 Ton 14 SEER 80% AFUE 120,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

$5,072.00

Accessories for this product

Description

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMEC801205DN is a perfect choice for heating.

Not intended for use in mobile homes.

120,000 BTU 80% AFUE Multi-Speed Two Stage Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

The GMEC801205DN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GMEC801205DN two-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GMEC801205DN.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 120,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

120,000 BTU

The GMEC801205DN Goodman gas furnace is 120,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 96,000 BTU’s (120,000 X 80% AFUE) per hour. In ideal climate conditions, this 120,000 BTU furnace is usually used to heat a medium-sized house.

80% Efficiency Rating

The GMEC801205DN Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting. Please note that this furnace does not comply with California Low NOx or Ultra-Low NOx regulations. If you have any questions, please contact us.

Two Stage Furnace

The GMEC801205DN Goodman gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn’t have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the GMEC801205DN will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.

Natural Gas or LP Furnace

From the factory, the GMEC801205DN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

Multi-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GMEC801205DN utilizes a multi-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman GMEC series furnaces come with a 10-year parts, 10-year unit replacement, and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GMEC801205DN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

4 Ton 14 SEER Goodman Heat Pump

OVERVIEW

The Goodman GSZ140481 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140481 is manufactured with high-quality materials to provide a superior comfort in your home.

QUICK FACTS

  • Ideal size to cover a larger house in ideal climates
  • 4 ton, 14 SEER heat pump condenser
  • Low sound output
  • Fully charged for up to 15’ of line set
  • Factory-installed bi-flow filter drier
4 ton

The Goodman GSZ140481 heat pump has a capacity of 4 tons. In an ideal climate, this tonnage will normally cover up to a larger house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14 SEER

At 14 SEER, the GSZ140481 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Warranty

The GSZ140481 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GSZ140481 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GSZ140481 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140481 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

4 to 5 Ton 24.5" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF4860D6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF4860D6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 4 to 5 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
4 to 5 Tons

At an output of 4 to 5 tons, the Goodman CHPF4860D6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF4860D6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF4860D6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Goodman 3.5 to 5 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX5N4, you can be assured that your three-and-a-half to five ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX5N4 is a good start.

Product Compatible With
  • Goodman GSX130421 Air Conditioners
  • Goodman GSX130481 Air Conditioners
  • Goodman GSX130601 Air Conditioners
  • Goodman GSX130611 Air Conditioners
  • Goodman DSXC160481 Air Conditioners
  • Goodman DSXC160601 Air Conditioners
  • Goodman DSXC160481 Air Conditioners
  • Goodman DSXC160601 Air Conditioners
  • Goodman GSZ130421 Heat Pumps
  • Goodman GSZ130481 Heat Pumps
  • Goodman GSZ130601 Heat Pumps
  • Goodman SSZ140421 Heat Pumps
  • Goodman SSZ140481 Heat Pumps
  • Goodman SSZ140601 Heat Pumps
  • Goodman SSZ160421 Heat Pumps
  • Goodman SSZ160481 Heat Pumps
  • Goodman SSZ160601 Heat Pumps
  • Goodman DSZC160481 Heat Pumps
  • Goodman DSZC160601 Heat Pumps
  • Goodman DSZC180481 Heat Pumps
  • Goodman DSZC180601 Heat Pumps
  • Goodman CAPF3642*6 Evaporator Coils
  • Goodman CAUF3642*6 Evaporator Coils
  • Goodman CHPF3642B6 Evaporator Coils
  • Goodman CSCF3642N6 Evaporator Coils

Product Specifications

More Information
120,000 BTU 80% AFUE Multi-Speed Two Stage Goodman Gas Furnace - Upflow/Horizontal
SKU GMEC801205DN
Weight (in lbs) 118.000000
Exhaust Flue Requirement Metal
Brand/Manufacturer Goodman
Furnace Efficiency / AFUE 80%
Heating BTU 120,000
Blower Motor Multi Speed - ECM
Maximum CFM 2000
Configuration Upflow/Horizontal
Exhaust Pipe Metal
Electrical 115 V. 1 Phase 60 Hz
Burner Stages Two
Fuel Type Gas
Height 33 3/8"
Width 24.5"
Depth 28"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
4 Ton 14 SEER Goodman Heat Pump
SKU GSZ140481
Weight (in lbs) 275.000000
Brand/Manufacturer Goodman
Replaces GSZ140491
Cooling BTU 46,000
Heating BTU 47,000
Decibel Level (dBA) 74
Energy Star Yes
Refrigerant R410A
SEER (Efficiency) 14
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208 / 230 V. 1 Phase 60 Hz
Max Breaker Size 40 amps
Min. Breaker Size 26.4 amps
Tonnage 4 Ton
Valve Type Sweat
Number of Doors 0
Height 38.25"
Width 35.5"
Depth 35.5"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
4 to 5 Ton 24.5" Goodman Horizontal Evaporator Cased Coil
SKU CHPF4860D6
Weight (in lbs) 77.000000
Brand/Manufacturer Goodman
Configuration Horizontal
Refrigerant R410A or R22
Liquid Line 3/8"
Suction Line 7/8"
Tonnage 4 Ton to 5 Ton
Style A-Coil
Height 24.5"
Width 26"
Depth 21.125"
Warranty 10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Goodman 3.5 to 5 Ton TXV Kit - R-410A
SKU TX5N4
Weight (in lbs) 2.500000
Brand/Manufacturer Goodman
Refrigerant R410A
Safety Information PROPOSITION 65 WARNING
