In stock

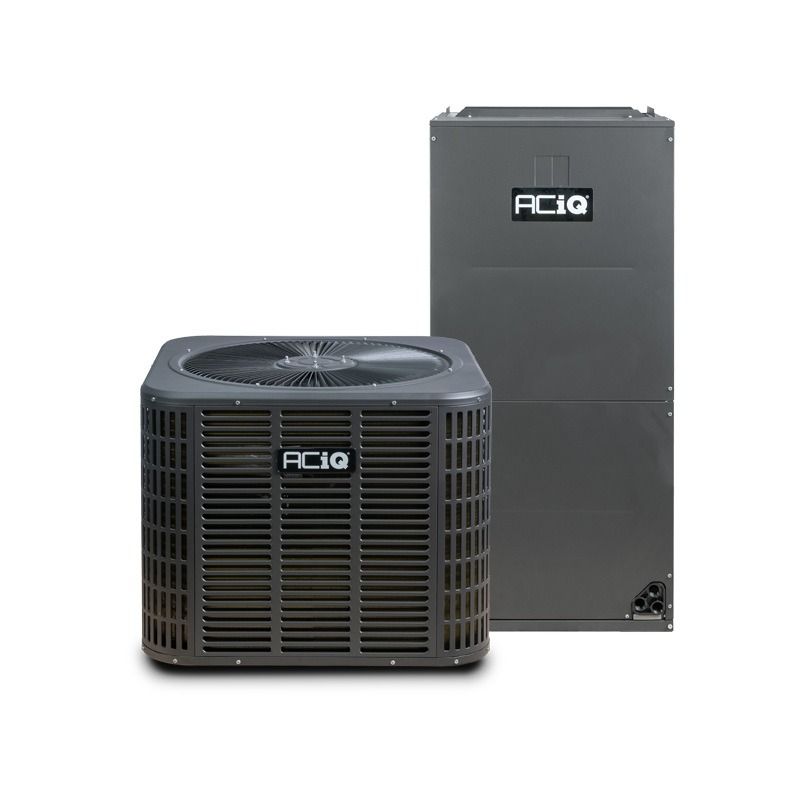

With tons of extra features and a great price, an ACiQ inverter heat pump split system is the perfect choice for all of your heating and cooling needs for any time of year.

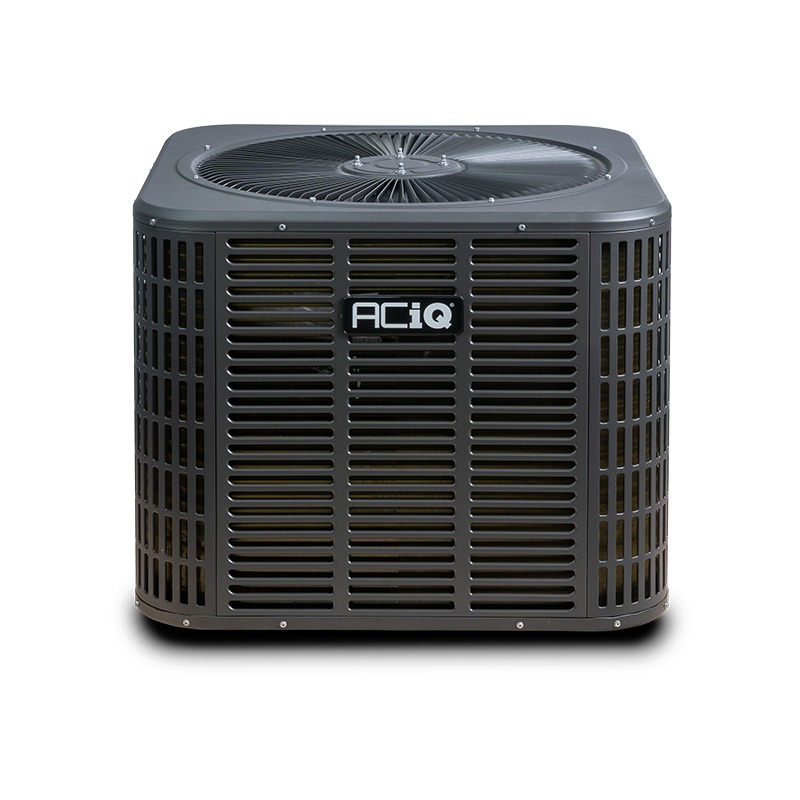

The ACiQ-48TD-HP is a 4-ton heat pump condenser engineered to provide optimal comfort year-round. With its advanced inverter technology and high SEER rating, this system ensures efficient heating and cooling, making it an excellent choice for homeowners seeking reliability and performance.
The ACiQ ACiQ-48TD-HP heat pump condenser has an output of 4 tons, generally enough to heat and cool a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

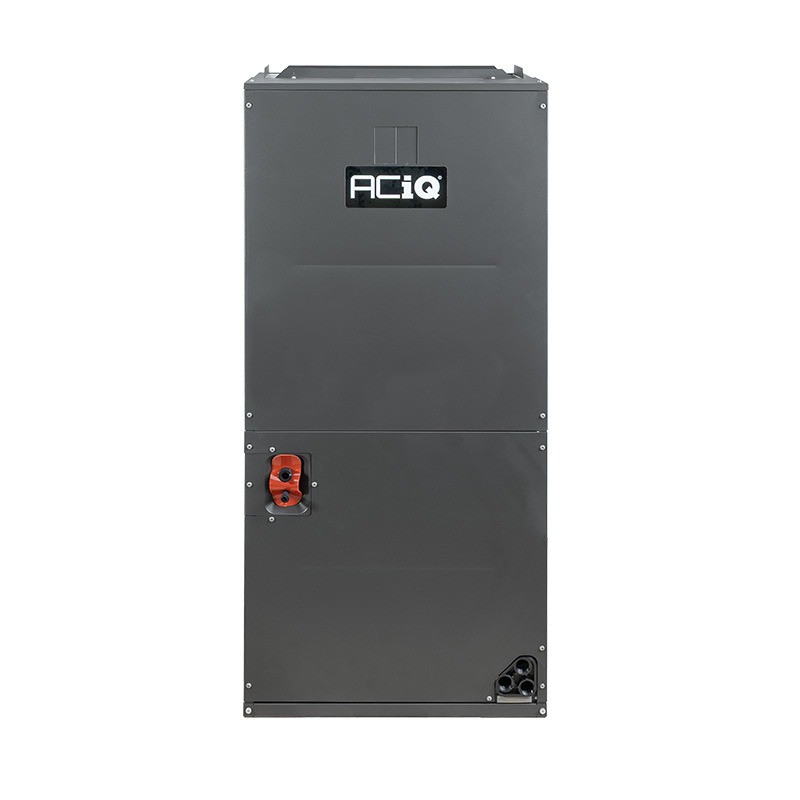

With its efficient multi-speed blower motor, the ACiQ-48TD-AH is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.
The ACiQ-48TD-AH air handler is rated for an output of 4 tons. While the unit does require a condenser to function, heat kits may be installed in the air handler to provide supplemental electric heating, which can be used as a backup heat option for a heat pump setup.
To make a more versatile unit, ACiQ designed the ACiQ-48TD-AH to easily be installed in an upflow, downflow, or horizontal left/right position. For durability, the ACiQ-48TD-AH air handler is designed with an extremely strong outer casing to protect the unit.

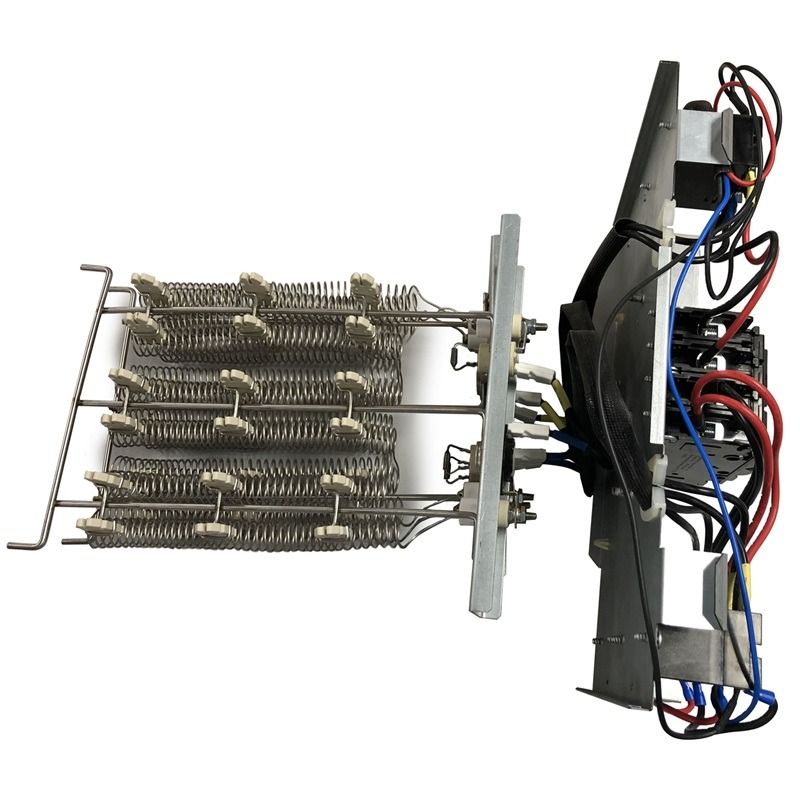

The EAH-20TD is a 20kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
The EAH-15TD is a 15kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
The EAH-10TD is a 10kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
The EAH-05TD is a 5kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
If it's getting a little loud for your taste, you can use the app to adjust the volume.
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
ÂEnsure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.
Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation reduces energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.

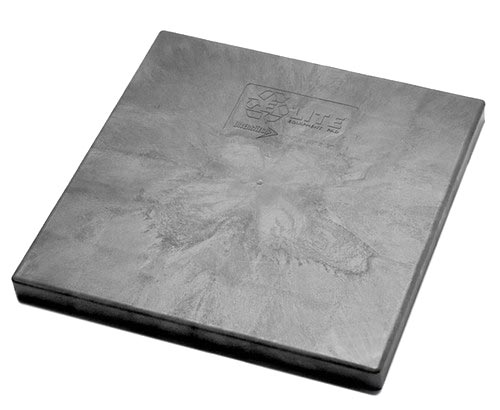

E Lite is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
All sales of this product are final and are non-refundable.
This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
All sales of this product are final and are non-refundable.
Heat pump risers provide a sturdy and stable solution for adding elevation to a heat pump in colder climates to keep the heat pump above average snow levels. The one-piece, heavy duty plastic unit is manufactured with thick wall sections and generous reinforcements are employed in the most effective areas, yielding a strong yet lightweight structure.
ACiQ 4 Ton 18 SEER2 High Efficiency Central Heat Pump Condenser - R454B Inverter | |
---|---|
SKU | ACIQ-48TD-HP |
Refrigerant Charge | 141.09 oz. |
Weight (in lbs) | 220.000000 |
AHRI Certificate Number | 217006583 |
Brand/Manufacturer | ACiQ |
Product Features | Inverter, Two Stage Condenser, Variable Speed Condenser |
HSPF2 | 8.5 |
Cooling BTU | 47000 BTU |
Heating BTU | 47,000 BTU |
Decibel Level (dBA) | 70 Decibels |
Refrigerant | R454B |
SEER2 (Efficiency) | 18 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Liquid Valve Size | 3/8" |
Suction Valve Size | 3/4" |
Electrical | 208/230V, 1 Phase, 60 Hz |
Phase | Single Phase |
Max Breaker Size | 60A |
Min. Breaker Size | 35A |
Tonnage | 4 Ton |
Zone Compatibility | Single Zone |
Height | 33-3/16" |
Width | 29-1/8" |
Depth | 29-1/8" |
Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ 4 Ton Multi-Positional Inverter Central Air Handler - 21" Width - R454B | |
SKU | ACIQ-48TD-AH |
Weight (in lbs) | 190.000000 |
AHRI Certificate Number | 217006583 |
Brand/Manufacturer | ACiQ |
HSPF2 | 8.5 |
Cooling BTU | 47000 BTU |
Heating BTU | 47000 BTU |
Maximum CFM | 1600 |
Decibel Level (dBA) | 60 Decibels |
Horsepower | 1/2 HP |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
Configuration | Multi-Positional |
Refrigerant | R454B |
Filter Size | 20" x 22" |
SEER2 (Efficiency) | 18 |
Condenser Stages | Variable Speed |
Liquid Valve Size | 3/8" |
Suction Valve Size | 3/4" |
Electrical | 208/230V, 1 Phase, 60 Hz |
Phase | Single Phase |
Tonnage | 4 Ton |
Connection | Flare to Braze |
Height | 56" |
Width | 21" |
Depth | 24-1/2" |
Warranty | 7 Years Parts with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ 20 Kilowatt Electric Heat Kit | |
SKU | EAH-20TD |
Weight (in lbs) | 10.000000 |
Brand/Manufacturer | ACiQ |
Heating BTU | 68,200 BTU |
Electric Heat | 20 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ 15 Kilowatt Electric Heat Kit | |
SKU | EAH-15TD |
Weight (in lbs) | 10.000000 |
Brand/Manufacturer | ACiQ |
Heating BTU | 51,150 BTU |
Electric Heat | 15 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ 10 Kilowatt Electric Heat Kit | |
SKU | EAH-10TD |
Weight (in lbs) | 8.000000 |
Brand/Manufacturer | ACiQ |
Heating BTU | 34,100 BTU |
Electric Heat | 10 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ 5 Kilowatt Electric Heat Kit | |
SKU | EAH-05TD |
Weight (in lbs) | 8.000000 |
Brand/Manufacturer | ACiQ |
Heating BTU | 16,200 BTU |
Electric Heat | 5 Kilowatts |
Electrical | 208/230v 1 Phase 60 Hz |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Ecobee Smart WiFi Thermostat with Alexa | |
SKU | EB-STATE6P-01 |
Weight (in lbs) | 0.500000 |
Brand/Manufacturer | ecobee |
Product Features | Programmable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool |
Energy Star | Yes |
Warranty | 3 years |
Resources | |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ Single-Stage Dual Powered Non-Programmable Thermostat | |
SKU | STN701 |
Weight (in lbs) | 1.000000 |
Brand/Manufacturer | ACiQ |
Product Features | Heat Pump Capable, Non Programmable, 1 Heat, 1 Cool |
Resources | Braeburn Brochure
Braeburn User Guide |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ 7-Day Programmable Thermostat with WiFi | |
SKU | STN855W |
Weight (in lbs) | 1.000000 |
Brand/Manufacturer | ACiQ |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible | |
SKU | TL04-1 |
Weight (in lbs) | 0.700000 |
Brand/Manufacturer | ACiQ |
Product Features | Heat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Installation Kit for Condensers - Accessory Set | |
SKU | MSK001 |
Weight (in lbs) | 15.000000 |
Brand/Manufacturer | Online Supply |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
SKU | LS38783850 |
Weight (in lbs) | 30.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Suction Line Insulation Thickness | 3/4" |
Length | 50 feet |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
SKU | LS38783830 |
Weight (in lbs) | 30.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Suction Line Insulation Thickness | 3/8" |
Length | 30 feet |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
E Lite Equipment Pad 32" x 32" x 3" | |
SKU | EL3232-3 |
Weight (in lbs) | 20.000000 |
Brand/Manufacturer | Online Supply |
Height | 3" |
Width | 30" |
Depth | 30" |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Wall Mount Bracket for Condensers 48" | |
SKU | ACB-48 |
Weight (in lbs) | 9.200000 |
Brand/Manufacturer | Online Supply |
Length | 30" |
Height | 16" |
Width | 2" |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
6 Inch Heat Pump Risers (4 pack) | |
SKU | HPR-6 |
Weight (in lbs) | 1.000000 |
Brand/Manufacturer | Online Supply |
Height | 6" |
Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
