Today's Hours 8am - 11pm est4-Zone Universal (4H/2C) Zoning Package
Required Fields *
Ships in 2-3 Business Days
By
iO HVAC Controls
In stock
Model
ZP6-ESP-KIT / 4-D-Z1
ID
84733
Your Low Price $2,079.21
Please enter your room sizes to narrow your results
iO HVAC Controls zoning packages provide everything needed to help control heating and cooling systems in residential and commercial applications. With easy installation and use, airflow control has never been easier to handle.
The ZP6-ESP-KIT is designed to fit a four-to-six zone, single stage heating and cooling system. It has a built in static pressure control, meaning you will no longer need a bypass damper when a 3-wire, 24V damper is used. 18-gauge wire is used for all equipment connections so there are no mix-ups and less to handle. With an operating temperature range of -40° to 150°, this zone panel is durable and can handle many different types of environments.
The Z1 Series consists of control damper assemblies designed to solve over-heating and over-cool situations in your home. They work separately from the ducting equipment, only monitoring the airflow of the over-conditioned area.
Features

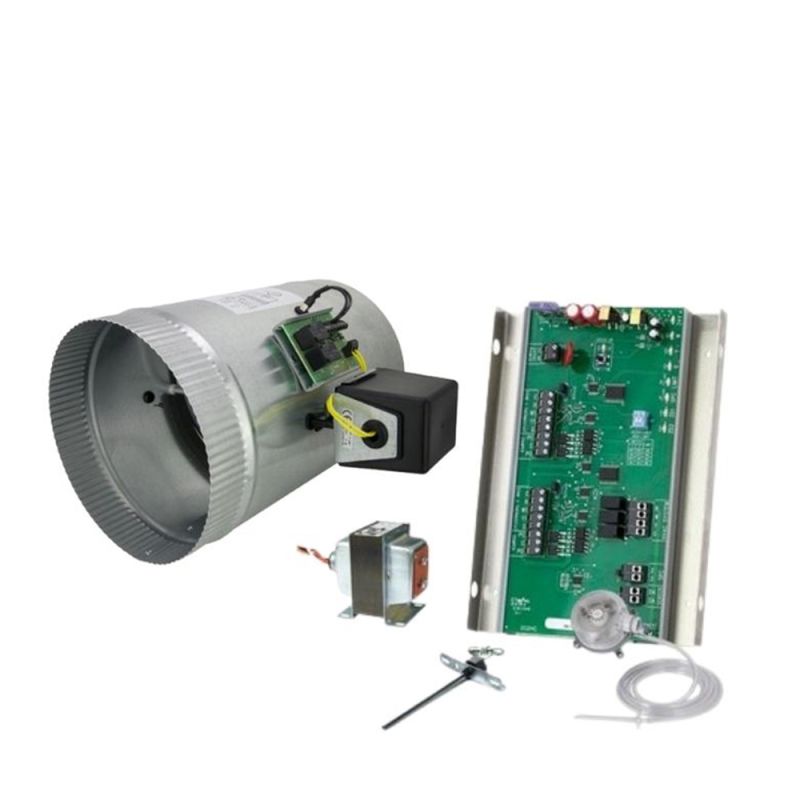

- Items Included: Panel, Static Pressure Sensor, 2 Duct Temperature Sensors, 75va Transformer, Choice of Damper Assembly for Each Zone
- Adjustable high and low balance point
- Works with 2 or 3 wire zone dampers
- Twenty minute time share option
- (De)Humidification pass-throughs
- Optional night thermostat
- Purge cycle option
- Pre-wired controls
- Stand-alone control of single room or multiple
- LED status indicator
- Minimum position adjustment
- Auto changeover
- 24VAC, 10VA, 2-wire power open/spring close
- 24-gauge steel spiral shell, aluminum shaft, nylon bushings, blade seals.
- Warranty: 10 Years for Zone Panel Kit, 5 Years for Dampers
9" Two-Position Zone One Damper Assembly
iO HVAC Controls Z1 Series Zone One is a control damper assembly designed to solve over-heating and over-cool situations in your home. This Zone One damper works separately from the ducting equipment, only monitoring the airflow of the over-conditioned area.
Features
- Control panel not required
- Pre-wired controls
- Stand-alone control of single room or multiple
- LED status indicator
- Minimum position adjustment
- Auto changeover
- 24VAC, 10VA, 2-wire power open/spring close
- 24-gauge steel spiral shell, aluminum shaft, nylon bushings, blade seals.
As iO HVAC Controls stands behind their products, they offer a 5 year warranty.
6-Zone Universal (4H/2C) Zone Panel Kit
The ZP6-ESP-KIT is a 4-to-6-zone, two position forced air zone control panel. The panel can be used with single state, multi-stage, heat pump or dual fuel equipment. There are many control options as well as 4 stages of heating and 2 stages of cooling with this incredibly flexible application zone panel.
Features
- Items Included: Panel, Static Pressure Sensor, 2 Duct Temperature Sensors, and 75va Transformer
- Adjustable high and low balance point
- Works with 2 or 3 wire zone dampers
- Twenty minute time share option
- (De)Humidification pass-throughs
- Optional night thermostat
- Purge cycle option
The ZP6-ESP has a built in static pressure control, meaning you will no longer need a bypass damper when a 3-wire, 24V damper is used. 18-gauge wire is used for all equipment connections so there are no mix-ups and less to handle. With an operating temperature range of -40° to 150°, this zone panel is durable and can handle many different types of environments.
As iO HVAC Controls stands behind their products, a 10 year warranty is included.
6" Two-Position Zone One Damper Assembly
iO HVAC Controls Z1 Series Zone One is a control damper assembly designed to solve over-heating and over-cool situations in your home. This Zone One damper works separately from the ducting equipment, only monitoring the airflow of the over-conditioned area.
Features
- Control panel not required
- Pre-wired controls
- Stand-alone control of single room or multiple
- LED status indicator
- Minimum position adjustment
- Auto changeover
- 24VAC, 10VA, 2-wire power open/spring close
- 24-gauge steel spiral shell, aluminum shaft, nylon bushings, blade seals.
As iO HVAC Controls stands behind their products, they offer a 5 year warranty.
12" Two-Position Zone One Damper Assembly
iO HVAC Controls Z1 Series Zone One is a control damper assembly designed to solve over-heating and over-cool situations in your home. This Zone One damper works separately from the ducting equipment, only monitoring the airflow of the over-conditioned area.
Features
- Control panel not required
- Pre-wired controls
- Stand-alone control of single room or multiple
- LED status indicator
- Minimum position adjustment
- Auto changeover
- 24VAC, 10VA, 2-wire power open/spring close
- 24-gauge steel spiral shell, aluminum shaft, nylon bushings, blade seals.
As iO HVAC Controls stands behind their products, they offer a 5 year warranty.
