40,000 BTU 80% AFUE 9-Speed Two Stage Goodman Gas Furnace - Downflow/Horizontal

By

Goodman

Out of stock
Model

GC9C800403AX

ID

111782

Availability: Ships in 5-7 Business Days
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:207254741

People that viewed this product purchased this instead:
44,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
44,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
Rating:
700%
Suggested Retail $1,200.00 Your Low Price Special Price $960.00
SAVE $218.00
SAVE $240.00

Description

OVERVIEW

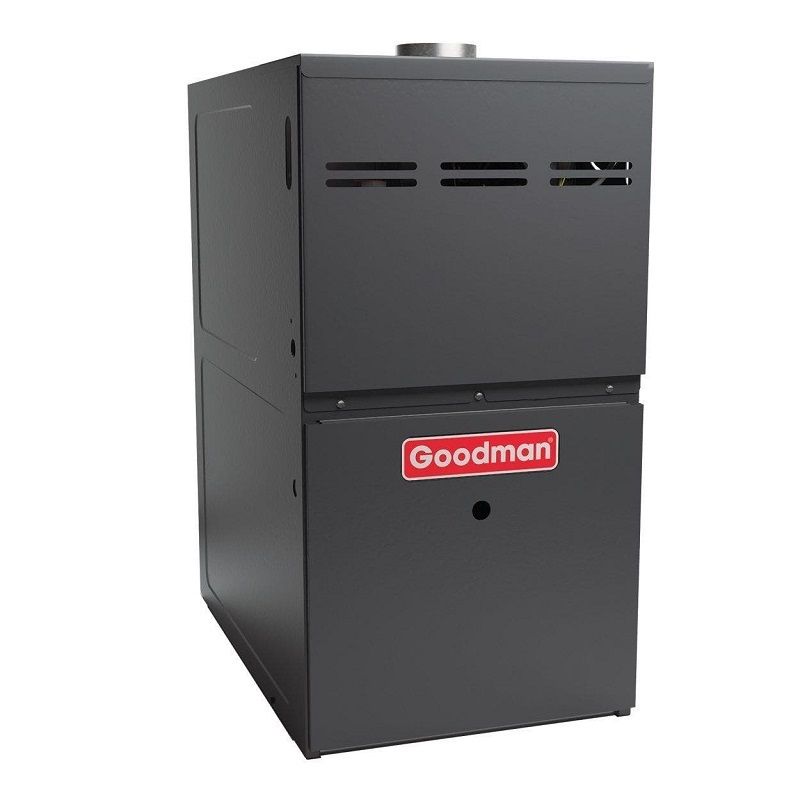

The GC9C800403AX Goodman gas furnace features high-quality construction and efficient operation at a great value. The GC9C800403AX two-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GC9C800403AX.

QUICK FACTS

  • This furnace is ideal to heat a small house (depending on climate)
  • 40,000 BTU 80% efficient natural gas furnace
  • Requires metal flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to an LP furnace with a conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

40,000 BTU

The GC9C800403AX Goodman gas furnace is 40,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 32,000 BTU’s (40,000 X 80% AFUE) per hour. In ideal climate conditions, this 40,000 BTU furnace is usually used to heat a medium house.

80% Efficiency Rating

The GC9C800403AX Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.

Please note that this furnace does comply with California Low NOx regulations.

Two Stage Furnace

The GC9C800403AX Goodman gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn’t have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the GC9C800403AX will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.

Natural Gas or LP Furnace

From the factory, the GC9C800403AX runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GC9C800403AX utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Goodman Furnace Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GM9C800403AN model has a more universal design, which consists of its ability to be installed in both an downflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Product Specifications

More Information
40,000 BTU 80% AFUE 9-Speed Two Stage Goodman Gas Furnace - Downflow/Horizontal
SKUGC9C800403AX
Weight (in lbs)105.000000
AHRI Certificate Number207254741
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementMetal
Brand/ManufacturerGoodman
Product FeaturesLow NOx
Furnace Efficiency / AFUE 80%
Heating BTU40,000
Blower Motor9 Speed - ECM
Maximum CFM1200
ConfigurationDownflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Burner StagesTwo
Fuel TypePropane, Natural Gas
Height33 3/8"
Width14"
Depth28"
WarrantyGC9C80 furnaces have a Lifetime Heat Exchanger and 10 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
