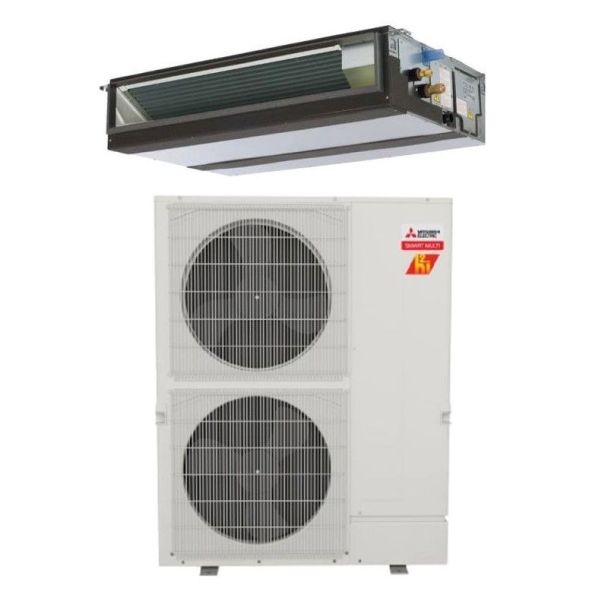

42,000 BTU Mitsubishi P-Series 18.3 SEER2 Single Horizontal-Ducted Mini Split Hyper Heat Pump System - R454B | PUZ-AK42NLHZ / PEAD-AA42NL

PUZ-AK42NLHZ - Outdoor Unit for Heat Pump System

The PUZ-AK42NLHZ is a high-efficiency outdoor unit designed to pair with various Mitsubishi Electric indoor units, offering reliable heating and cooling for commercial applications. This unit is equipped with advanced features for optimal performance in both residential and light commercial environments. Below are the key features and specifications of this outdoor unit:

Key Features:

• Hyper-Heating INVERTER®: Features a variable speed compressor that adjusts according to the heating and cooling needs, enhancing energy efficiency while maintaining consistent performance even in low outdoor temperatures.
• Wide Heating Range: Capable of providing efficient heating in temperatures as low as -13°F, ensuring comfort even in colder climates.
• Fast Restart: The unit quickly resumes operation after a power failure, ensuring minimal disruption in service.
• Pre-Charged Refrigerant: The unit is pre-charged with refrigerant for easy installation and supports pipe lengths of up to 100 feet, reducing setup time and complexity.
• Base Pan Heater: The built-in heater prevents ice buildup on the unit, ensuring reliable operation in freezing conditions.
• Corrosion-Resistant Coating: The Blue Fin coating on the heat exchanger fins provides additional protection against corrosion, making it ideal for coastal or industrial environments.
• High-Pressure Protection: Designed with safety features to protect the unit from high-pressure anomalies, ensuring safe operation during extreme conditions.
• Quiet Operation: The outdoor unit is engineered for minimal noise disruption, maintaining a peaceful environment even during operation.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 43,000 BTU/h
  • Rated Capacity: 42,000 BTU/h
  • Minimum Capacity: 17,200 BTU/h
• Heating Capacity at 47°F:
  • Maximum Capacity: 54,000 BTU/h
  • Rated Capacity: 54,000 BTU/h
  • Minimum Capacity: 16,100 BTU/h
• Heating Capacity at 17°F:
  • Rated Capacity: 33,000 BTU/h
• Heating Capacity at 5°F:
  • Maximum Capacity: 48,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 36,500 BTU/h
• SEER2 Rating: 19.6, reflecting exceptional energy efficiency.
• EER21 Rating: 10.2, demonstrating efficient cooling performance.
• HSPF2 Rating: 8.6, ensuring effective heating performance.
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Indoor-Outdoor Voltage (S2-S3): 12-24 V DC
  • Short-Circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 40 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Dimensions (W x D x H): 41 x 14 x 53 inches (1,041 x 355 x 1,346 mm)
• Weight: 258 lbs (117 kg)

The PUZ-AK42NLHZ is designed for use in a variety of commercial applications and ensures reliable, energy-efficient operation even under challenging conditions. With robust features, easy installation, and exceptional performance, this outdoor unit is ideal for pairing with compatible Mitsubishi Electric indoor units for a complete heating and cooling solution.

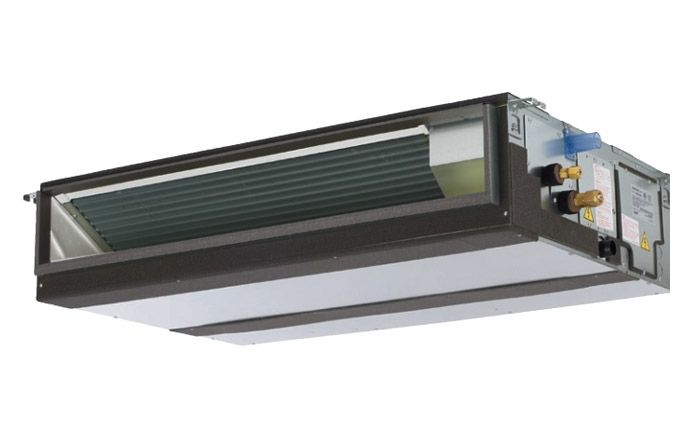

PEAD-AA42NL Air Handler Overview

The PEAD-AA42NL is a high-efficiency air handler designed to provide reliable and effective heating and cooling solutions for residential and light commercial applications. Paired with the PUY-AK42NL outdoor unit, the PEAD-AA42NL delivers exceptional performance while maintaining energy efficiency and quiet operation. This air handler utilizes advanced inverter technology for precise temperature control and optimal comfort throughout the year.

Key Features

• Inverter Technology: The PEAD-AA42NL is equipped with inverter-driven technology that adjusts the compressor speed to match the demand, providing consistent temperature control and energy savings.
• Quiet Operation: The air handler is designed to operate quietly, ensuring minimal noise disruption, making it ideal for use in residential areas and offices.
• Energy Efficiency: With its advanced inverter technology, the PEAD-AA42NL efficiently adjusts to varying cooling and heating demands, leading to lower energy consumption and cost savings over time.
• Compact Design: The PEAD-AA42NL features a compact and space-saving design, making it a versatile choice for installations in homes, small offices, or other spaces where space is limited.
• Durability: Built with high-quality materials, the PEAD-AA42NL is engineered for long-term durability and reliable performance, ensuring that it can withstand continuous operation over time.

Specifications

• Cooling Capacity: 42,000 BTU/h
• Heating Capacity: 42,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 31-1/2" x 11-3/4" x 24-1/8”
• Weight: 45 lbs
• Refrigerant: R410A
• Airflow: 1,350 CFM

Benefits

• Enhanced Comfort: The PEAD-AA42NL offers consistent, reliable temperature control, ensuring a comfortable indoor environment for both heating and cooling needs.
• Energy Savings: With inverter technology, the air handler operates efficiently by adjusting to cooling and heating demands, leading to reduced energy consumption and lower utility costs.
• Quiet Performance: The PEAD-AA42NL is designed to operate quietly, making it an excellent choice for use in residential homes and offices where noise levels need to be kept to a minimum.
• Environmentally Friendly: This air handler uses R410A refrigerant, which has a lower global warming potential compared to older refrigerants, helping to reduce environmental impact while still providing optimal cooling and heating performance.
• Long-Term Durability: Constructed with durable materials, the PEAD-AA42NL is designed for long-lasting performance, providing dependable service over the years with minimal maintenance requirements.

Maintenance

• Easy Maintenance Access: The PEAD-AA42NL is designed for easy servicing, with accessible components for cleaning and maintenance, helping to extend the unit's lifespan.
• Filter Maintenance: The air handler includes washable filters that help maintain indoor air quality by trapping dust, dirt, and allergens. Regular cleaning of the filters ensures smooth airflow and efficient operation.
• Routine Checks: Regular maintenance and routine inspections will ensure that the PEAD-AA42NL continues to operate at peak performance and helps to avoid any unnecessary repairs or downtime.

Applications

• Residential Use: Ideal for single-family homes, apartments, and townhouses, the PEAD-AA42NL offers an efficient and quiet solution for year-round comfort, providing both cooling and heating in one unit.
• Light Commercial Use: The PEAD-AA42NL is also well-suited for light commercial applications such as small offices, retail spaces, or other light-duty commercial areas, providing energy-efficient climate control without compromising on performance.

In summary, the PEAD-AA42NL air handler is a high-performance, energy-efficient solution for cooling and heating needs. Its inverter technology ensures efficient operation, while its compact design allows for versatile installations. The unit provides quiet operation, making it ideal for residential and light commercial environments. With its durable construction, environmentally friendly refrigerant, and easy maintenance features, the PEAD-AA42NL is a reliable and long-lasting choice for optimal comfort and energy savings.

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
