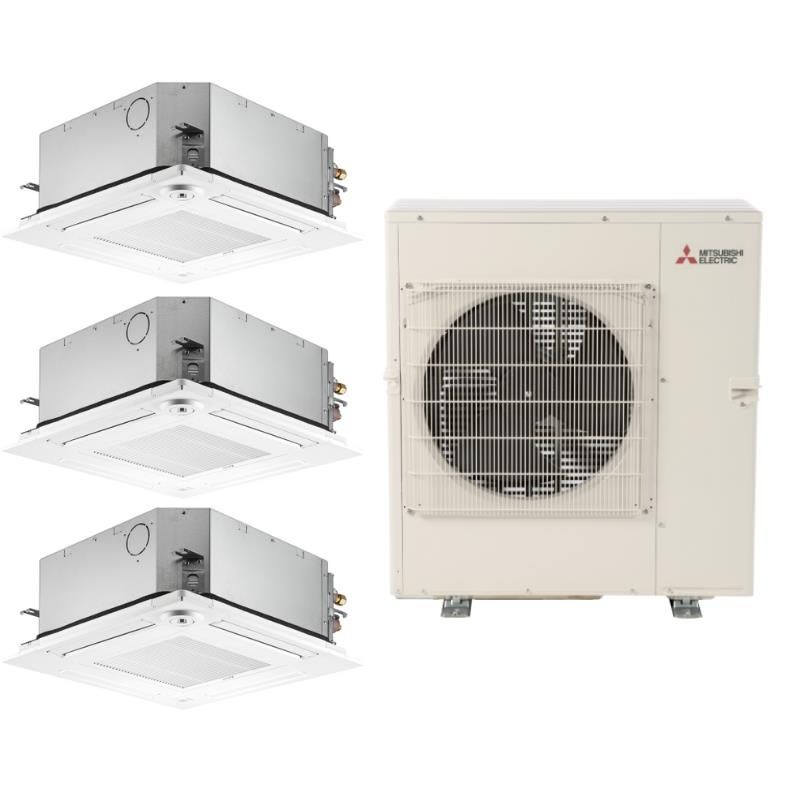

Mitsubishi 42,000 BTU SEZ-AD-Series 19.3 SEER2 3 Zone Ceiling Cassette Mini Split Heat Pump System - R454B | 230V - 12 + 12 + 15
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-5D42NL / 2-SLZ-AF12NL / SLZ-AF15NL
ID
200034
Was $12,082.49
Your Low Price $9,735.75
LOWER PRICE AVAILABLE
Add to Cart for Today's Special Price
Pricing shown instantly in cart. No checkout required.
- days
- Hours
- Minutes
- Seconds
42,000 BTU Mitsubishi P-Series 19.3 SEER2 Three Zone Ceiling Cassette Mini Split Heat Pump System - R454B | 12 + 12 + 15
Designed for larger rooms, this P-Series configuration provides powerful cooling and heating through dual 12k units and a robust 15k cassette.
- Outdoor Unit: MXZ-5D42NL
- Indoor Units: 2 x SLZ-AF12NL, 1 x SLZ-AF15NL
- Total Capacity: 42,000 BTU
- SEER2 Rating: 19.3
- Refrigerant: R454B
- Mounting Type: Ceiling Cassette
This system delivers advanced air distribution and energy efficiency for larger residential or light commercial spaces.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.
| Mitsubishi 42,000 BTU SEZ-AD-Series Multi Zone Mini Split Heat Pump Condenser R454B | 230V | |
|---|---|
| Feature | Spec |
| SKU | MXZ-5D42NL |
| Refrigerant Charge | 6.3 lbs (Pre-charged for 262Ft line set) |
| Weight (in lbs) | 152 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MXZ-5C42NA4-U1 |
| UPC | 605468278246 |
| Cooling BTU | 40,500 BTU |
| Heating BTU | 45,000 BTU |
| Decibel Level (dBA) | 59 dBA |
| Refrigerant | R454B |
| HSPF2 | 9.10 |
| SEER2 (Efficiency) | 19.3 |
| EER2 | 9.3 |
| Liquid Line | 1/4" (5) |
| Suction Line | 3/8" (4); 1/2" (1) |
| Electrical | 230V | 1 Phase | 60Hz |
| Max Breaker Size | 67 Amps |
| Min. Breaker Size | 40 Amps |
| BTU/Tonnage | 42,000 BTU/3.5 Ton |
| Min/Max Outdoor Temp for Heating | 5° - 75° F |
| Min/Max Outdoor Temp for Cooling | 14° - 115° F |
| Zone Compatibility | Multi Zone |
| Height | 31.34" |
| Width | 37.41" |
| Depth | 13" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi 12,000 BTU SEZ-AD-Series Single or Multi Zone Ceiling Cassette Mini Split Air Handler R454B | 230V | |
| Feature | Spec |
| SKU | SLZ-AF12NL |
| Weight (in lbs) | 43 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | SLZ-KF12NA1 |
| UPC | 605468252505 |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 335 Turbo / 335 Hi / 280 Med / 230 Lo |
| Decibel Level (dBA) | 34 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 9-21/32" |
| Width | 22-7/16" |
| Depth | 22-7/16" |
| Warranty | 10 Year Compressor / 7 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi 12,000 BTU SEZ-AD-Series Single or Multi Zone Ceiling Cassette Mini Split Air Handler R454B | 230V | |
| Feature | Spec |
| SKU | SLZ-AF12NL |
| Weight (in lbs) | 43 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | SLZ-KF12NA1 |
| UPC | 605468252505 |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 335 Turbo / 335 Hi / 280 Med / 230 Lo |
| Decibel Level (dBA) | 34 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 9-21/32" |
| Width | 22-7/16" |
| Depth | 22-7/16" |
| Warranty | 10 Year Compressor / 7 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi 15,000 BTU SEZ-AD-Series Single or Multi Zone Ceiling Cassette Mini Split Air Handler R454B | 230V | |
| Feature | Spec |
| SKU | SLZ-AF15NL |
| Weight (in lbs) | 43 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | SLZ-KF15NA1 |
| UPC | 605468491812 |
| Cooling BTU | 15,000 BTU |
| Heating BTU | 15,000 BTU |
| Decibel Level (dBA) | 39 dBA |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V | 1 Phase | 60Hz |
| BTU/Tonnage | 15,000 BTU/1.25 Ton |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.25" |
| Width | 22.44" |
| Depth | 22.44" |
| Warranty | 10 Year Compressor / 7 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi SLP-18FAU Grille for KF Cassettes | |
| Feature | Spec |
| SKU | SLP-18FAU |
| Weight (in lbs) | 5 |
| Brand/Manufacturer | Mitsubishi |
| UPC | 613365387176 |
| Electrical | 12v, supplied from indoor unit |
| Length | 24-19/32" |
| Height | 25/32" |
| Width | 24-19/32" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 50 feet | |
| Feature | Spec |
| SKU | 366402 / CW-144-50 |
| Weight | 45 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 35 feet | |
| Feature | Spec |
| SKU | 366401 / CW-144-35 |
| Weight | 35 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 30 feet | |
| Feature | Spec |
| SKU | 216741 / CW-144-30 |
| Weight | 30 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 25 feet | |
| Feature | Spec |
| SKU | 366400 / CW-144-25 |
| Weight | 25 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 15 feet | |
| Feature | Spec |
| SKU | 201814 / CW-144-15 |
| Weight | 15 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet | |
| Feature | Spec |
| SKU | 366396 / CW-144-50 |
| Weight | 45 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet | |
| Feature | Spec |
| SKU | 366395 / CW-144-35 |
| Weight | 35 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 35' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet | |
| Feature | Spec |
| SKU | 216740 / CW-144-30 |
| Weight | 30 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet | |
| Feature | Spec |
| SKU | 366390 / CW-144-25 |
| Weight | 25 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet | |
| Feature | Spec |
| SKU | 201813 / CW-144-15 |
| Weight (in lbs) | 15 |
| Brand/Manufacturer | Online Supply |
| UPC | na |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet | |
| Feature | Spec |
| SKU | 366396 / CW-144-50 |
| Weight | 45 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet | |
| Feature | Spec |
| SKU | 366395 / CW-144-35 |
| Weight | 35 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 35' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet | |
| Feature | Spec |
| SKU | 216740 / CW-144-30 |
| Weight | 30 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet | |
| Feature | Spec |
| SKU | 366390 / CW-144-25 |
| Weight | 25 |
| Manufacturer | Online Supply |
| UPC | na |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet | |
| Feature | Spec |
| SKU | 201813 / CW-144-15 |
| Weight (in lbs) | 15 |
| Brand/Manufacturer | Online Supply |
| UPC | na |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 30" Wall Mount Bracket for Mini Split Systems | |
| Feature | Spec |
| SKU | ACB-30 |
| Weight | 9.2 |
| Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi MHK2 Wireless Remote Controller | |
| Feature | Spec |
| SKU | MHK2 |
| Weight (in lbs) | 2 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MHK3 |
| UPC | 85267267533 |
| Length | Cable:39-23/64" |
| Height | Thermostat: 4-5/64” | Receiver: 3-3/32” |
| Width | Thermostat: 4-5/64” | Receiver: 1-3/4” |
| Depth | Thermostat: 1-1/16" | Receiver: 39/64” |
| Warranty | 5 Years Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
| Feature | Spec |
| SKU | 87762 / EL1838-3 |
| Weight | 25 |
| Manufacturer | Online Supply |
| UPC | na |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| Feature | Spec |
| SKU | MSK001 |
| Weight | 15 |
| Manufacturer | Online Supply |
| UPC | na |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
WE'RE OPEN — CALL FOR
HELP & SAVINGS!
HELP & SAVINGS!
Get expert help now + extra price discounts available
📞
1-800-397-1392
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
- URL
