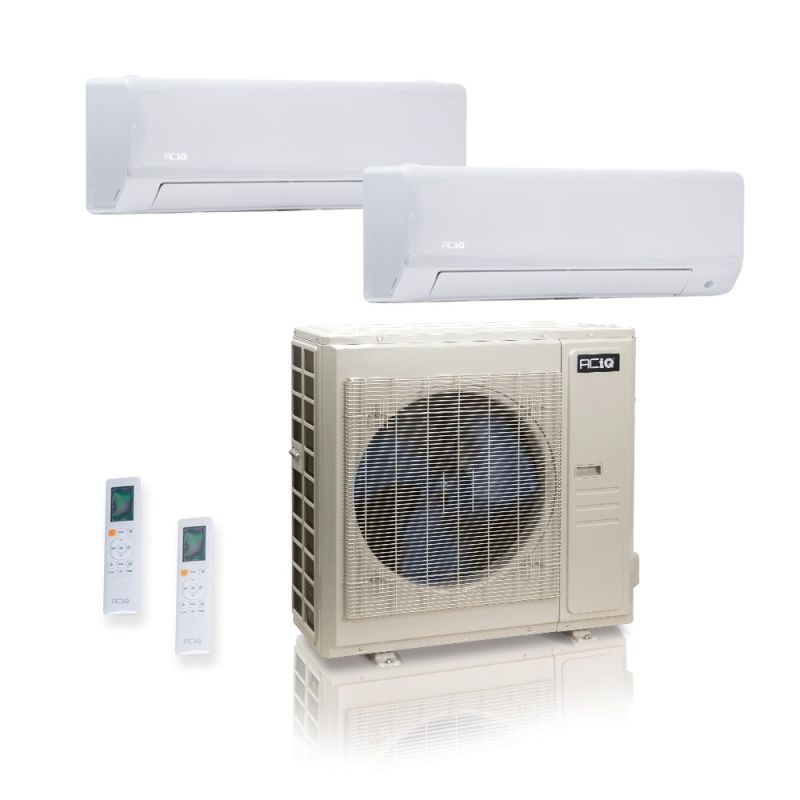

Closed Until Monday48,000 BTU 23.4 SEER2 ACiQ Mini Split System w/ 12k & 36k Wall Mounted Air Handler 12+36 - R410A
Required Fields *
Customer reviews
Out of stock
By
ACiQ
Out of stock
Model
ES-48Z-M5B / ACIQ-12W-HH-MC / ACIQ-36W-HH-MC
ID
212734
This ES-48Z-M5B / ACIQ-12W-HH-MC / ACIQ-36W-HH-MC versatile ACiQ system combines the best of both worlds, featuring a 12K & 36K BTU wall mounted air handler for your main living spaces and a 12K & 36K BTU wall-mounted mini split air handler for areas that may need extra comfort control, such as an addition or bonus room. Ideal for homes with existing ductwork, this setup provides seamless climate control throughout your home while extending cooling and heating to areas not connected to your central duct system. This hybrid solution ensures every room feels just right, delivering targeted comfort where you need it most without the need for extensive renovations.
12k BTU Wall Mounted (400 - 550 sq ft)
ACIQ 12,000 BTU R410A Platinum Multi Zone Air Handler w/ WiFi
Built for smart comfort, this R410A multi-zone air handler uses adaptive control to quietly heat and cool rooms up to 500 sq ft, maintaining your set temperature day and night.
Key Features
- 12,000 BTU multi-zone wall-mounted air handler.
- Compatible with R410A refrigerant systems.
- WiFi-enabled for remote control and smart home integration.
- Energy-efficient operation to reduce utility costs.
- Quiet operation suitable for bedrooms, living areas, and offices.
- Modern wall-mounted design for seamless interior integration.
Feature Highlights
Smart WiFi Control
Connect the air handler to WiFi to monitor and adjust temperature, fan speed, and schedules from anywhere using the ACIQ app, providing convenience and energy savings.
Multi-Zone Comfort
This 12,000 BTU unit works with compatible ACIQ multi-zone outdoor condensers to allow independent temperature control in multiple zones, ensuring personalized comfort throughout your home or office.
Quiet and Efficient Operation
Advanced inverter-driven technology maintains stable indoor temperatures while minimizing energy consumption and reducing operating noise for a comfortable indoor environment.
What’s Included
- 1 x ACIQ 12,000 BTU Platinum Multi-Zone Wall-Mounted Indoor Air Handler
- Wireless Remote Control
- Mounting Plate
- Installation Manual
Recommended Accessories
- Compatible ACIQ Multi-Zone Outdoor Condenser
- Pre-Charged R410A Line Set
- Line Set Covers for exterior protection and clean appearance
- Condensate Drain Line
- Wall Sleeve for safe wall penetration
Warranty
ACIQ provides a manufacturer warranty for the 12,000 BTU Platinum multi-zone air handler when installed with compatible equipment and according to manufacturer guidelines.
36k BTU Wall Mounted (1,000 - 1,500 sq ft)
ACIQ 36,000 BTU R410A Platinum Multi Zone Air Handler w/ WiFi
The ACIQ-36W-HH-MC multi-zone air handler provides precise heating and cooling for rooms up to 1,000 sq ft, using R410A refrigerant for reliable, year-round comfort.
Key Features
- 36,000 BTU wall-mounted air handler for multi-zone mini split systems.
- Compatible with R410A refrigerant.
- WiFi-enabled for remote control and smart home integration.
- Energy-efficient operation designed to lower utility costs.
- Quiet performance suitable for large rooms, open areas, and offices.
- Modern wall-mounted design for seamless home integration.
Feature Highlights
Smart WiFi Control
Connect the air handler to WiFi to monitor and adjust temperature, fan speed, and schedules from anywhere using the ACIQ app. This provides convenience and helps optimize energy efficiency.
Powerful Multi-Zone Comfort
Designed to work with compatible multi-zone outdoor condensers, this 36,000 BTU unit provides precise, customizable comfort for one or multiple zones, ensuring consistent climate control throughout your space.
Quiet and Efficient Operation
Advanced inverter-driven technology ensures stable indoor temperatures with minimal noise, providing comfort without disruption and maximizing energy efficiency.
What’s Included
- 1 x 36,000 BTU ACIQ Platinum Wall-Mounted Indoor Air Handler
- Wireless Remote Control
- Mounting Plate
- Installation Manual
Recommended Accessories
- Compatible ACIQ Multi-Zone Outdoor Condenser
- Pre-Charged Line Set for R410A connection
- Line Set Covers for exterior protection and clean appearance
- Condensate Drain Line
- Wall Sleeve for safe wall penetration
Warranty
ACIQ provides a manufacturer warranty for the Platinum 36,000 BTU multi-zone air handler when installed with compatible equipment and according to manufacturer guidelines.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Customers Say
Buyers report quiet operation, effective temperature control, and smooth overall performance, with several noting easy mounting and zero installation issues, while one first-time installer found the instructions difficult and experienced minor delivery hiccups. Features such as slim cassette units fitting between 16-inch joists, heating and cooling modes with humidify/dehumidify functions, a washable lowering filter, remote and Wi‑Fi control, competitive pricing versus Mitsubishi, and responsive warranty support—including compressor and full outdoor unit replacements—are highlighted alongside generally on-time delivery and secure packaging.
AI Generated from the text of customer reviews
Top reviews
- Very HappyWe are in a northern climate, we utilize the heat pumps for some heat and mostly summer dehumidification. I did 80% of the install myself and was finished by a HVAC contractor who filled the gas. Between price and my work the install was very economical. I now have three compressors and 5 heads in my house and no issues.
Posted on
- When the customer is happy, I'm happyI love the ACIQ brand, it's becoming our exclusive installs. Haven't had a problem yet except for a stuck pressure sensor on this model that took a minute to diagnose on a new unit. But once we got it running and had heat the customer was thrilled and called 3 days later to say it was working great! That's all I need.
Posted on
- Great Mini splitAs far as mini splits go I love the ACiQ mini splits the option for indoor units is great. we have installed several of the slim cassettes they are great for in homes fitting in between 16" joists. the technology on these units is great with the features they offer, heating, cooling, humidify, dehumidify and the filter lowers to be cleaned instead of having to get on a ladder. comes with a remote and Wi-Fi to control on your mobile device. the units are very quiet as well are customers love them. the units are a very good price as well the only other company i know who makes these are Mitsubishi with their units costing a considerable amount more.
Posted on
- Best source for HVAC equipmentJust added two 48K ACiQ split systems to heat my 6,000 sq.ft. warehouse. The folks at HVACDirect were excellent in helping me select the right equipment and took the time to understand what I wanted to accomplish. Pricing was great, and the shipment was prompt. Could have used a stronger pallet to ship the two units; by the time they arrived, the pallet was destroyed, but the units arrived in perfect condition nonetheless. HVACDirect was great to work with, and I would highly recommend them to anyone looking to buy equipment for their home or business.
Posted on
- AwesomeEveryting was well packaged and not damaged. so looking here at what was ordered it shows I ordered the mini condensate pump but it wasn't there. The installer who is a mii split said aomthing about it not being there I went to the local hardward store and pruchased one. guess I should have contacted the company to get my money back on what I didn't get.
Posted on
- 3rd & 4th Aciq System PurchasedJust finished installing the word Aciq system. Customer is thrilled with the performance! Next is the 4th system install at my own home. 2 12K heads for basement & 1 24K head for garage.
Posted on
- Amazing service and warrantyWe ordered a mini split and had an issue with one of the units. I requested an exchange once diagnosed from a local AC professional. HVAC Direct made it easy and sent a replacement. I was extremely impressed with their responsiveness and willingness to help expedite the replacement. Thank you so much!
Posted on
- Exceptional product!This unit, these units, are excellent. They even feel solid and well built. The app is well thought out the controls are extensive, the wall units work well for cool and heat!
The base unit seems to be working smoothly and without issue.
The app could use a little more clarity around adding devices… once I figured it out for mine the rest were easy!Posted on
